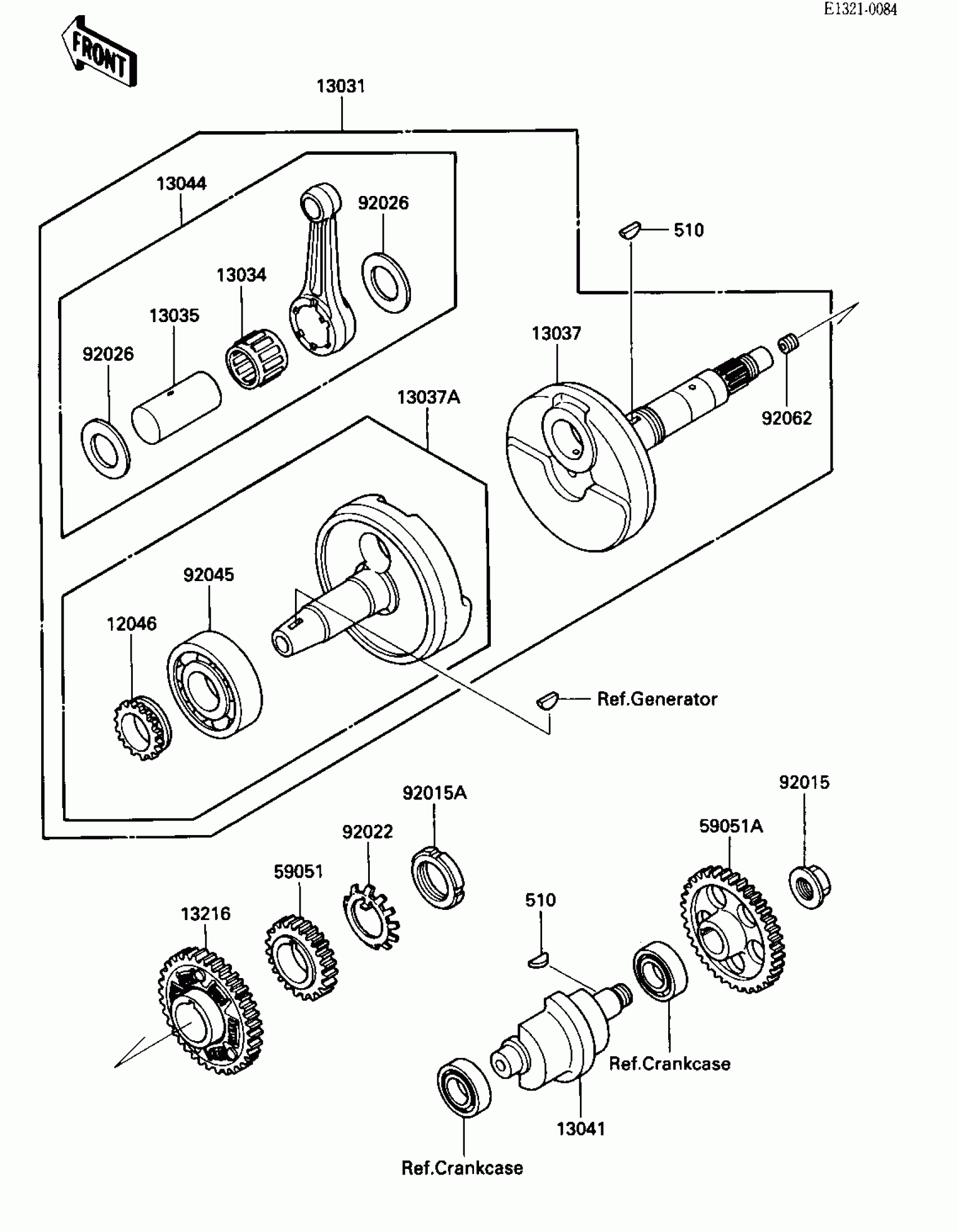

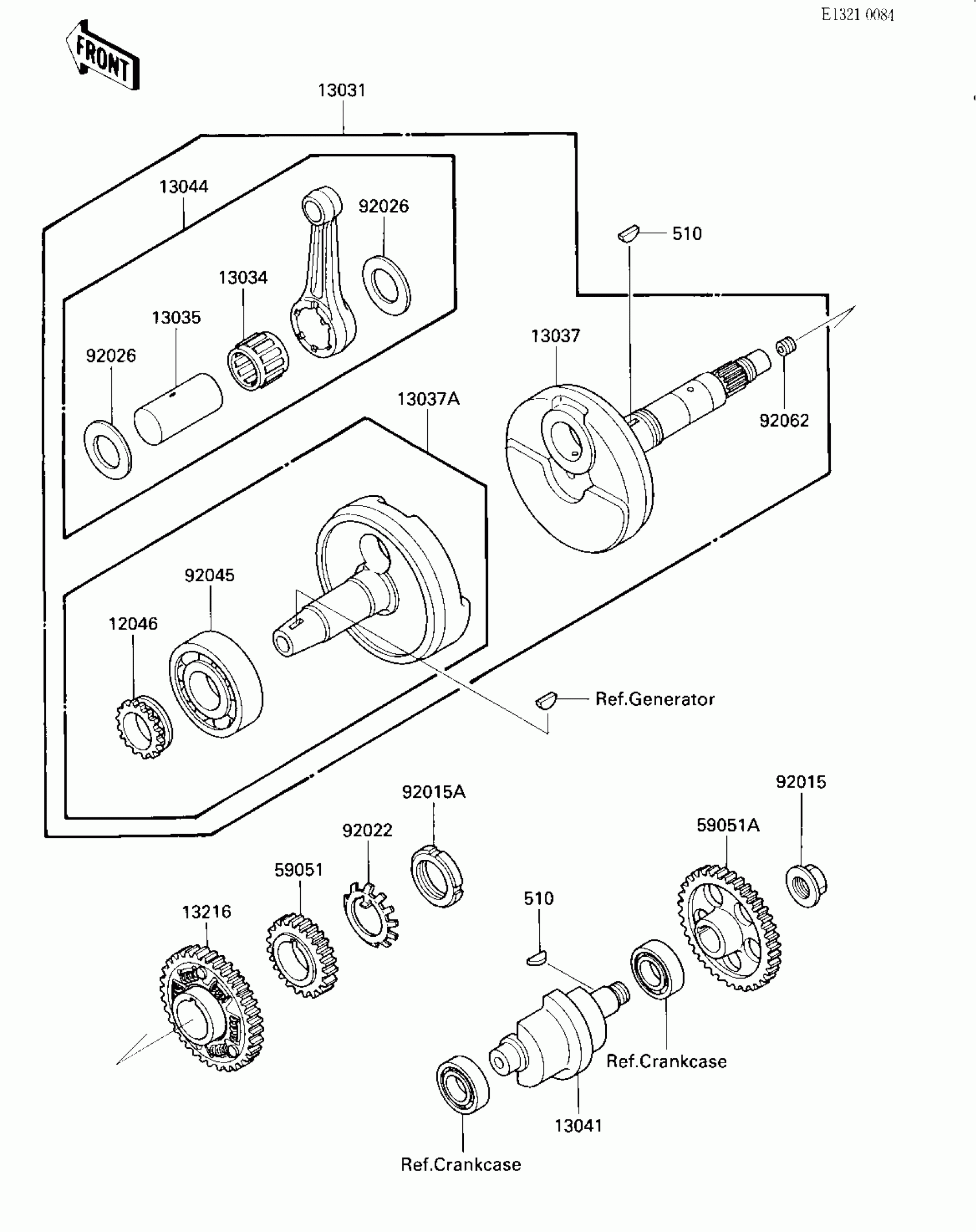

Kawasaki Bayou 300 CRANKSHAFT/BALANCER Diagram

Description

Price

12046

SPROCKET,16T

12046-1038

$52.69

13031

CRANKSHAFT-COMP

13031-1239

Unavailable

13034

BEARING-BIG END,PK32X43X22.4

13034-1061

$47.92

13035

PIN-CRANK

13035-1057

Unavailable

13037

CRANKSHAFT,RH

13037-1268

Unavailable

13037A

CRANKSHAFT

13037-5065

Unavailable

13041

BALANCER

13041-1066

$148.15

13044

SET-CONNECTING ROD

13044-5066

$305.98

13216

GEAR-COMP,BALANCER

13216-1072

$176.81

59051

GEAR-SPUR,OIL PUMP,36T

59051-1140

$63.61

59051A

GEAR-SPUR,BALANCER,44T

59051-1141

$127.52

92015

NUT,16MM

92015-1465

$18.57

92015A

NUT,PUMP GEAR,30MM

92015-1511

$24.05

92022

WASHER,PUMP GEAR

92022-1682

$5.33

92026

SPACER,32X51.5X1.2

92026-1232

$14.64

92045

BEARING-BALL,#6306

92045-037

$42.66

92062

NOZZLE

92062-1056

$5.00

510

WOODRUFF KEY

510A5100

$2.70
