Description

Price

13091

HOLDER,NEEDLE JET

13091-1259

$33.38

13169

PLATE,THROTTLE CABLE

13169-1977

Unavailable

15001

CARBURETOR-ASSY

15001-1332

Unavailable

16005

TOP-CHAMBER,MIXING

16005-1056

$68.90

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$26.23

16009

NEEDLE-JET,27Q

16009-1277

Unavailable

16012

CAP-STARTER PLUNGER

16012-1055

$27.48

16014

SCREW-PILOT AIR

16014-1054

$24.57

16016

PLUNGER,STARTER

16016-1065

$58.52

16017

JET-NEEDLE,#6

16017-1270

$49.12

16021

SCREW-THROTTLE STOP

16021-1115

$120.11

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1056

$53.59

16065

HOLDER-CARBURETOR

16065-1177

Unavailable

16073

INSULATOR

16073-5001

Unavailable

16126

VALVE,VACUUM

16126-1160

$200.34

49006

BOOT,STARTER PLUNGER

49006-1165

$10.00

92002

BOLT,SOCKET,6X25

92002-1093

$4.80

92009

SCREW,DRAIN,M6X1.0

92009-1095

$14.92

92009A

SCREW,5X10

92009-1365

$7.34

92022

WASHER,PLAIN

92022-1003

$4.31

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,FLOAT VALVE

16044-007

$7.91

92037A

CLAMP

92037-1326

$8.98

92037B

CLAMP,TUBE

92037-1531

$5.52

92043

PIN,FLOAT

92043-1148

$11.14

92055

RING-O,PILOT ADJUST

92055-1002

$4.31

92055A

RING-O

92055-1053

$4.69

92055B

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92055C

RING-O,38MM

92055-1295

$16.33

92059

TUBE,3.5X6.5X330

92059-111

$22.10

92059A

TUBE,6.5X11.5X150

92059-1463

$35.06

92059B

TUBE,6.5X9.5X410

92059-1539

$33.37

92063

JET-MAIN,#135

92063-1014

$14.10

92063A

JET-MAIN,#125

92063-1069

$14.79

92063B

JET-MAIN,#128

92063-1074

$14.10

92063C

JET-MAIN,#130

92063-1075

$14.10

92063D

JET-MAIN,#132

92063-1076

$14.10

92064

JET-PILOT,#38

92064-1119

$19.05

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

92081A

SPRING,THROTTLE STOP SCREW

92081-1617

$6.11

92081B

SPRING,PLUNGER

92081-1720

$10.19

92081C

SPRING,VACUUM VALVE

92081-1912

$25.81

223

SCREW-PAN-WS-CROS,4X16

223C0416

$4.12

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01

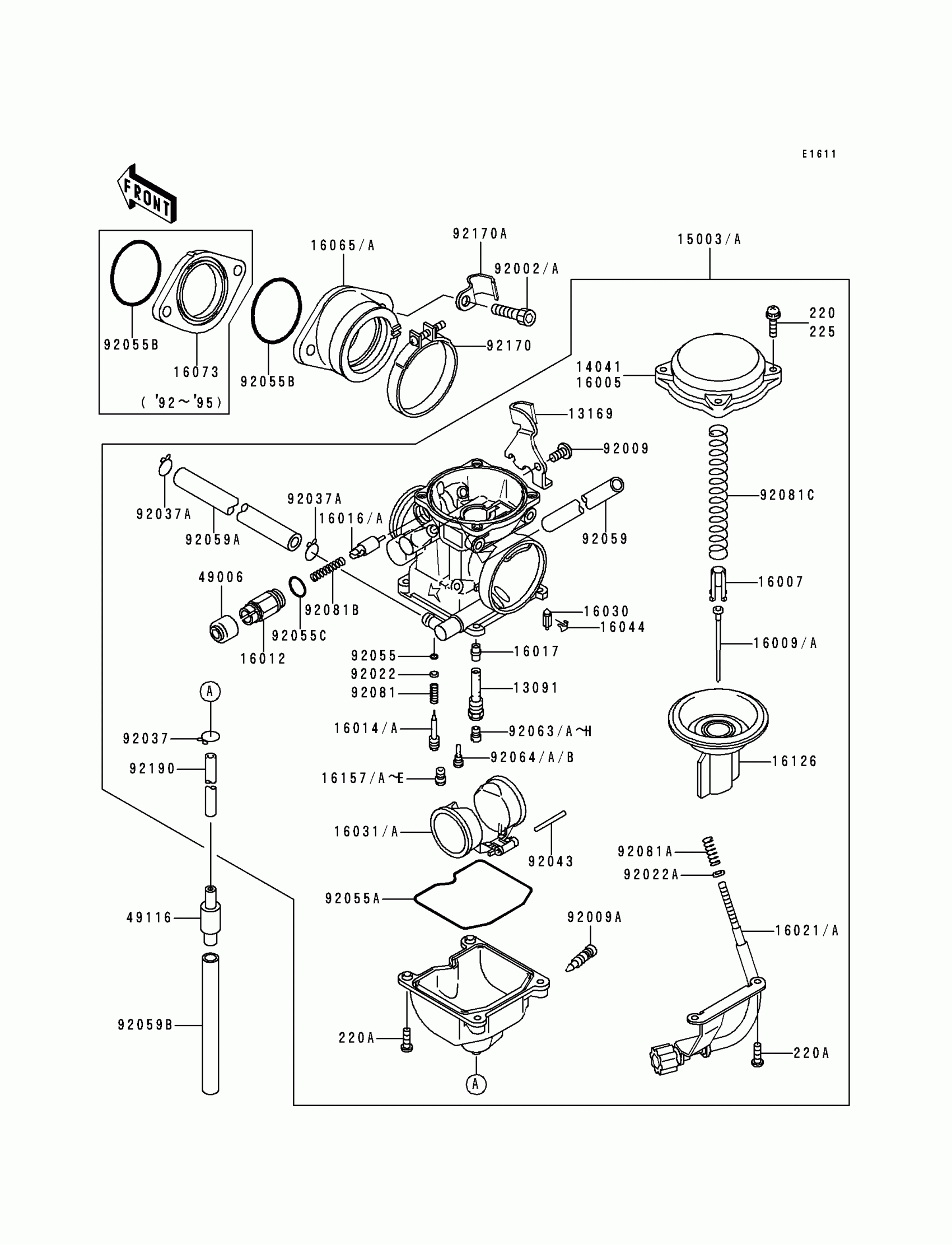

Kawasaki Bayou 300 CARBURETOR Diagram

HOLDER,NEEDLE JET

PLATE,THROTTLE CABLE

CARBURETOR-ASSY

TOP-CHAMBER,MIXING

SEAT-SPRING,THROTTLE VALVE

NEEDLE-JET,27Q

CAP-STARTER PLUNGER

SCREW-PILOT AIR

PLUNGER,STARTER

JET-NEEDLE,#6

SCREW-THROTTLE STOP

VALVE-FLOAT

FLOAT

HOLDER-CARBURETOR

INSULATOR

VALVE,VACUUM

BOOT,STARTER PLUNGER

BOLT,SOCKET,6X25

SCREW,DRAIN,M6X1.0

SCREW,5X10

WASHER,PLAIN

WASHER,PLAIN,STOP SPRING

CLAMP,FLOAT VALVE

CLAMP

CLAMP,TUBE

PIN,FLOAT

RING-O,PILOT ADJUST

RING-O

RING-O,FLOAT CHAMBER

RING-O,38MM

TUBE,3.5X6.5X330

TUBE,6.5X11.5X150

TUBE,6.5X9.5X410

JET-MAIN,#135

JET-MAIN,#125

JET-MAIN,#128

JET-MAIN,#130

JET-MAIN,#132

JET-PILOT,#38

SPRING,PILOT ADJUST SCREW

SPRING,THROTTLE STOP SCREW

SPRING,PLUNGER

SPRING,VACUUM VALVE

SCREW-PAN-WS-CROS,4X16

SCREW-PAN-WSP-CROS,4X18
