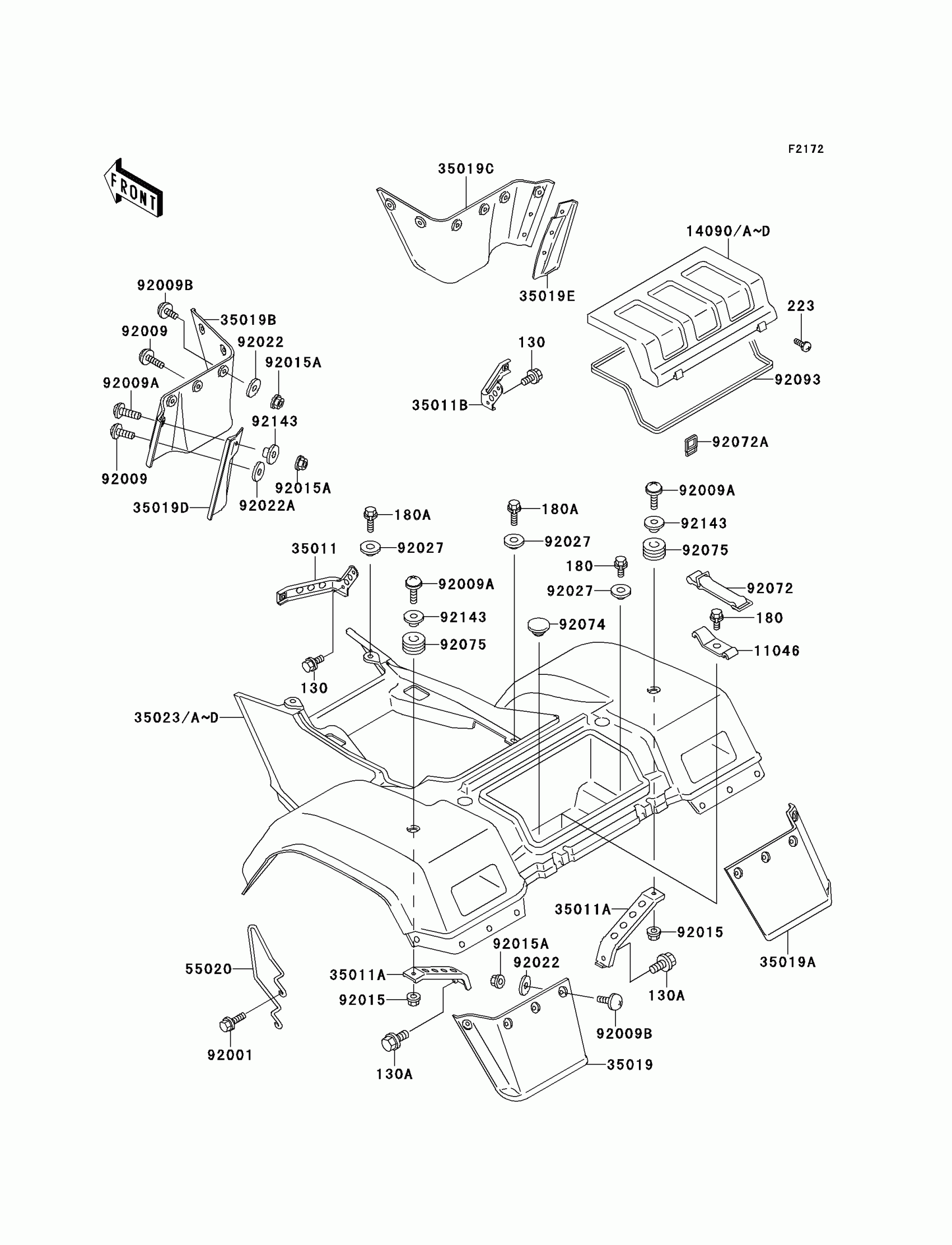

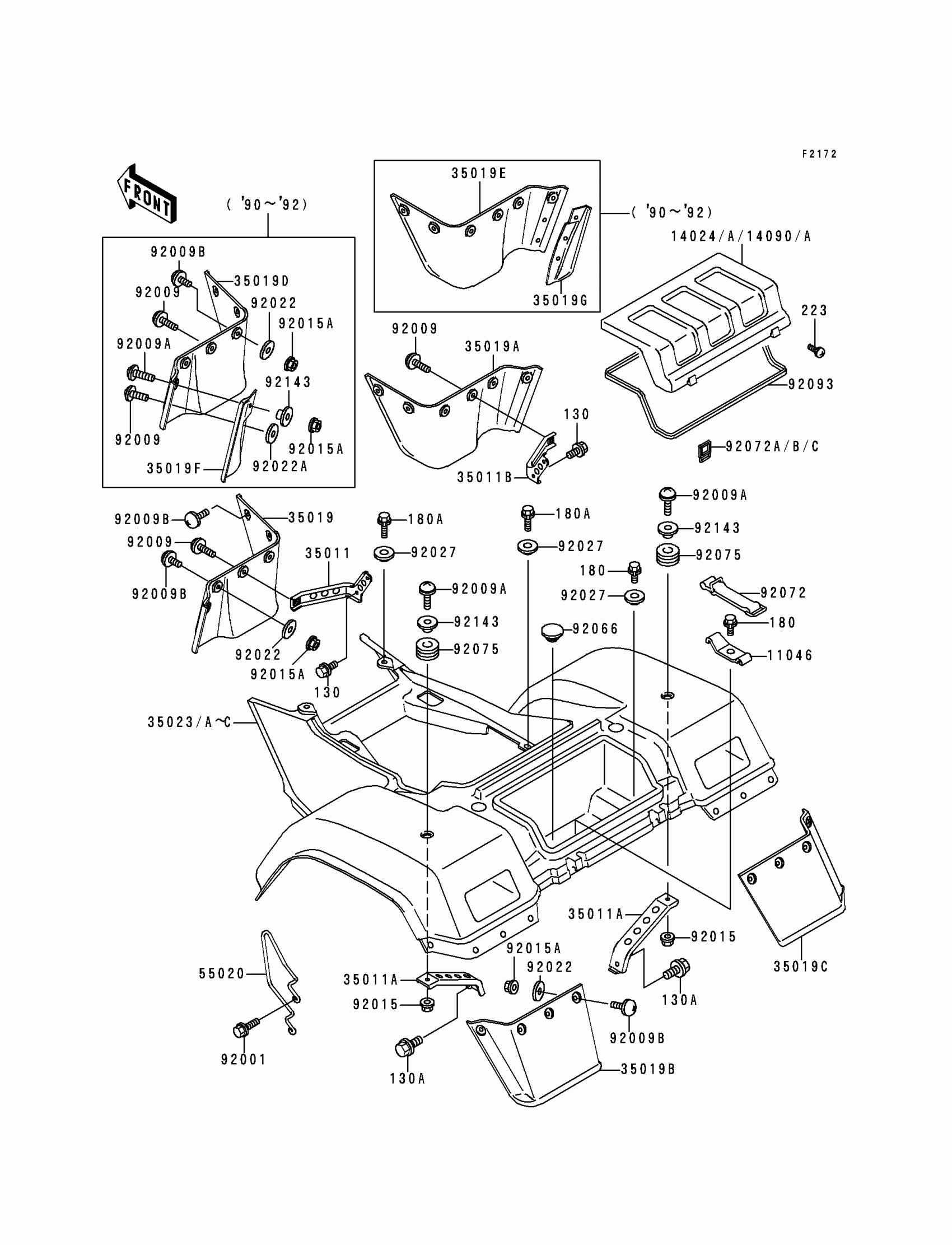

Kawasaki Bayou 300 4X4 Rear Fender(s) Diagram

#

Description
Price

11046

BRACKET,BAND

11046-1319

$9.21

14090

COVER,REAR FENDER,BLACK

14090-1160-6D

$39.77

14090A

COVER,REAR FENDER,F.RED

14090-1160-6L

$49.21

35011

STAY,REAR FENDER,FR,LH

35011-1423

$24.51

35011A

STAY,REAR FENDER,UPP

35011-1424

$24.51

35011B

STAY,REAR FENDER,FR,RH

35011-1440

$21.14

35019B

FLAP,RR,LH,RR

35019-1220

$23.85

35019C

FLAP,RR,RH,RR

35019-1221

$23.85

35019D

FLAP,RR,LH,FR

35019-1235

Unavailable

35019E

FLAP,RR,RH,FR

35019-1236

Unavailable

35019F

FLAP,LWR,RR,LH

35019-1256

$9.66

35019G

FLAP,LWR,RR,RH

35019-1257

$9.66

35023B

FENDER-REAR,BLACK

35023-1293-6D

Unavailable

35023C

FENDER-REAR,F.RED

35023-1293-6L

Unavailable

55020

GUARD

55020-1322

$21.93

92001

BOLT,6X18

92001-1342

Unavailable

92009

SCREW,6X18,BLACK

92009-1181

$2.80

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92022A

WASHER,6.5X16X2

92022-1342

$3.92

92027

COLLAR

92027-122

$8.60

92072

BAND

92072-1085

$18.15

92072C

BAND,REAR FENDER COVER

92072-1291

$17.55

92075

DAMPER,CASE

92075-222

$7.34

92093

SEAL,REAR FENDER COVER

92093-1262

$16.53

92143

COLLAR,L=9.6

92143-1016

$6.22

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT-FLANGED,8X12

130B0812

$0.77

180

BOLT-UPSET-WS

180D0614

Unavailable

180A

BOLT-UPSET-WS

180D0618

Unavailable

223

SCREW-PAN-WS-CROS,4X6

223C0406

$3.85

92074

PLUG,11X3.2

92074-038

$7.22
