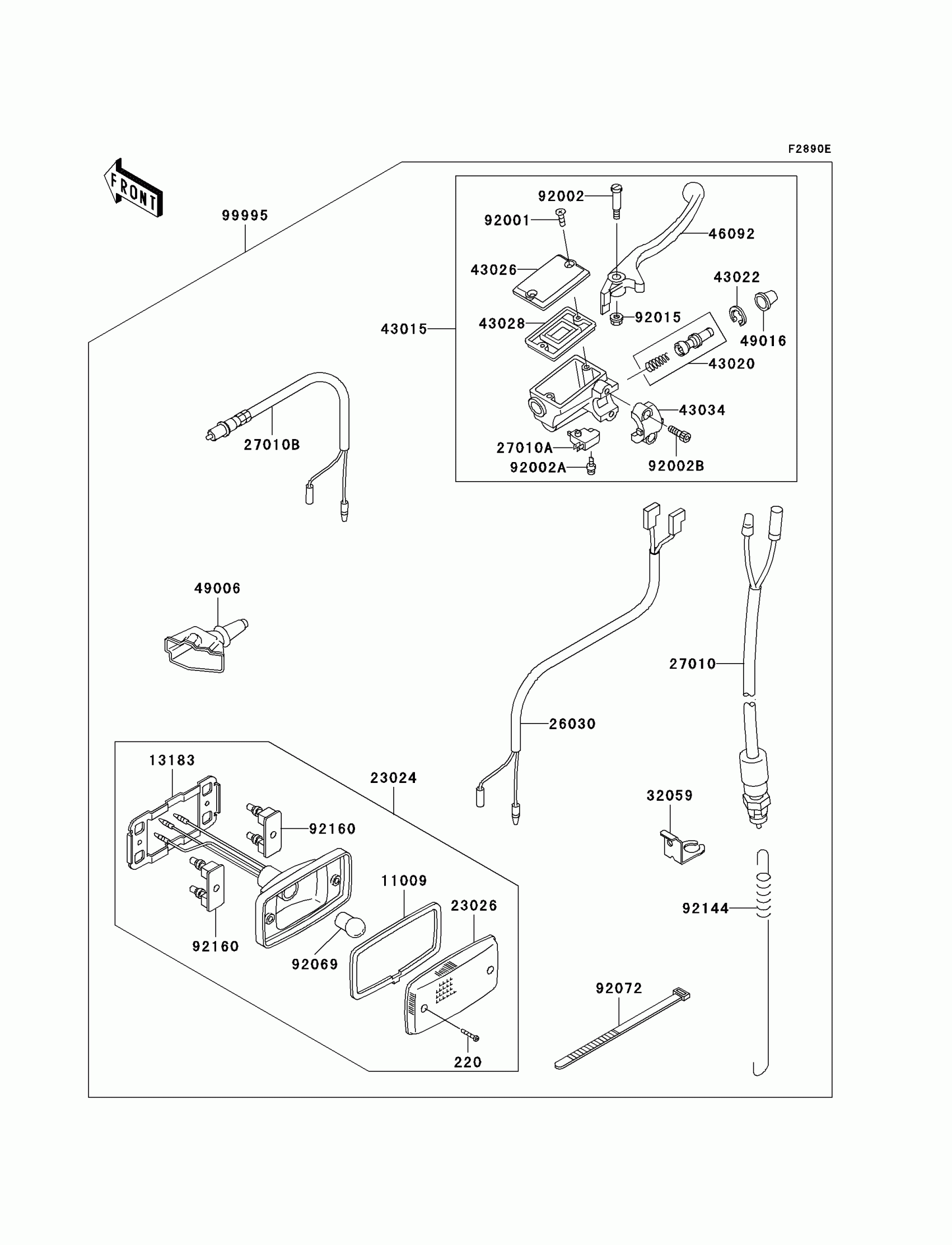

Kawasaki Bayou 300 4X4 Optional Parts(Brake Switch) Diagram

#

Description
Price

11009

GASKET,TAIL LAMP

11009-4004

$7.49

13183

PLATE,TAIL LAMP

13183-1261

$17.82

23024

LAMP-ASSY-TAIL

23024-1124

$132.71

23026

LENS,TAIL LAMP

23026-4003

Unavailable

26030

HARNESS

26030-1058

$16.59

27010

SWITCH,BRAKE LAMP

27010-025

$26.96

27010A

SWITCH,BRAKE

27010-1170

$32.62

27010B

SWITCH,BRAKE

27010-1294

$35.85

32059

BRACKET-SWITCH,REAR BRAKE

32059-1105

$23.20

43015

CYLINDER-ASSY-MASTER,FR

43015-1438

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1056

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1059

$51.13

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

46092

LEVER-GRIP,FRONT BRAKE

46092-1167

Unavailable

49006

BOOT

49006-1261

$21.07

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

SCREW,5MM,BLACK

92001-1727

$3.14

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

220

SCREW PAN HEAD 4X16

220B0416

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92069

BULB,12V 27/8W

92069-059

$6.19

92072

BAND,L=123

92072-030

$3.81

92144

SPRING,REAR BRAKE SWITCH

92144-1541

$12.34

92160

DAMPER,TAIL LAMP

92160-1053

$6.75

99995

KIT.,BRAKE SWITCH

99995-1440

Unavailable
