1992 Kawasaki Bayou 300 4X4 Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 1992 Kawasaki Bayou 300 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

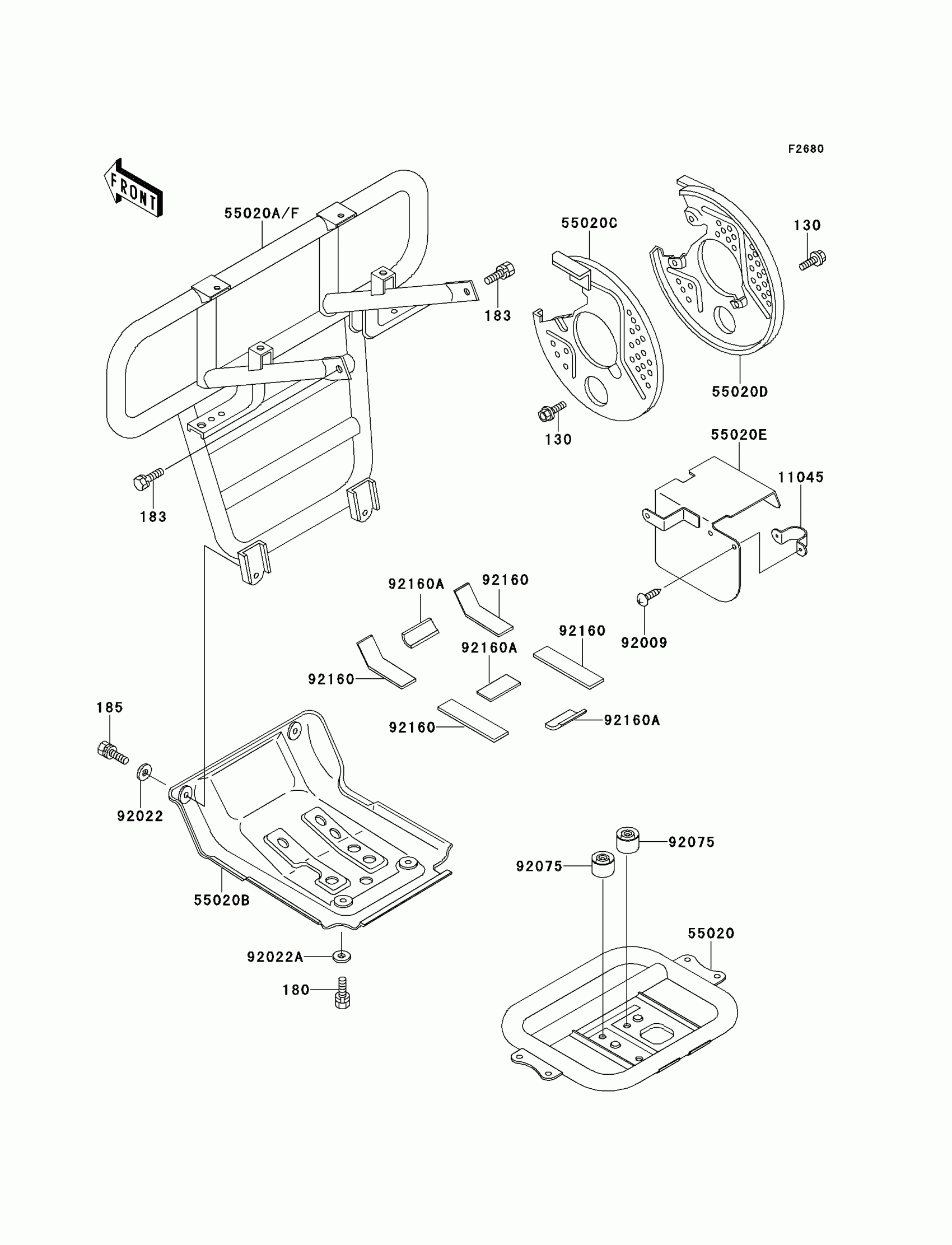

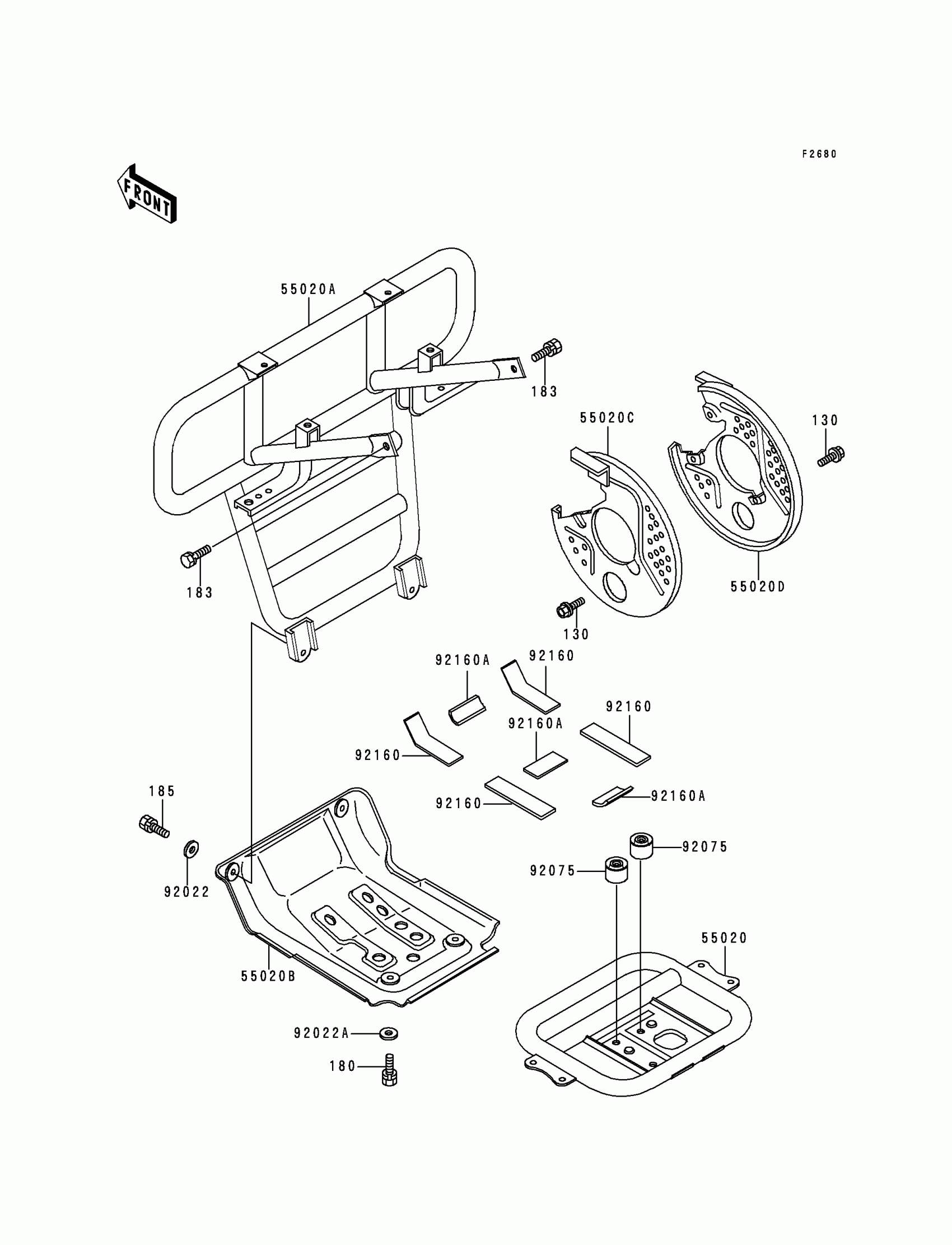

1992 Kawasaki Bayou 300 4X4 Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

180

BOLT-UPSET-WS,6X16

180J0616

1
Out of stock

183

BOLT-UPSET-WS-SMALL

183J0825

1
Out of stock

185

BOLT-UPSET-WSP-SMALL,8X20

185J0820

1
Out of stock

55020

GUARD,ENGINE

55020-1301

1

$83.26

In stock

55020A

GUARD,FR

55020-1302

1

$65.10

In stock

55020B

GUARD,FRONT DIFF

55020-1303

1

$76.98

In stock

55020C

GUARD,FRONT DISC,LH

55020-1304

1

$46.37

In stock

55020D

GUARD,FRONT DISC,RH

55020-1305

1

$42.30

In stock

92022

1

$3.43

In stock

92022A

1

$0.53

In stock

92075

DAMPER

92075-1896

1

$8.20

In stock

92160

DAMPER

92160-1101

1

$7.56

In stock

92160A

DAMPER

92160-1102

1

$1.24

In stock
