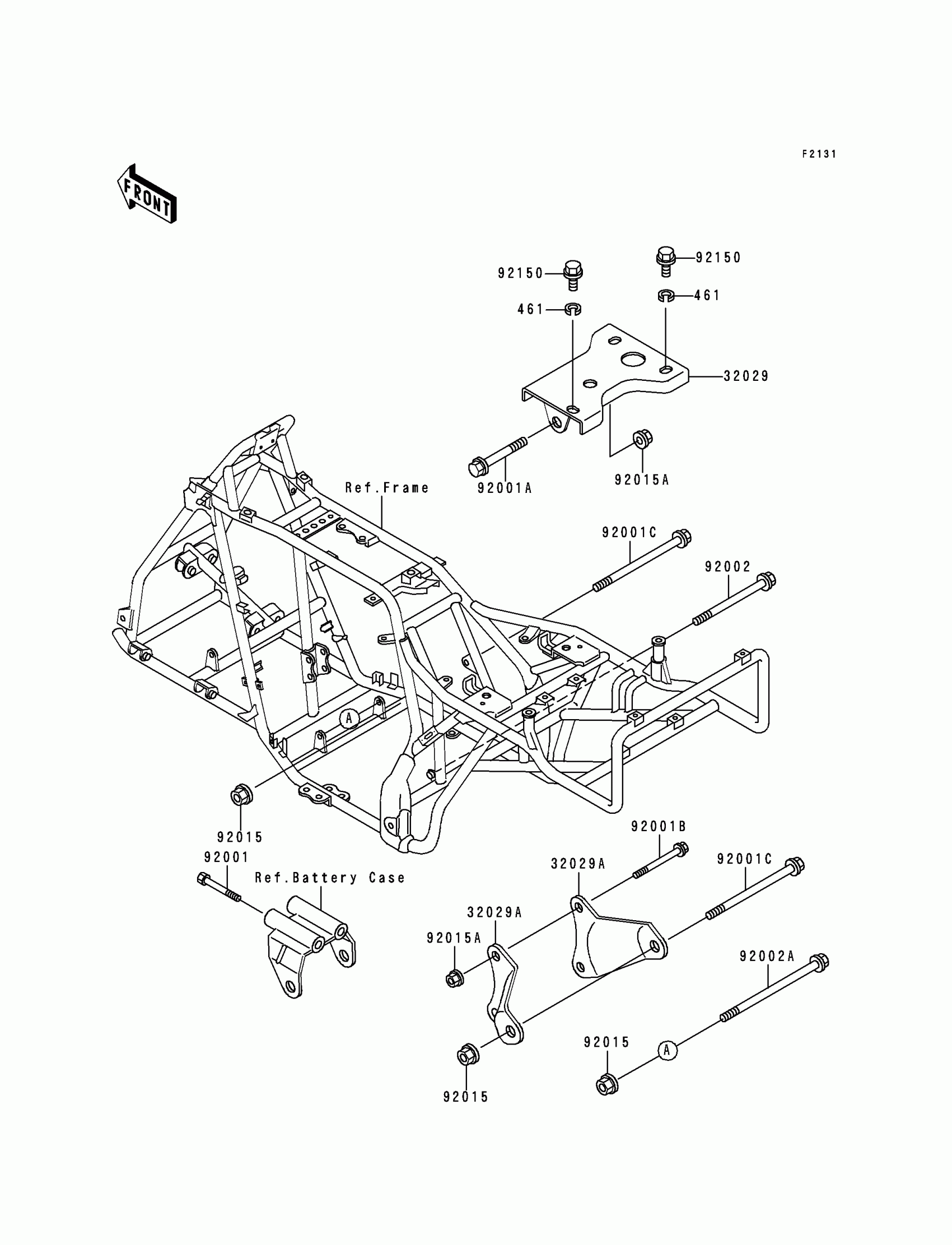

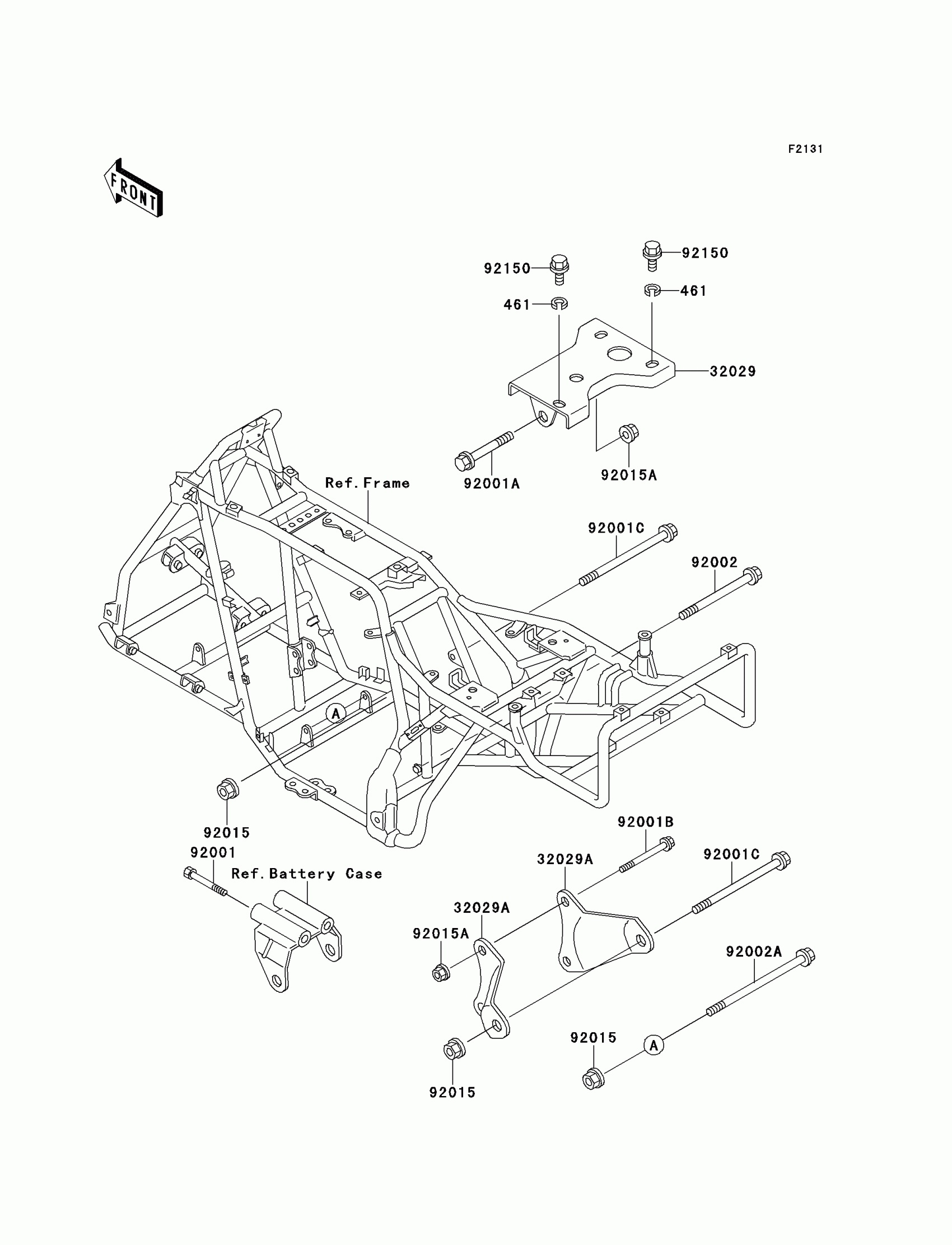

Kawasaki Bayou 300 4X4 Frame Fittings Diagram

Description

Price

461

WASHER-SPRING,8MM,BLACK

461K0800

Unavailable

32029

BRACKET-ENGINE,TOP

32029-1569

$108.97

32029A

BRACKET-ENGINE,FR

32029-1614

$18.39

92001

BOLT,8X65

92001-1375

Unavailable

92001A

BOLT,FLANGED,8X60,BLACK

92001-1615

$5.97

92001B

BOLT,FLANGED,8X85

92001-1718

$8.71

92001C

BOLT,FLANGED,10X160,BLACK

92001-1953

$19.25

92002

BOLT,FLANGED,10X130

92002-1087

$9.02

92002A

BOLT,FLANGED,10X180

92002-1546

$16.02

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92015A

NUT,8MM

92015-1432

$4.93

92150

BOLT,FLANGED,8X14

92150-1066

$4.25
