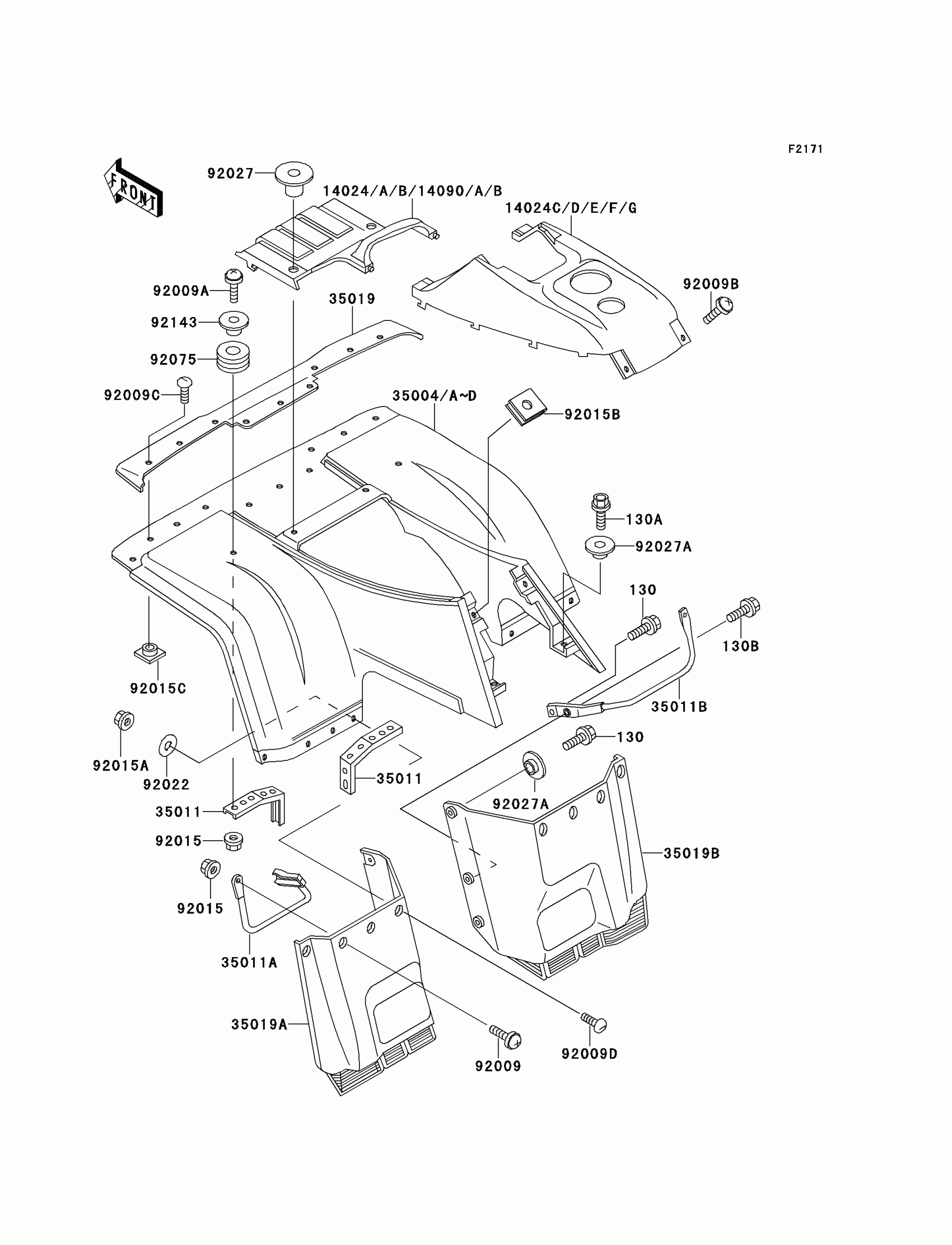

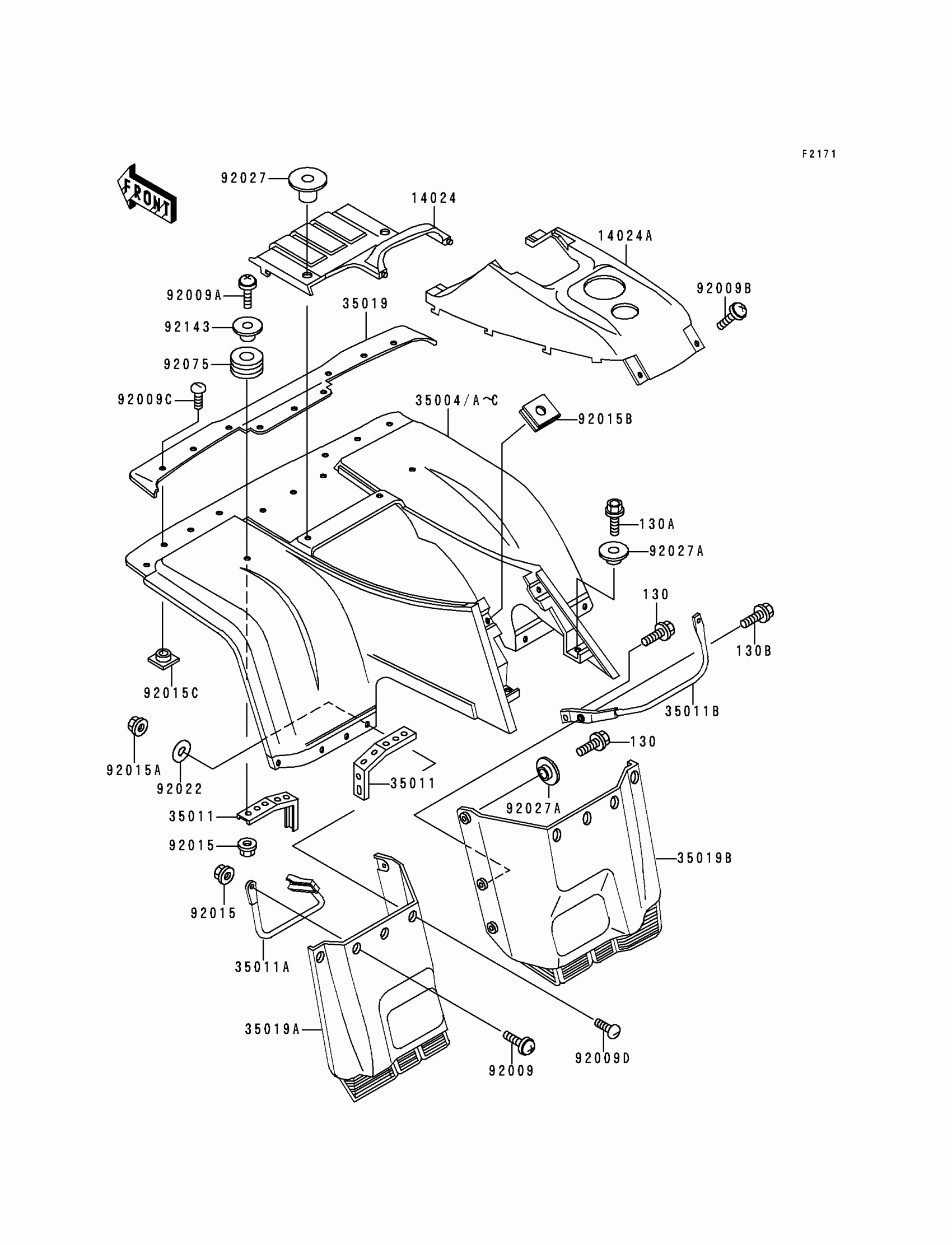

Kawasaki Bayou 300 4X4 Front Fender(s) Diagram
#
Description
Price
130
BOLT-FLANGED,6X14
130C0614
$2.33
130A
BOLT-FLANGED,6X16
130C0616
$0.63
130B
BOLT-FLANGED,6X20
130C0620
$6.86
14024E
COVER,FRONT FENDER,RR,GREEN
14024-1657-59
Unavailable
14024G
COVER,FRONT FENDER,RR,F.RED
14024-1657-6L
Unavailable
14090A
COVER,FRONT FENDER,FR,GREEN
14090-1656-59
Unavailable
14090B
COVER,FRONT FENDER,FR,F.RED
14090-1656-6L
$25.60
35004B
FENDER-FRONT,F.B.GREEN
35004-1273-59
Unavailable
35004D
FENDER-FRONT,F.RED
35004-1273-6L
$287.81
35011
STAY,FRONT FENDER,UPP
35011-1420
$24.51
35011A
STAY,FRONT FENDER,LH,FLAP
35011-1421
Unavailable
35011B
STAY,FRONT FENDER,RH,FLAP
35011-1422
Unavailable
35019
FLAP,FR
35019-1215
Unavailable
35019A
FLAP,FR,LWR,LH
35019-1216
$47.93
35019B
FLAP,FR,LWR,RH
35019-1217
$47.93
92009
SCREW,6X18,BLACK
92009-1181
$2.80
92009A
SCREW,6X22,BLACK
92009-1256
$2.78
92009B
SCREW,6X14
92009-1288
$3.92
92009C
SCREW,6X11
92009-1562
$5.84
92009D
SCREW,6X16
92009-1621
Unavailable
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92015A
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92015B
NUT,CLAMP,6MM
92015-1678
$5.52
92015C
NUT,6MM
92015-1722
$4.64
92022
WASHER,6.5X16X1.0
92022-1093
$2.08
92027
COLLAR,FUEL TANK FITT
92027-1134
$10.28
92027A
COLLAR
92027-122
$8.60
92075
DAMPER,CASE
92075-222
$7.34
92143
COLLAR,L=9.6
92143-1016
$6.22
