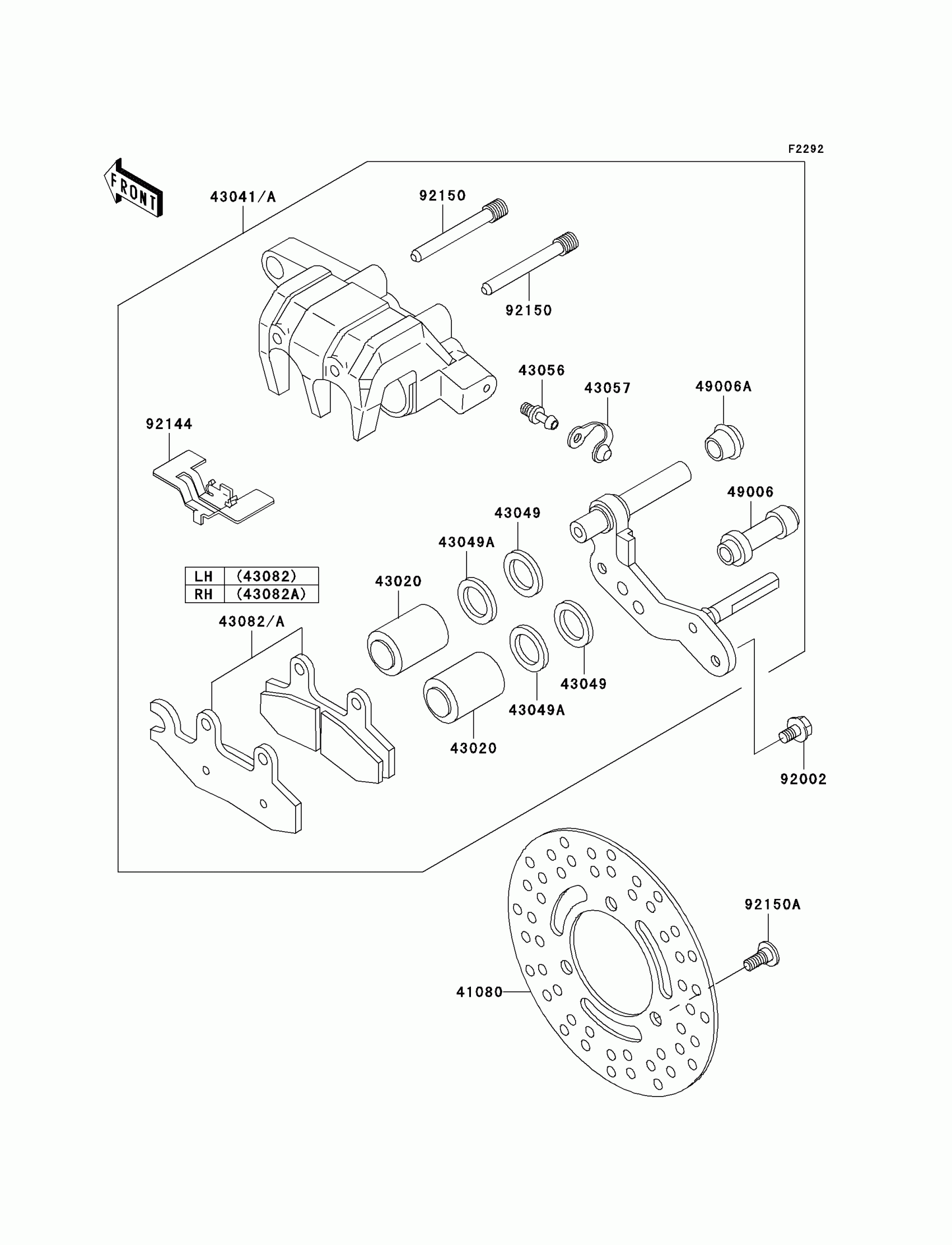

Kawasaki Bayou 300 4X4 Front Brake(C15) Diagram

Description

Price

41080

DISC,FR

41080-1216

$336.09

43020

PISTON-COMP-BRAKE

43020-1101

$53.01

43041

CALIPER-ASSY,FR,LH

43041-1518

$498.02

43041A

CALIPER-ASSY,FR,RH

43041-1519

$498.02

43049

PACKING

43049-1063

$8.03

43049A

PACKING

43049-1064

$6.16

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE,FR,LH

43082-1093

$42.00

43082A

PAD-ASSY-BRAKE,FR,RH

43082-1094

$42.00

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92002

BOLT,FLANGED,8X13

92002-1737

$5.59

92144

SPRING,PAD

92144-1319

$7.77

92150

BOLT

92150-1144

$9.91

92150A

BOLT,SOCKET,8X20

92150-1800

$7.29
