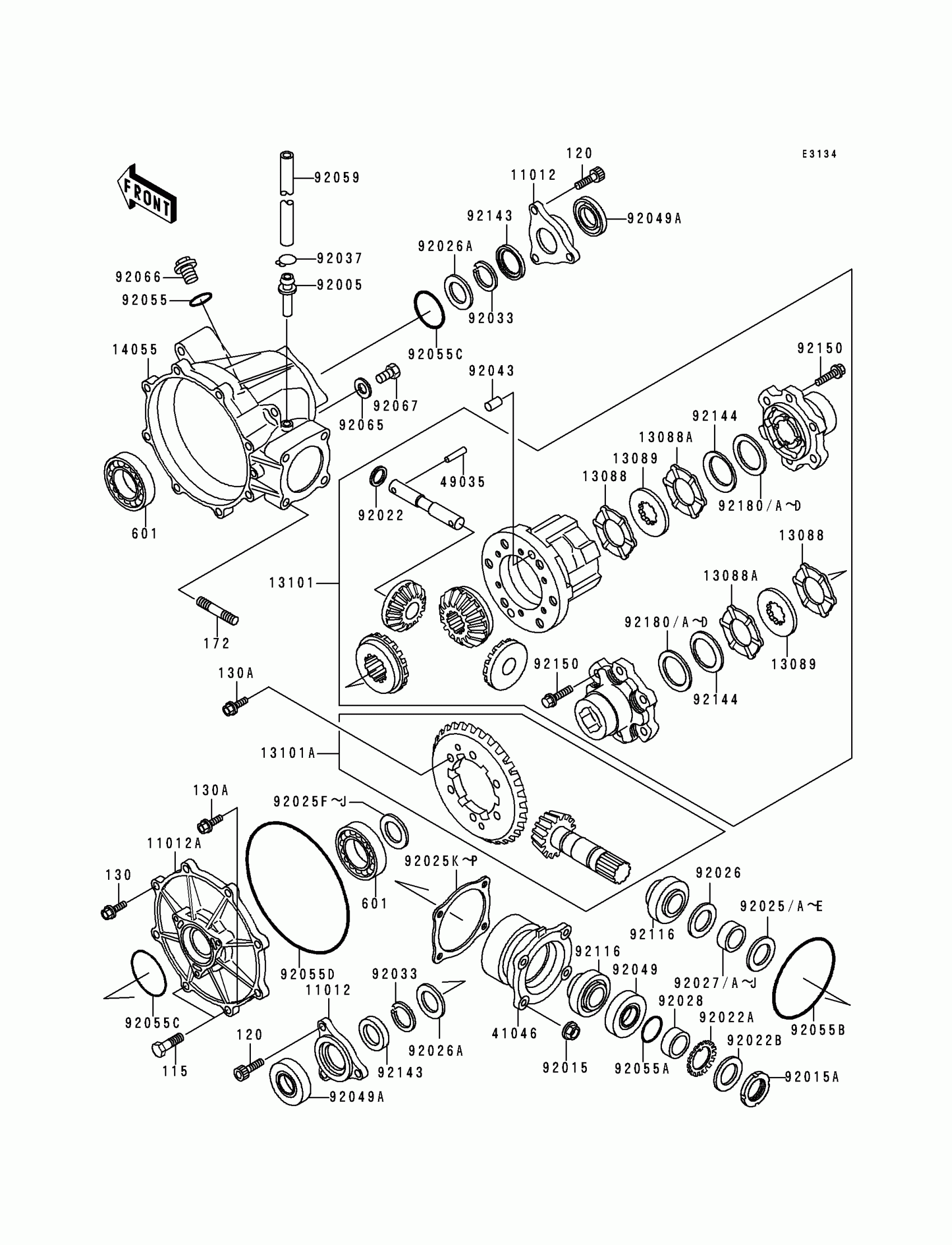

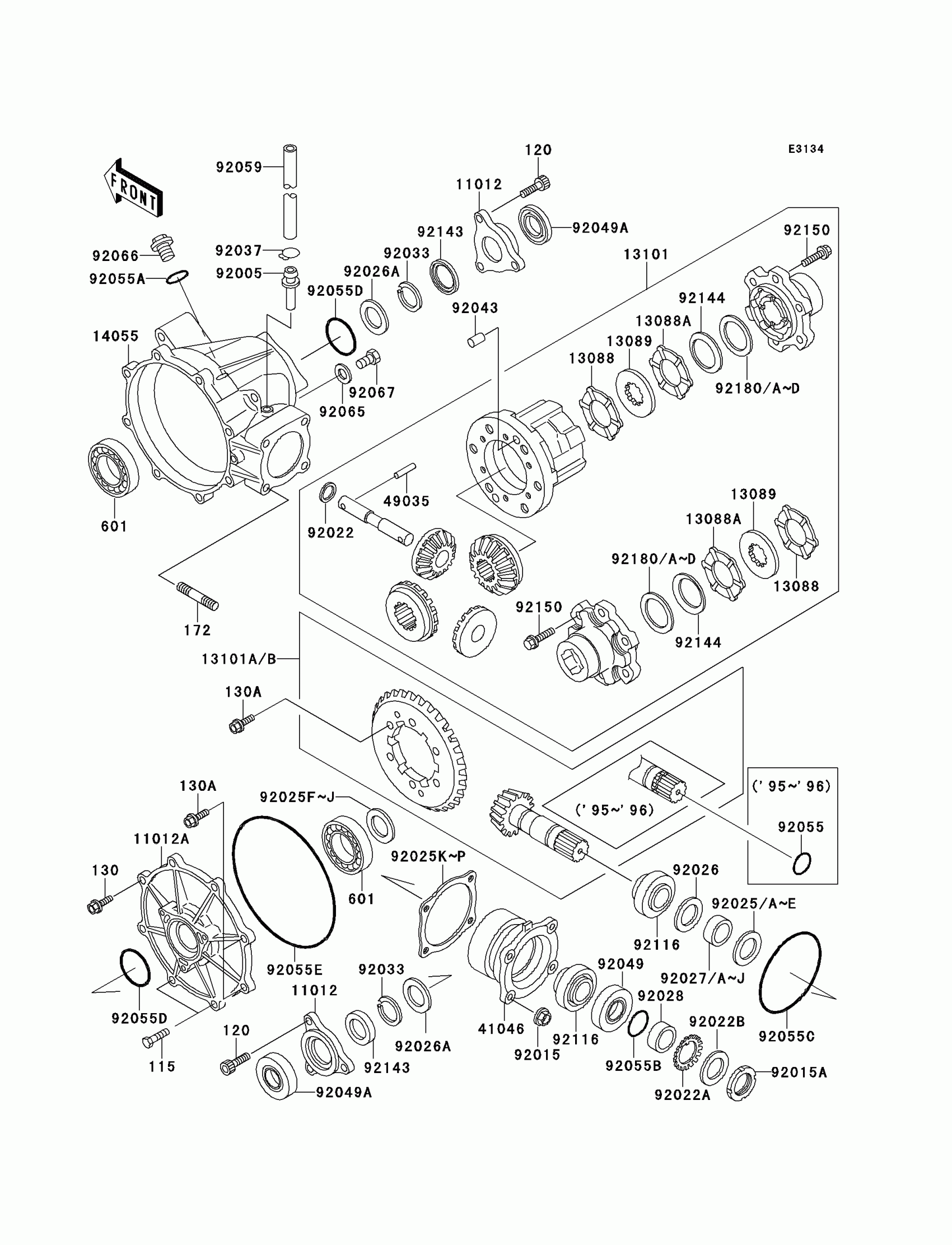

Kawasaki Bayou 300 4X4 Drive Shaft(Differential) Diagram
#
11012
CAP
11012-1648
$29.82
11012A
CAP,GEAR CASE
11012-1649
$112.28
13088
PLATE-FRICTION,T=2.8
13088-1075
$10.02
13088A
PLATE-FRICTION,T=2.4
13088-1078
$10.02
13089
PLATE-CLUTCH
13089-1083
$12.80
13101
GEAR-ASSY
13101-1190
$776.84
13101B
GEAR-ASSY,BEVEL
13101-5083
Unavailable
14055
CASE-GEAR,FR
14055-1114
$203.24
41046
HOUSING-BEARING
41046-1089
$156.95
49035
PIN-SPRING
49035-1056
$3.92
92005
FITTING,BREATHER
92005-1127
$17.17
92015
NUT,8MM
92015-1402
$4.69
92015A
NUT,25MM
92015-1768
$25.27
92022
WASHER
92022-1941
$4.69
92022A
WASHER,TOOTHED
92022-1990
$6.22
92022B
WASHER,25.3X32X0.5
92022-225
$5.52
92025
SHIM,25.2X29.8X1.70
92025-1072
Unavailable
92025A
SHIM,25.2X29.8X1.72
92025-1073
Unavailable
92025B
SHIM,25.2X29.8X1.74
92025-1074
Unavailable
92025C
SHIM,25.2X29.8X1.76
92025-1075
Unavailable
92025D
SHIM,25.2X29.8X1.78
92025-1076
Unavailable
92025E
SHIM,25.2X29.8X1.80
92025-1077
Unavailable
92025F
SHIM,35.3X46X1.00
92025-1849
Unavailable
92025G
SHIM,35.3X46X0.10
92025-1850
Unavailable
92025H
SHIM,35.3X46X0.15
92025-1851
Unavailable
92025I
SHIM,35.3X46X0.50
92025-1856
Unavailable
92025J
SHIM,35.3X46X0.80
92025-1857
Unavailable
92025K
SHIM,T=0.10
92025-1919
Unavailable
92025L
SHIM,T=0.15
92025-1920
Unavailable
92025M
SHIM,T=0.50
92025-1921
Unavailable
92025N
SHIM,T=0.80
92025-1922
Unavailable
92025O
SHIM,T=1.00
92025-1923
Unavailable
92025P
SHIM,T=1.20
92025-1924
Unavailable
92026
SPACER
92026-1337
$10.28
92026A
SPACER,29X40X1.0
92026-1338
$6.22
92027
COLLAR,25.2X29.8X10.2
92027-1401
Unavailable
92027A
COLLAR,25.2X29.8X10.3
92027-1402
Unavailable
92027B
COLLAR,25.2X29.8X10.4
92027-1403
Unavailable
92027C
COLLAR,25.2X29.8X10.5
92027-1404
Unavailable
92027D
COLLAR,25.2X29.8X10.6
92027-1405
Unavailable
115
BOLT-SMALL-UPSET
115P0830
$4.01
120
BOLT-SOCKET,6X16
120P0616
$2.33
130
BOLT-FLANGED,8X30
130P0830
$1.08
130A
BOLT-FLANGED
130P1035
$6.28
172
BOLT-STUD,8X22
172G0822
$2.12
601
BEARING-BALL,#6007C3
601B6007
$27.06
92027E
COLLAR,25.2X29.8X10.7
92027-1406
Unavailable
92027F
COLLAR,25.2X29.8X10.8
92027-1407
Unavailable
92027G
COLLAR,25.2X29.8X10.9
92027-1408
Unavailable
92027H
COLLAR,25.2X29.8X11.0
92027-1409
Unavailable
92027I
COLLAR,25.2X29.8X11.1
92027-1410
Unavailable
92027J
COLLAR,25.2X29.8X11.2
92027-1411
Unavailable
92028
BUSHING
92028-1699
$18.72
92033
RING-SNAP,T=1.5
92033-1249
$4.96
92037
CLAMP,TUBE
92037-147
$7.34
92043
PIN,8X18
92043-1400
$5.52
92049
SEAL-OIL,TC35X55X8
92049-1298
$8.98
92049A
SEAL-OIL,TC30487
92049-1309
$8.98
92055
RING-O,19.5X1.5
92055-055
$4.31
92055A
RING-O,25.7X2.4
92055-1136
$5.00
92055B
RING-O,24.7MM
92055-1160
$4.69
92055C
RING-O,65.2X2.4
92055-1408
$6.57
92055D
RING-O,46X2.5
92055-1409
$4.69
92055E
RING-O,154.1X2.5
92055-1410
$8.86
92059
TUBE,4.7X9.5X900
92059-1929
$9.14
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG
92066-1303
$12.96
92067
PLUG,DRAIN,10X12
92067-001
$4.41
92116
BEARING-ROLLER,4T30205
92116-1003
$36.32
92143
COLLAR
92143-1703
$14.43
92144
SPRING
92144-1671
$10.19
92150
BOLT,8X20
92150-1109
$4.31
92180
SHIM,32X48X0.8
92180-1121
Unavailable
92180A
SHIM,32X48X1.0
92180-1122
Unavailable
92180B
SHIM,32X48X1.2
92180-1123
Unavailable
92180C
SHIM,32X48X1.4
92180-1124
Unavailable
92180D
SHIM,32X48X1.6
92180-1125
Unavailable
