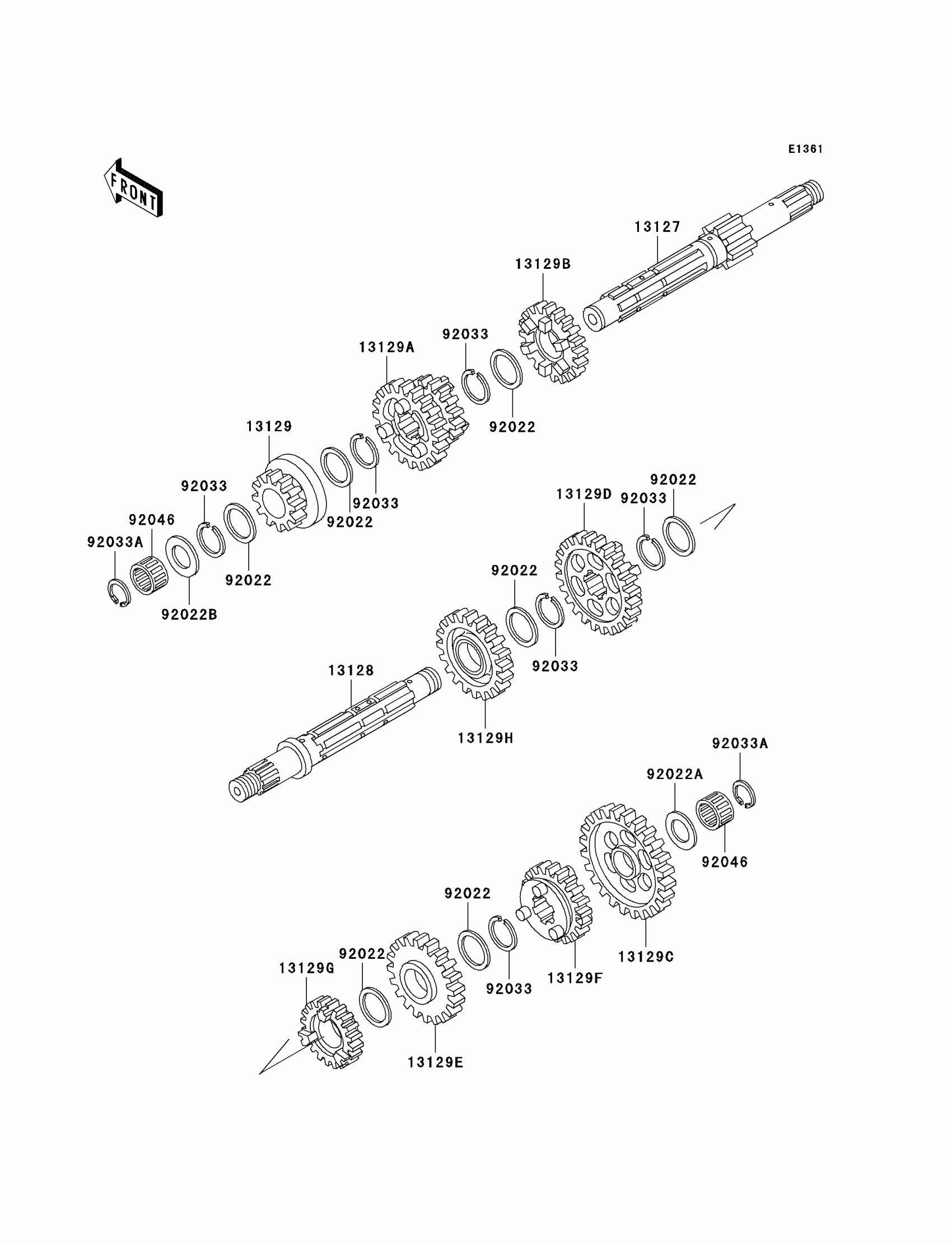

Kawasaki Bayou 300 4X4 (Canada Only) Transmission Diagram

Description

Price

13127

SHAFT-TRANSMISSION INPUT,11T

13127-1127

$243.24

13128

SHAFT-TRANSMISSION OUTPUT

13128-1132

$208.68

13129

GEAR,INPUT 2ND,14T

13129-1680

$130.18

13129A

GEAR,INPUT TOP&3RD,26T&19T

13129-1681

$142.67

13129B

GEAR,INPUT 4TH,23T

13129-1682

$130.18

13129C

GEAR,OUTPUT LOW,34T

13129-1683

$138.22

13129D

GEAR,OUTPUT 2ND,27T

13129-1684

$138.22

13129E

GEAR,OUTPUT 3RD,26T

13129-1685

$130.18

13129F

GEAR,OUTPUT 4TH,23T

13129-1686

$130.18

13129G

GEAR,OUTPUT TOP,20T

13129-1687

$130.18

13129H

GEAR-REVERSE,26T

13129-1688

$130.18

92022

WASHER,22.3X27X0.5

92022-198

$4.18

92022A

WASHER,17.3X28X1

92022-255

$6.55

92022B

WASHER,17.3X30X1.4

92022-270

$7.50

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92033A

RING-SNAP

92033-032

$3.78

92046

BEARING-NEEDLE

92046-1184

$17.18
