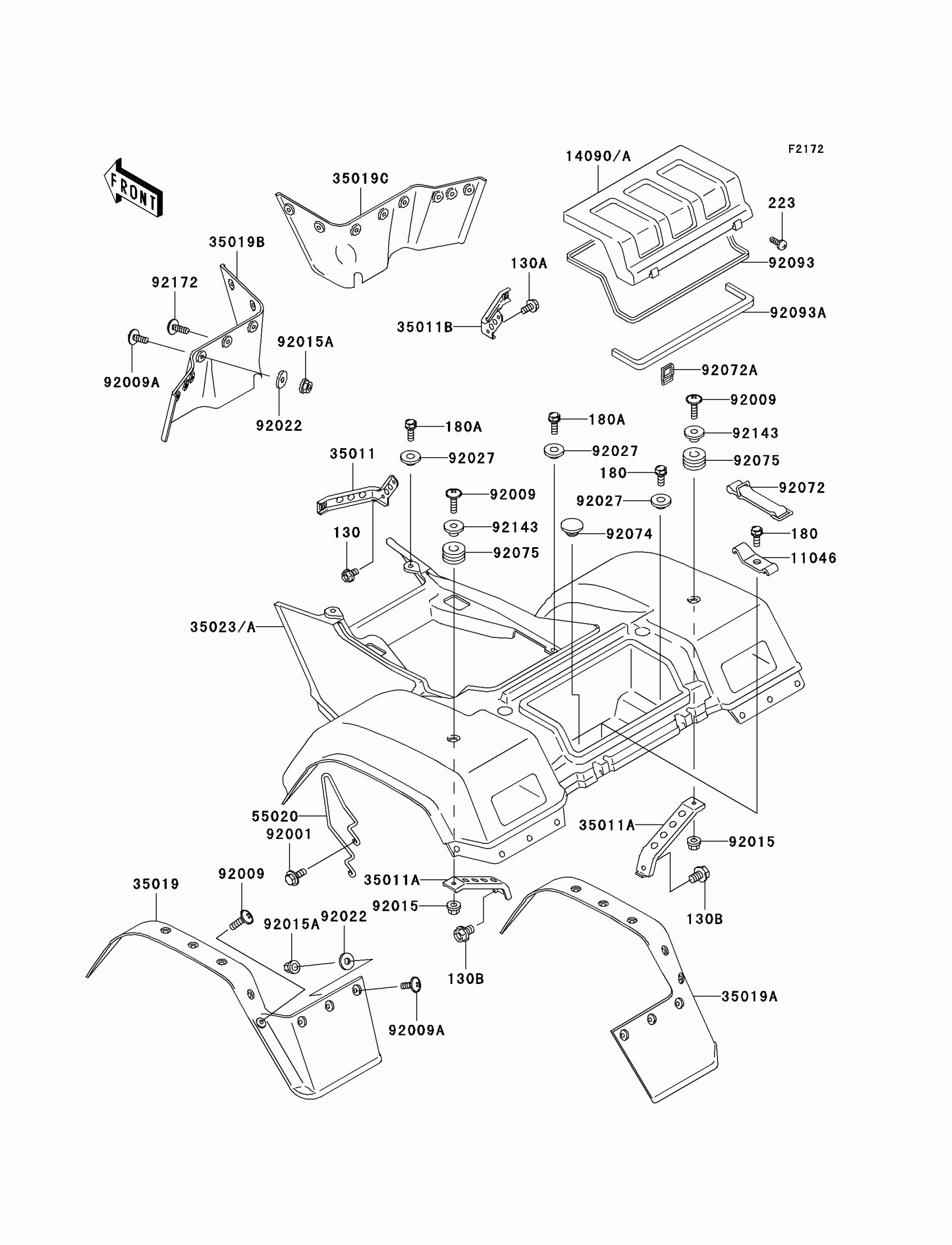

Kawasaki Bayou 300 4X4 (Canada Only) Rear Fender(s) Diagram
#
Description
Price
130
BOLT-FLANGED,6X10
130B0610
$0.48
130A
BOLT
130B0612
$0.67
130B
BOLT-FLANGED,8X12
130B0812
$0.77
180
BOLT-UPSET-WS
180D0614
Unavailable
180A
BOLT-UPSET-WS
180D0618
Unavailable
223
SCREW-PAN-WS-CROS,4X6
223C0406
$3.85
11046
BRACKET,BAND
11046-1319
$9.21
14090A
COVER,REAR FENDER,H.GREEN
14090-1160-6A
$46.13
35011
STAY,REAR FENDER,FR,LH
35011-1423
$24.51
35011A
STAY,REAR FENDER,UPP
35011-1424
$24.51
35011B
STAY,REAR FENDER,FR,RH
35011-1440
$21.14
35019
FLAP,RR,LH,BLACK
35019-1298-6Z
$50.28
35019A
FLAP,RR,RH,BLACK
35019-1299-6Z
$50.28
35019B
FLAP,RR,LWR,LH,F.BLACK
35019-1325-6Z
$37.82
35019C
FLAP,RR,LWR,RH,F.BLACK
35019-1326-6Z
$37.82
35023A
FENDER-REAR,H.GREEN
35023-1332-6A
$240.82
55020
GUARD
55020-1322
$21.93
92001
BOLT,6X18
92001-1342
Unavailable
92009
SCREW,6X22,BLACK
92009-1256
$2.78
92009A
SCREW,6X16
92009-1621
Unavailable
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92015A
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92022
WASHER,6.5X16X1.0
92022-1093
$2.08
92027
COLLAR,L=4.7
92027-1964
$7.34
92072
BAND
92072-1085
$18.15
92072A
BAND,REAR FENDER COVER
92072-1291
$17.55
92074
PLUG,11X3.2
92074-038
$7.22
92075
DAMPER,CASE
92075-222
$7.34
92093
SEAL,REAR FENDER COVER
92093-1262
$16.53
92093A
SEAL,REAR FENDER COVER
92093-1539
$7.64
92143
COLLAR,L=9.6
92143-1016
$6.22
92172
SCREW,6X18
92172-0002
$2.80
