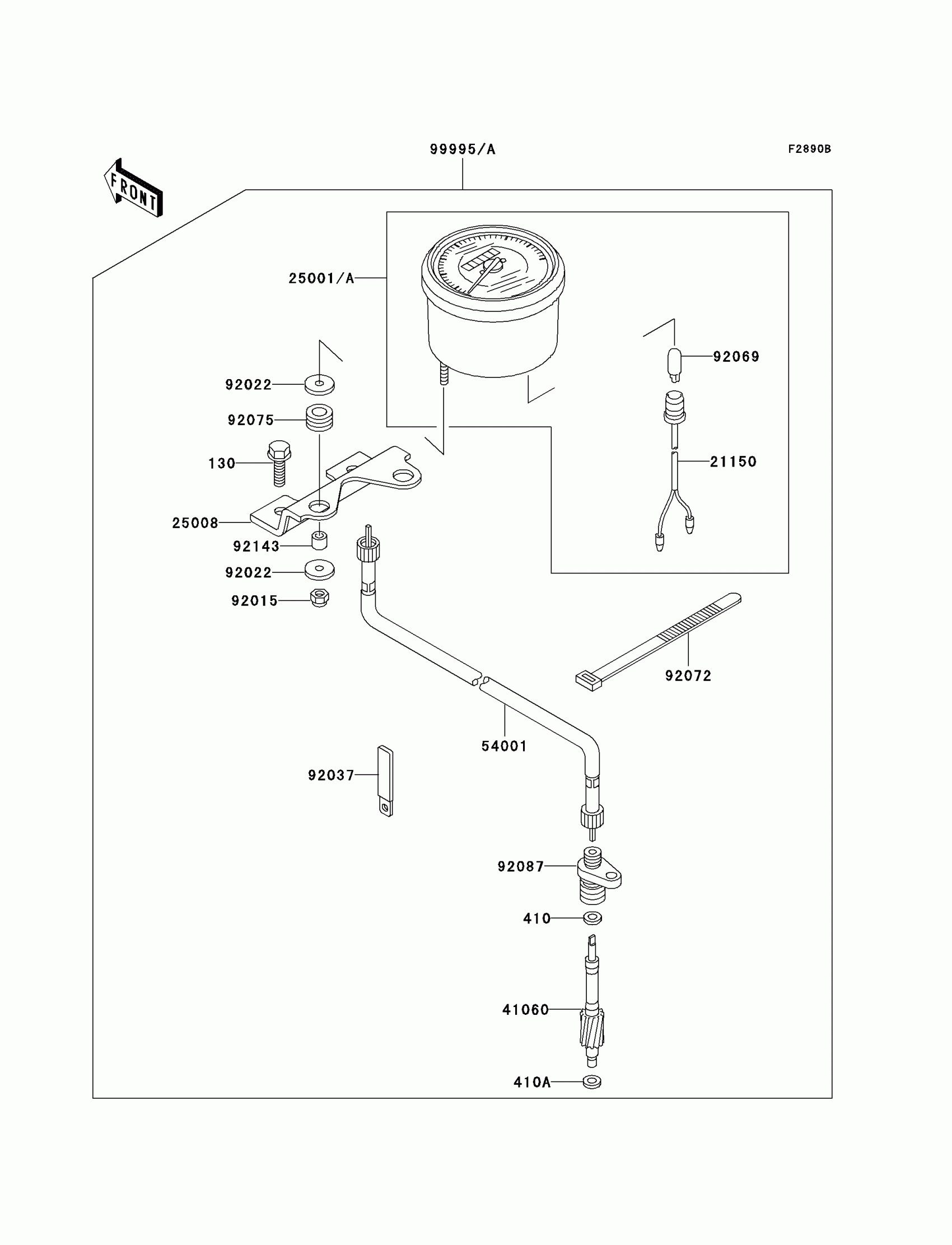

Kawasaki Bayou 300 4X4 (Canada Only) Optional Parts(Meter) Diagram

Description

Price

130

BOLT-FLANGED,8X12

130J0812

Unavailable

410

WASHER PLAIN 5MM

410B0500

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

21150

CORD-ASSY,SPEEDOMETER

21150-1054

$35.68

25001A

METER-ASSY,SPEED,KPH

25001-1725

Unavailable

25008

BRACKET-METER

25008-1149

$47.94

41060

GEAR-METER SCREW

41060-1126

$43.76

54001

CABLE-SPEEDMETER

54001-1226

$30.48

92015

NUT,LOCK,5MM

92015-1221

$4.67

92022

WASHER,5.5X20X1.2

92022-1405

$3.29

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92072

BAND,L=149

92072-031

$3.81

92075

DAMPER

92075-1409

$5.61

92087

BUSHING-METER GEAR

92087-1057

$22.88

92143

COLLAR,5.5X10X8.5

92143-1235

$5.14

99995A

KIT.,METER,KPH

99995-1416

Unavailable
