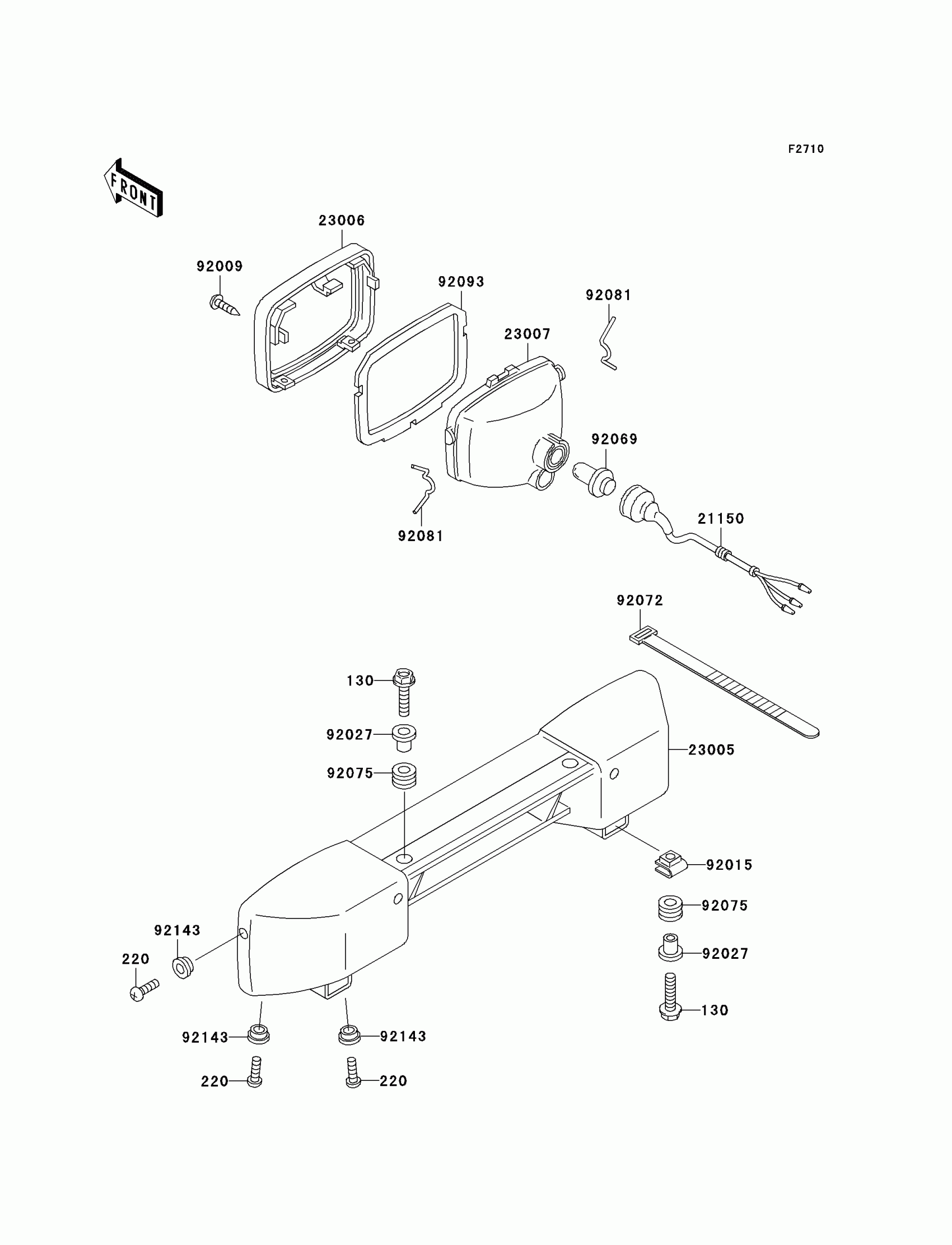

Kawasaki Bayou 300 4X4 (Canada Only) Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130J0625

$2.62

220

SCREW-PAN-CROSS,5X16

220F0516

$1.71

21150

CORD-ASSY,HEAD LAMP

21150-1053

$46.22

23005

BODY-COMP-HEAD LAMP

23005-1113

$128.41

23006

RIM-LAMP

23006-1062

$52.23

23007

LENS-COMP,HEAD LAMP

23007-1274

$47.74

92009

SCREW,TAPPING,4X30

92009-1139

$4.67

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92027

COLLAR,L=16.1

92027-1847

$6.22

92069

BULB,12V 25/25W

92069-1010

$14.67

92072

BAND,L=149

92072-031

$5.00

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,LAMP RIM

92081-1334

$5.40

92093

SEAL,HEAD LAMP

92093-1261

$14.87

92143

COLLAR

92143-1234

$4.31
