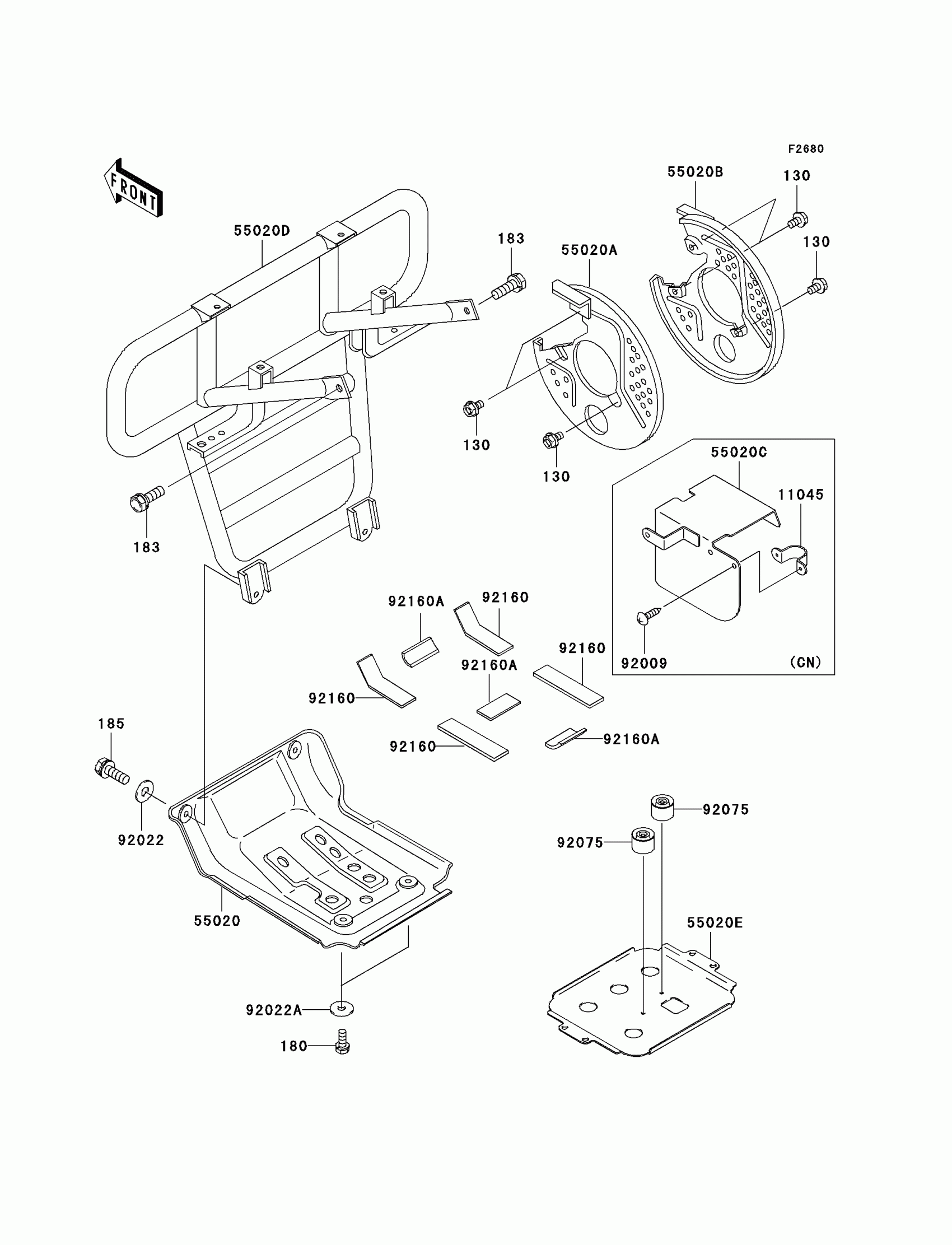

Kawasaki Bayou 300 4X4 (Canada Only) Guard(s) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130B0610

Unavailable

180

BOLT-UPSET-WS,6X16

180J0616

Unavailable

183

BOLT-UPSET-WS-SMALL

183J0825

Unavailable

185

BOLT-UPSET-WSP-SMALL,8X25

185J0825

Unavailable

11045

BRACKET,FENDER

11045-1882

$7.56

55020

GUARD,FRONT DIFF

55020-1303

$75.19

55020A

GUARD,FRONT DISC,LH

55020-1304

$46.37

55020B

GUARD,FRONT DISC,RH

55020-1305

$40.59

55020C

GUARD,SNOW

55020-1474

Unavailable

55020D

GUARD,FR,S.GRAY

55020-1585-1U

$73.02

55020E

GUARD,ENGINE

55020-1797

$83.26

92009

SCREW,TAPPING,5X10

92009-1332

$2.99

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92075

DAMPER

92075-1896

$8.20

92160

DAMPER

92160-1101

$7.56

92160A

DAMPER

92160-1102

$1.24
