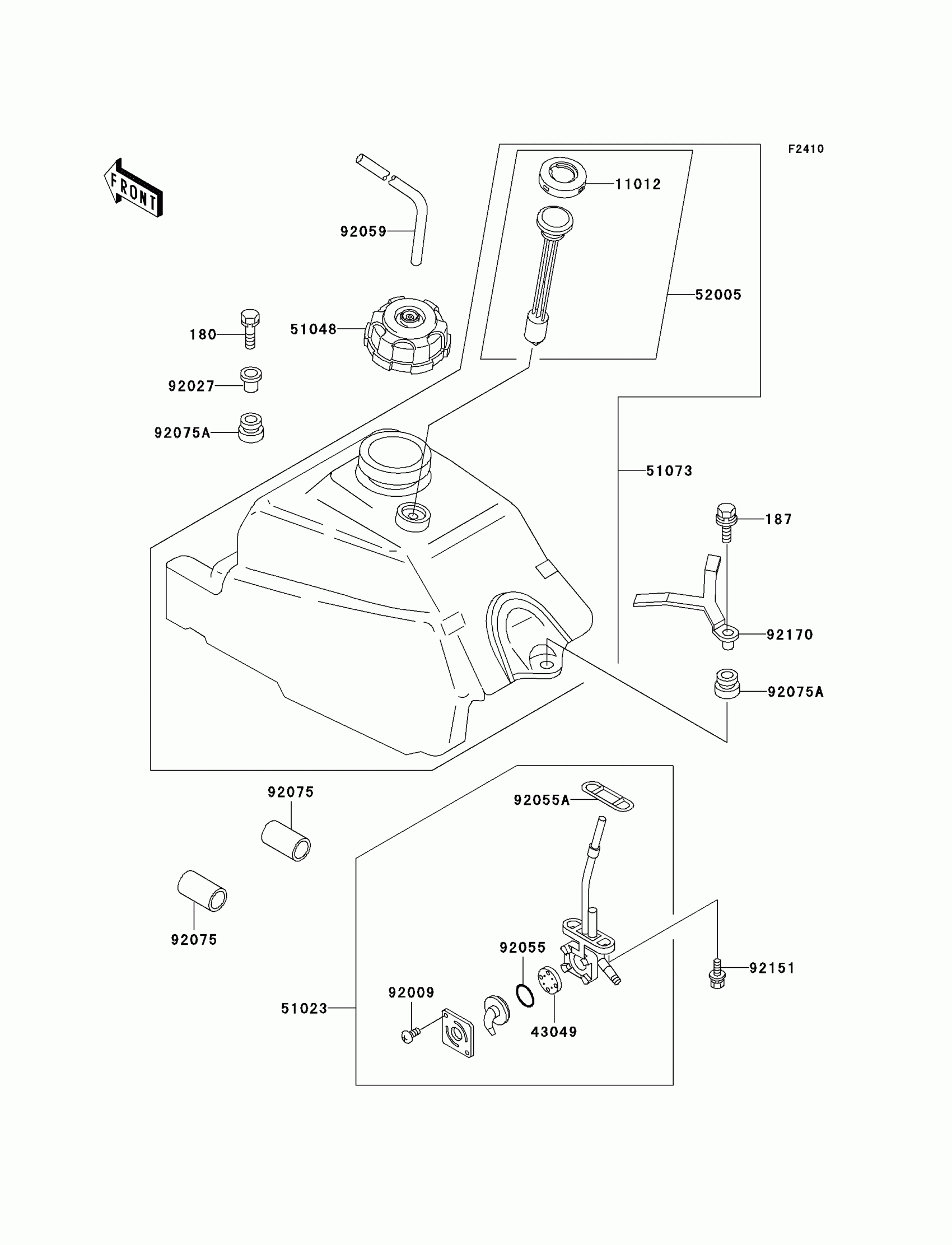

Kawasaki Bayou 300 4X4 (Canada Only) Fuel Tank Diagram

Description

Price

180

BOLT-UPSET-WS,6X25

180D0625

$4.25

187

BOLT-UPSET-WSP

187D0630

Unavailable

11012

CAP,FUEL GAUGE

11012-1627

$17.07

43049

PACKING,VALVE

43049-1102

$7.26

51023

TAP-ASSY,FUEL

51023-1351

$132.20

51048

CAP-ASSY-TANK,FUEL

51048-1133

$63.66

51073

TANK-ASSY-FUEL

51073-1045

$307.50

52005

GAUGE,FUEL

52005-1121

Unavailable

92009

SCREW,3X5

92009-1123

$0.59

92027

COLLAR,L=16.1

92027-1847

$6.22

92055

RING-O,FUEL TAP LEVER

92055-1111

$5.00

92055A

RING-O,FUEL TAP PACKING

92055-1348

$7.34

92059

TUBE,5X9.4X300

92059-1982

$12.99

92075

DAMPER,FUEL TANK,FR,UNDER

92075-1369

$7.83

92075A

DAMPER

92075-1787

$6.57

92151

BOLT,6X14

92151-1198

$4.38

92170

CLAMP,HOSE

92170-1070

$16.69
