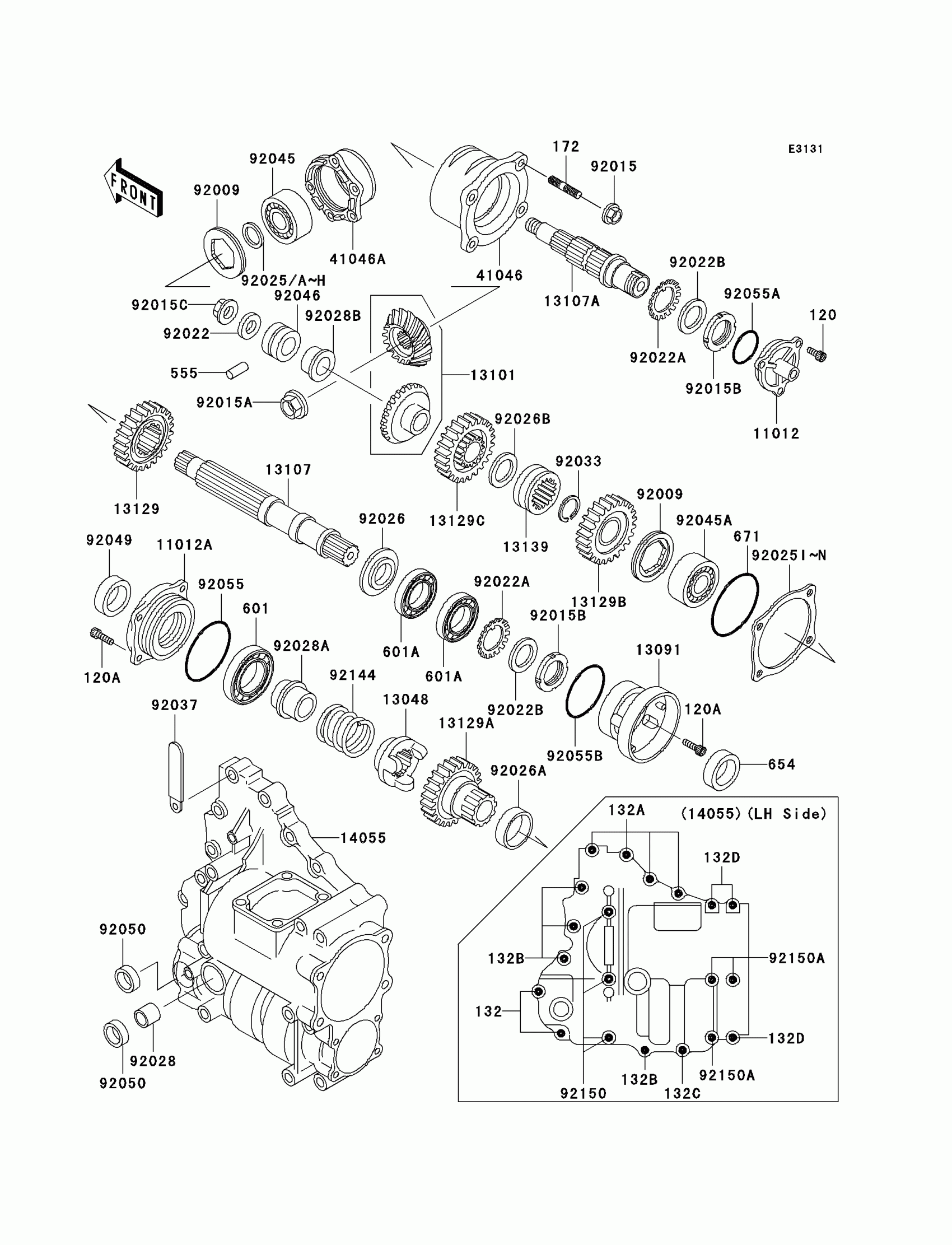

Kawasaki Bayou 300 4X4 (Canada Only) Front Bevel Gear Diagram
#
11012
CAP
11012-1641
$28.99
11012A
CAP
11012-1642
$34.17
13048
CAM-DAMPER
13048-1075
$76.66
13091
HOLDER
13091-1542
$44.83
13101
GEAR-ASSY,BEVEL
13101-5078
$829.99
13107
SHAFT
13107-1227
$233.28
13107A
SHAFT
13107-1228
$207.80
13129
GEAR-TRANSMISSION SPUR,37T
13129-1948
$133.68
13129A
GEAR-TRANSMISSION SPUR,33T
13129-1949
$202.21
13129B
GEAR-TRANSMISSION SPUR
13129-1950
$133.68
13129C
GEAR-TRANSMISSION SPUR
13129-1951
$133.68
13139
SHIFTER
13139-1056
$133.68
14055
CASE-GEAR
14055-1133
$204.20
41046
HOUSING-BEARING
41046-1088
$176.13
41046A
HOUSING-BEARING,GEAR CASE,FR
41046-1098
$125.67
92009
SCREW,55MM
92009-1384
$34.48
92015
NUT,8MM
92015-1402
$4.69
92015A
NUT,16MM
92015-1581
$19.64
92015B
NUT,25MM
92015-1768
$25.27
92015C
NUT,FLANGED,12MM
92015-1911
$8.19
92022
WASHER,12X24X2.3
92022-1890
$5.00
92022A
WASHER,TOOTHED
92022-1990
$6.22
92022B
WASHER,25.3X32X0.5
92022-225
$5.52
92025
SHIM,20.3X28X1.3
92025-1533
Unavailable
92025A
SHIM,20.3X28X0.7
92025-1534
Unavailable
92025B
SHIM,20.3X28X0.8
92025-1535
Unavailable
92025C
SHIM,20.3X28X0.9
92025-1536
Unavailable
92025D
SHIM,20.3X28X1.0
92025-1537
Unavailable
92025E
SHIM,20.3X28X1.2
92025-1538
Unavailable
92025F
SHIM,20.3X28X0.15
92025-1573
Unavailable
92025G
SHIM,20.3X28X0.20
92025-1574
Unavailable
92025H
SHIM,20.3X28X1.1
92025-1575
Unavailable
92025I
SHIM,T=0.10
92025-1897
Unavailable
92025J
SHIM,T=0.15
92025-1898
Unavailable
92025K
SHIM,T=0.50
92025-1899
Unavailable
92025L
SHIM,T=0.80
92025-1900
Unavailable
92025M
SHIM,T=1.00
92025-1901
Unavailable
92025N
SHIM,T=1.20
92025-1902
Unavailable
92026
SPACER
92026-1334
$19.74
92026A
SPACER,40X44X16
92026-1335
$13.07
120
BOLT-SOCKET,6X14
120P0614
$3.82
120A
BOLT-SOCKET,6X20
120P0620
$1.74
132
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
132A
BOLT-FLANGED-SMALL,6X30
132J0630
$3.84
132B
BOLT-FLANGED-SMALL,6X35
132J0635
$3.84
132C
BOLT-FLANGED-SMALL,6X75
132J0675
$4.89
132D
BOLT-FLANGED-SMALL
132J0895
$8.76
172
BOLT-STUD,8X25
172G0825
$3.70
555
PIN-SPRING
555A0432
$1.17
601
BEARING-BALL,#6007C3
601B6007
$27.06
601A
BEARING-BALL,#6205C3
601B6205
$19.57
654
OIL SEAL,BJN30427-C3
654A304208
$13.07
671
O RING
671B2575
$6.88
92026B
SPACER,24.5X36X2.0
92026-1336
$7.31
92028
BUSHING
92028-1347
$8.51
92028A
BUSHING
92028-1539
$71.50
92028B
BUSHING
92028-1540
$37.15
92033
RING-SNAP,28.6MM
92033-1248
$6.87
92037
CLAMP
92037-1679
$5.52
92045
BEARING-BALL,5304
92045-1144
$96.58
92045A
BEARING-BALL,5205
92045-1221
$63.90
92046
BEARING-NEEDLE,RNA4904RE
92046-1182
$45.94
92049
SEAL-OIL
92049-1047
$16.33
92050
SEAL-OIL
92050-082
$8.58
92055
RING-O,57.6X2.4
92055-1038
$7.62
92055A
RING-O,40.2X2.4
92055-1405
$5.24
92055B
RING-O,47.2X2.4
92055-1406
$5.59
92144
SPRING
92144-1273
$30.49
92150
BOLT,8X85
92150-1104
$8.19
92150A
BOLT,8X110
92150-1105
$9.21
