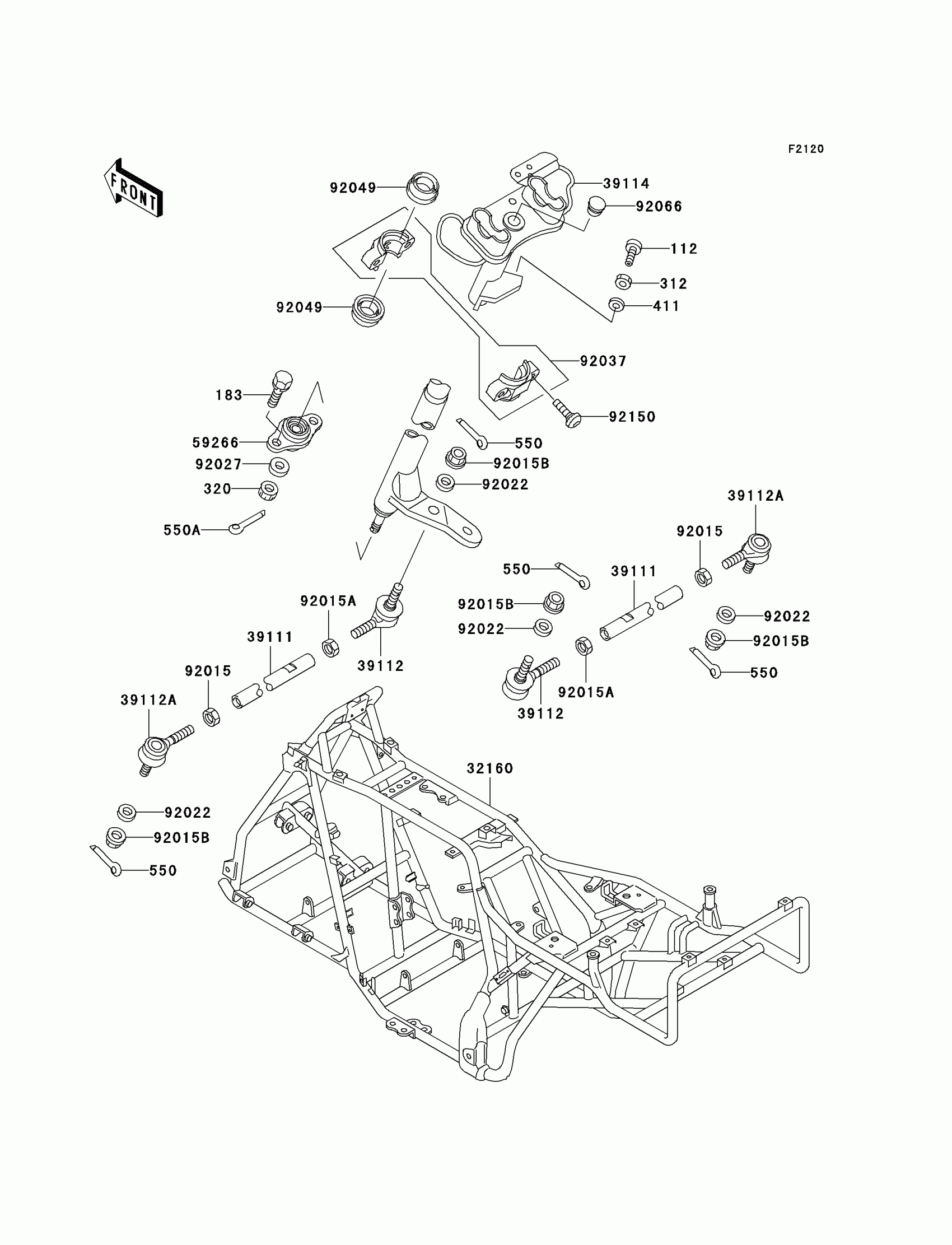

Kawasaki Bayou 300 4X4 (Canada Only) Frame Diagram

Description

Price

112

BOLT-UPSET

112P0620

$4.46

183

BOLT-UPSET-WS-SMALL

183G0822

$5.21

312

NUT 6MM

312B0600

$0.72

320

NUT-CASTLE

320H1000

$7.88

411

WASHER PLAIN 6MM

411B0600

Unavailable

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,2.5X18

550D2518

$0.59

32160

FRAME-COMP

32160-1467

Unavailable

39111

ROD-TIE

39111-1090

$32.37

39112

RODEND-TIE

39112-1063

$92.76

39112A

RODEND-TIE

39112-1064

$92.76

39114

SHAFT-COMP-STRG

39114-1068

$236.75

59266

JOINT-BALL

59266-1066

Unavailable

92015

NUT,LOCK,10MM

92015-1460

$6.52

92015A

NUT,LOCK,10MM

92015-1494

$6.22

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92022

WASHER,10.5X20X1

92022-239

$3.92

92027

COLLAR,10X21.3X7

92027-1817

$15.14

92037

CLAMP,STEERING SHAFT

92037-1975

$69.53

92049

SEAL-OIL,SR7 25 34 7.8 NS

92049-1278

$7.29

92066

PLUG

92066-1220

$4.96

92150

BOLT

92150-1058

$7.29
