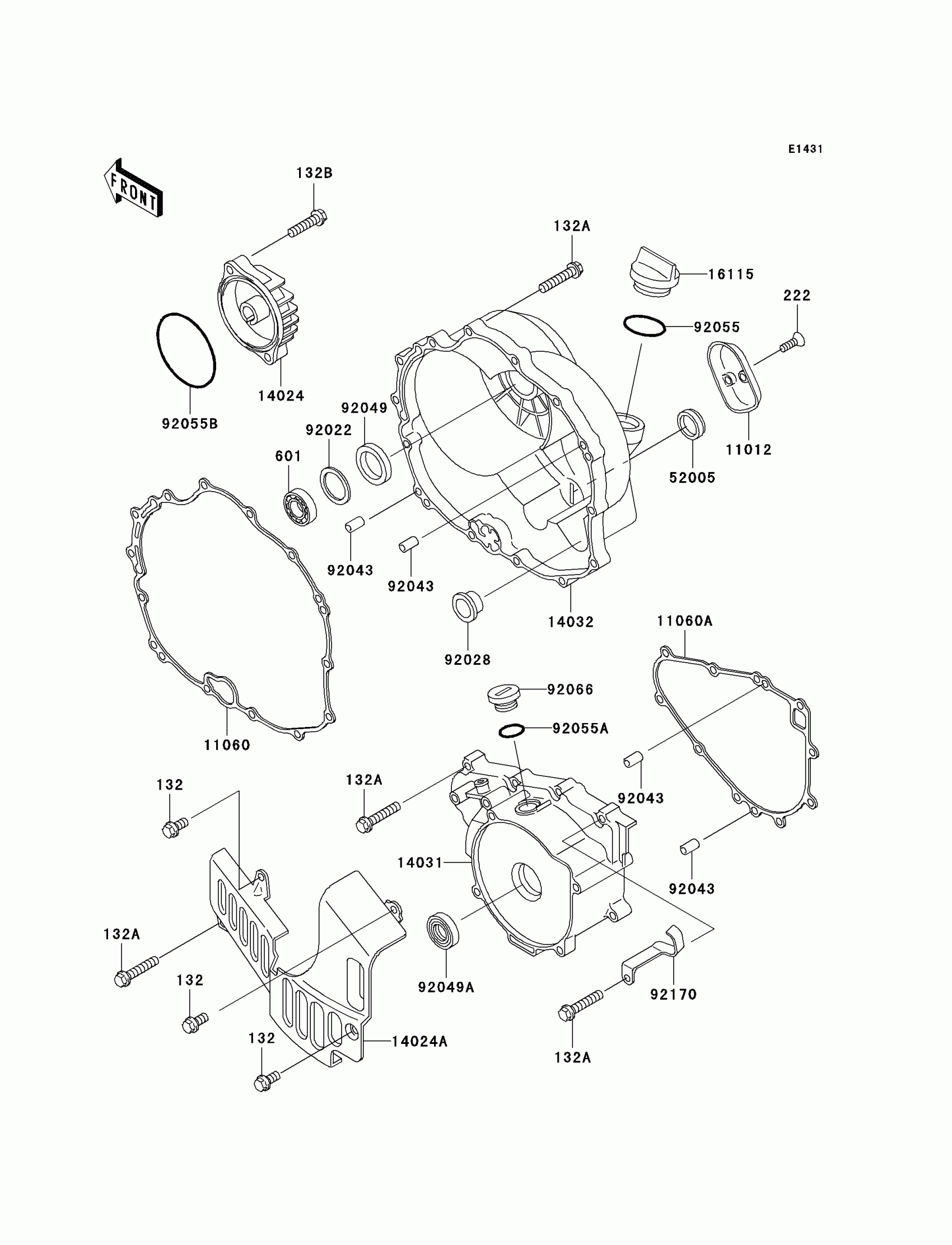

Kawasaki Bayou 300 4X4 (Canada Only) Engine Cover(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

132A

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

132B

BOLT-FLANGED-SMALL,6X25

132Y0625

$5.02

222

SCREW-CSK-RD-CROS

222C0512

$4.15

601

BEARING-BALL,#6202C3

601B6202

$8.64

11012

CAP,CLUTCH RELEASE

11012-1644

$21.93

11060

GASKET,CLUTCH COVER

11060-1715

$25.67

11060A

GASKET,GENERATOR COVER

11060-1716

$11.04

14024

COVER,OIL FILTER

14024-1062

$56.15

14024A

COVER

14024-1655

$71.21

14031

COVER-GENERATOR

14031-1337

$156.98

14032

COVER-CLUTCH

14032-1450

$216.64

16115

CAP-OIL FILLER

16115-1009

$14.30

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92022

WASHER,25.3X33X1

92022-1109

$5.96

92028

BUSHING

92028-1544

$15.24

92043

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,SCY 15X30X7

92049-1158

$25.27

92049A

SEAL-OIL,TC25356

92049-1317

$13.97

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,20X2

92055-1146

$8.58

92055B

RING-O,63.6X2.4

92055-1433

$10.14

92066

PLUG,COVER

92066-1163

$14.76

92170

CLAMP

92170-1065

Unavailable
