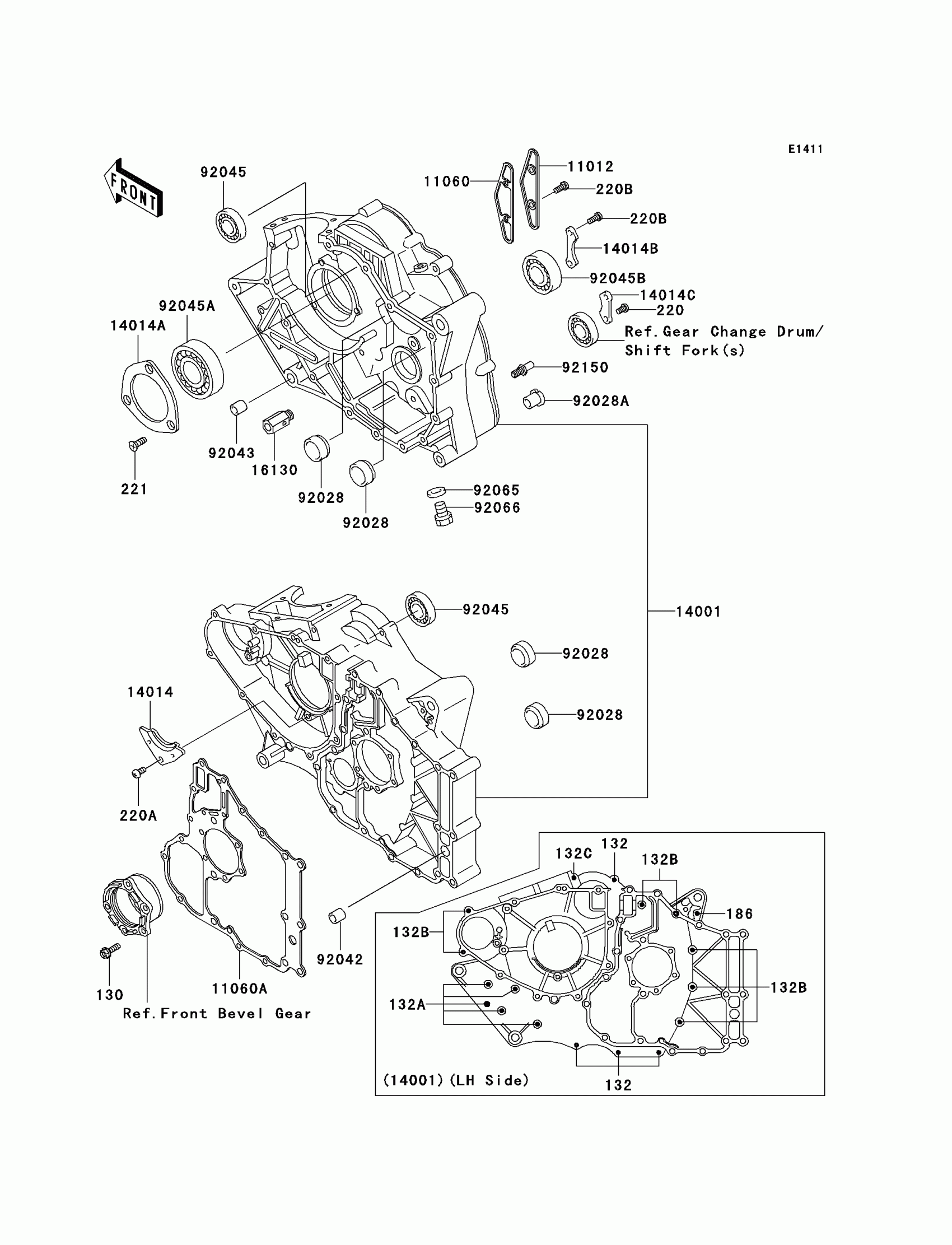

Kawasaki Bayou 300 4X4 (Canada Only) Crankcase Diagram

#

Description
Price

130

BOLT-FLANGED,6X20

130P0620

$1.70

132

BOLT-FLANGED-SMALL,6X35

132Y0635

$3.84

132A

BOLT-FLANGED-SMALL,6X55

132Y0655

$4.71

132B

BOLT-FLANGED-SMALL

132Y0665

$4.44

132C

BOLT-FLANGED-SMALL

132Y0685

$5.82

186

BOLT-UPSET-WP

186D0614

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

$3.14

220A

SCREW PAN HEAD 6X12

220B0612

Unavailable

220B

SCREW-PAN-CROS,6X14

220B0614

$1.48

221

SCREW-CSK-CROS,6X16

221B0616

$0.59

11012

CAP

11012-1643

$11.40

11060

GASKET,OIL LINE CAP

11060-1713

$4.18

11060A

GASKET,GEAR CASE

11060-1714

$25.67

14001

SET-CRANKCASE

14001-5325

$925.70

14014

PLATE,POSITIONING

14014-035

$5.24

14014A

PLATE-POSITION,CRANK BEARING

14014-1004

$11.61

14014B

PLATE-POSITION

14014-1069

$6.16

14014C

PLATE-POSITION,CHANGE DRUM

14014-1070

$7.22

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

92028

BUSHING,23X30X13

92028-132

$38.06

92028A

BUSHING

92028-1386

$17.40

92042

PIN,DOWEL,12X14

92042-031

$6.57

92043

PIN,11.5X14X14

92043-1279

$5.00

92045

BEARING-BALL,6004TMB

92045-1118

$23.76

92045A

BEARING-BALL

92045-1172

$48.87

92045B

BEARING-BALL

92045-1173

$40.43

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92150

BOLT,RETURN SPRING

92150-1106

$12.76
