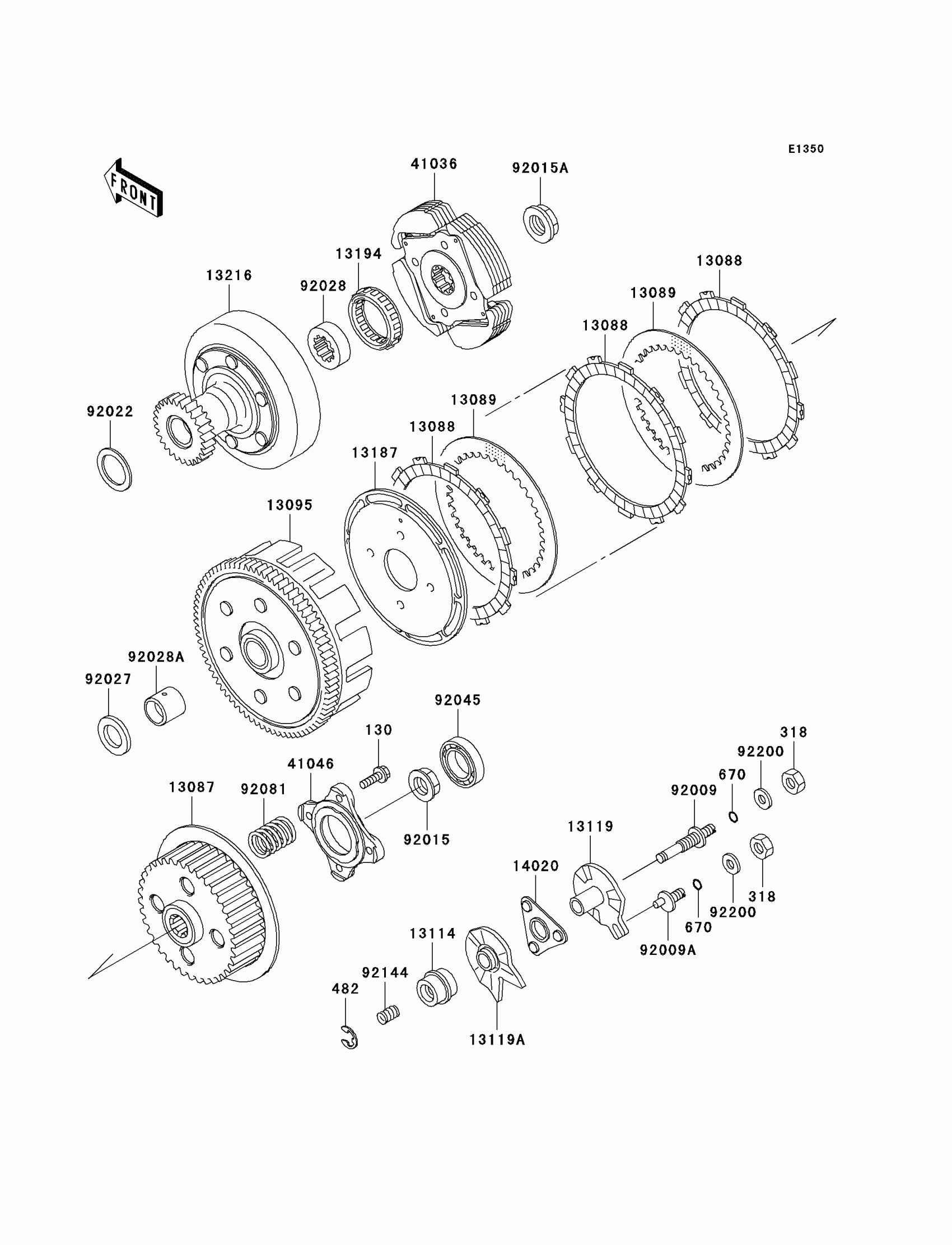

Kawasaki Bayou 300 4X4 (Canada Only) Clutch Diagram

#

Description
Price

130

BOLT-FLANGED,6X20

130P0620

$1.22

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

482

CIRCLIP-TYPE-E,7MM

482J7000

$0.76

670

O RING,8MM

670B1508

$1.00

13087

HUB-CLUTCH

13087-1065

$112.15

13088

PLATE,CLUTCH FRICTION

13088-041

Unavailable

13089

PLATE-CLUTCH,T=2.0

13089-1005

$9.73

13095

HOUSING-COMP-CLUTCH

13095-1364

$212.13

13114

PUSHER-CLUTCH

13114-1060

$23.83

13119

CAM-RELEASE

13119-1067

$52.55

13119A

CAM-RELEASE

13119-1070

$48.38

13187

PLATE-CLUTCH OPERATING

13187-1081

$72.93

13194

CLUTCH-ONEWAY

13194-1055

$126.70

13216

GEAR-COMP,CLUTCH,FR

13216-1185

$211.63

14020

RETAINER,CLUTCH RELEASE

14020-1092

$19.69

41036

HUB-ASSY,CLUTCH,FR

41036-1286

$432.81

41046

HOUSING-BEARING

41046-1063

$61.06

92009

SCREW

92009-1525

Unavailable

92009A

SCREW

92009-1526

$23.68

92015

NUT,16MM

92015-1465

$14.01

92015A

NUT,18MM

92015-1512

$14.25

92022

WASHER,27.3X38X0.8

92022-1989

$4.19

92027

COLLAR,20.5X34X4

92027-1888

$18.36

92028

BUSHING,CLUTCH,FR

92028-1370

$40.06

92028A

BUSHING,CLUTCH

92028-1371

$32.44

92045

BEARING-BALL,#6905

92045-036

$22.57

92081

SPRING,CLUTCH

92081-1848

$9.47

92144

SPRING

92144-1272

$4.58

92200

WASHER,8.5X18X2.3

92200-1213

$1.85
