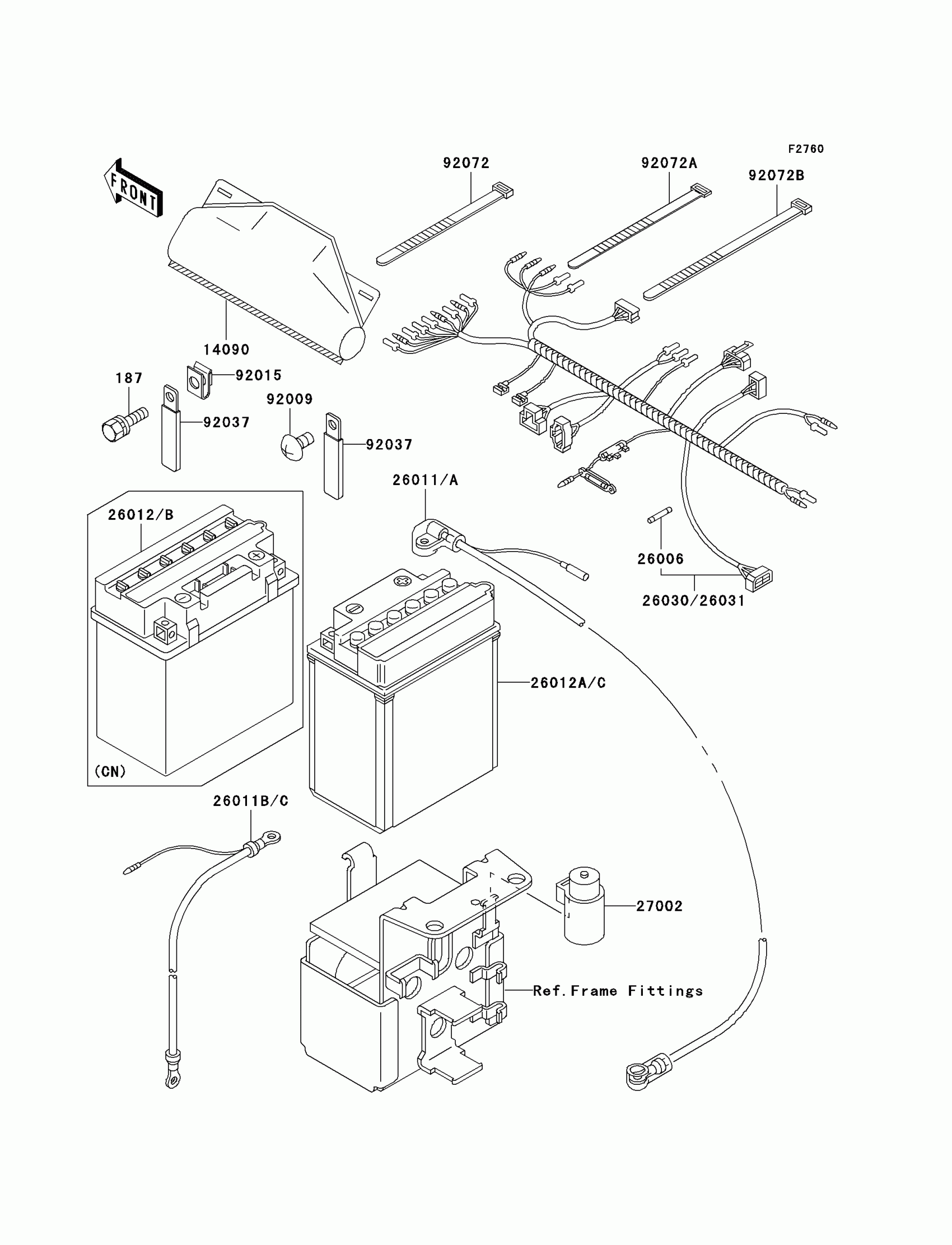

Kawasaki Bayou 300 4X4 (Canada Only) Chassis Electrical Equipment Diagram

Description

Price

187

BOLT-UPSET-WSP

187C0614

Unavailable

14090

COVER,COUPLER

14090-1611

$8.51

26006

FUSE,30A,L=30

26006-1059

$4.96

26011

WIRE-LEAD,BATTERY(+)

26011-1544

Unavailable

26011C

WIRE-LEAD,BATTERY(-)

26011-1560

$30.69

26012

BATTERY,YB16CL-B,12V 19AH

26012-0002

$124.91

26031

HARNESS,MAIN

26031-0045

$141.62

27002

RELAY-ASSY

27002-1095

$58.83

92009

SCREW,TAPPING,4X8

92009-1155

$2.97

92015

NUT,6MM

92015-1671

$7.61

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=188

92072-1239

$1.73
