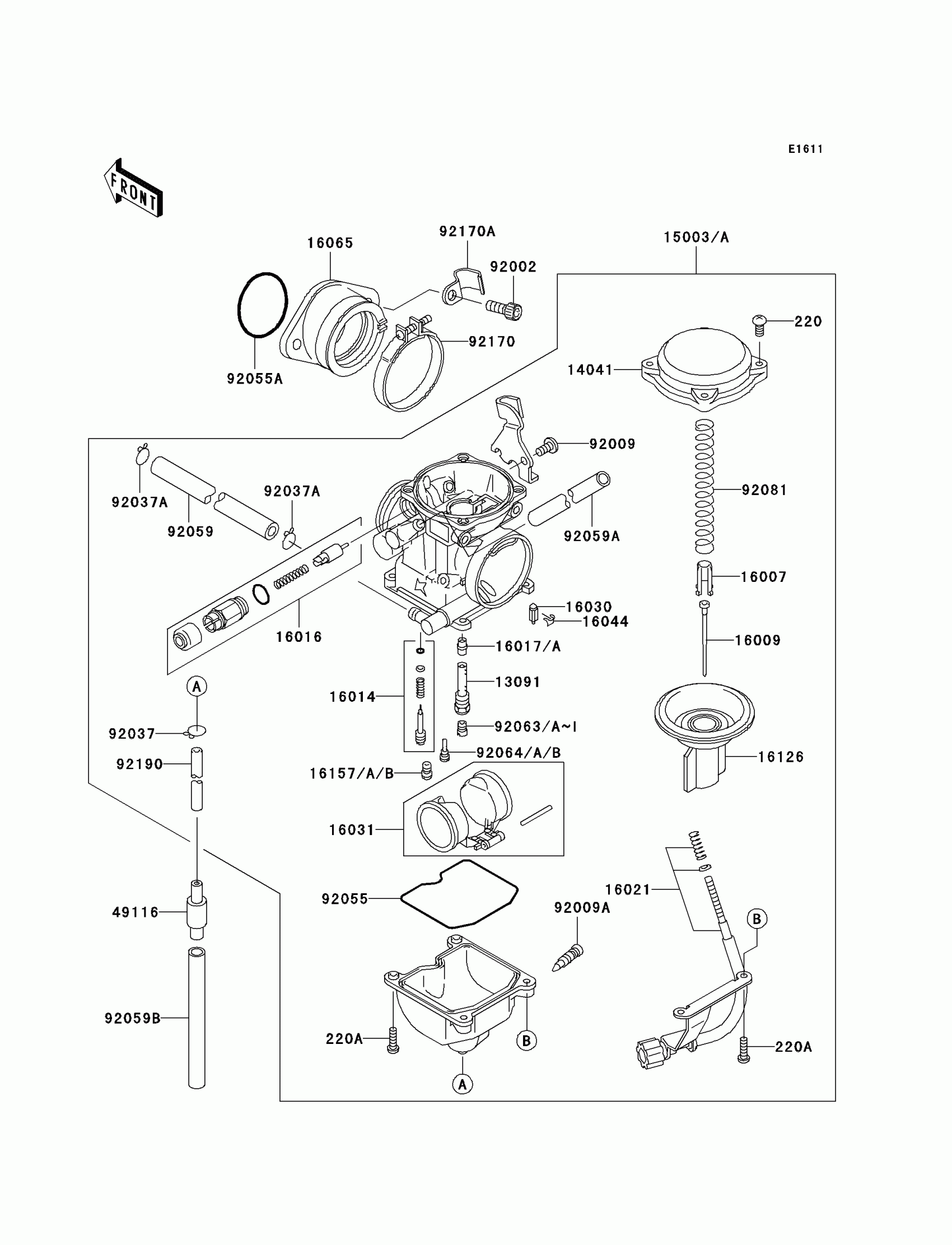

Kawasaki Bayou 300 4X4 (Canada Only) Carburetor Diagram
#
13091
HOLDER,NEEDLE JET
13091-1259
$33.38
14041
TOP-CHAMBER,MIXING,INSIDE
14041-1077
$95.95
15003
CARBURETOR-ASSY
15003-1742
$689.97
16007
SEAT-SPRING,THROTTLE VALVE
16007-1120
$26.23
16009
NEEDLE-JET,N24G
16009-1927
$37.53
16014
SCREW-PILOT AIR
16014-1081
$24.57
16016
PLUNGER,STARTER
16016-1101
$58.52
16017
JET-NEEDLE,#6
16017-1270
$49.12
16021
SCREW-THROTTLE STOP
16021-1175
$120.11
16030
VALVE-FLOAT
16030-1007
$47.99
16031
FLOAT
16031-1077
$53.59
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
16065
HOLDER-CARBURETOR
16065-1301
$39.20
16126
VALVE,VACUUM
16126-1199
$200.34
16157
JET-STARTER,#65
16157-1063
$24.98
16157A
JET-STARTER,#68
16157-1064
$24.98
16157B
JET-STARTER,#70
16157-1065
$24.98
49116
VALVE-ASSY
49116-1126
$20.77
92002
BOLT,6X16
92002-1143
$3.92
92009
SCREW,5X10
92009-1365
$7.34
92009A
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92037
CLAMP,TUBE
92037-1201
$4.60
92037A
CLAMP,TUBE
92037-1531
$5.52
92055
RING-O,FLOAT CHAMBER
92055-1222
$17.44
92055A
RING-O,38MM
92055-1295
$16.33
92059
TUBE,6.5X11.5X150
92059-1463
$35.06
92059A
TUBE,6.5X9.5X430
92059-1727
$30.56
92059B
TUBE,7X10X100
92059-1736
$4.46
92063
JET-MAIN,#140
92063-1013
$14.10
92063A
JET-MAIN,#135
92063-1014
$14.10
220
SCREW PAN HEAD 4X8
220B0408
$0.67
220A
SCREW-PAN-CROS,4X14
220D0414
$4.60
92063B
JET-MAIN,#138
92063-1015
$14.10
92063C
JET-MAIN,#142
92063-1016
$14.10
92063I
JET-MAIN,#132
92063-1076
$14.10
92064
JET-PILOT,#35
92064-1101
$17.03
92064A
JET-PILOT,#38
92064-1119
$19.05
92064B
JET-PILOT,#40
92064-1125
$19.05
92081
SPRING,VACUUM VALVE
92081-1775
$25.81
92170
CLAMP
92170-1438
$8.98
92170A
CLAMP
92170-1552
$5.59
92190
TUBE,4.5X8X330
92190-1557
$15.47
