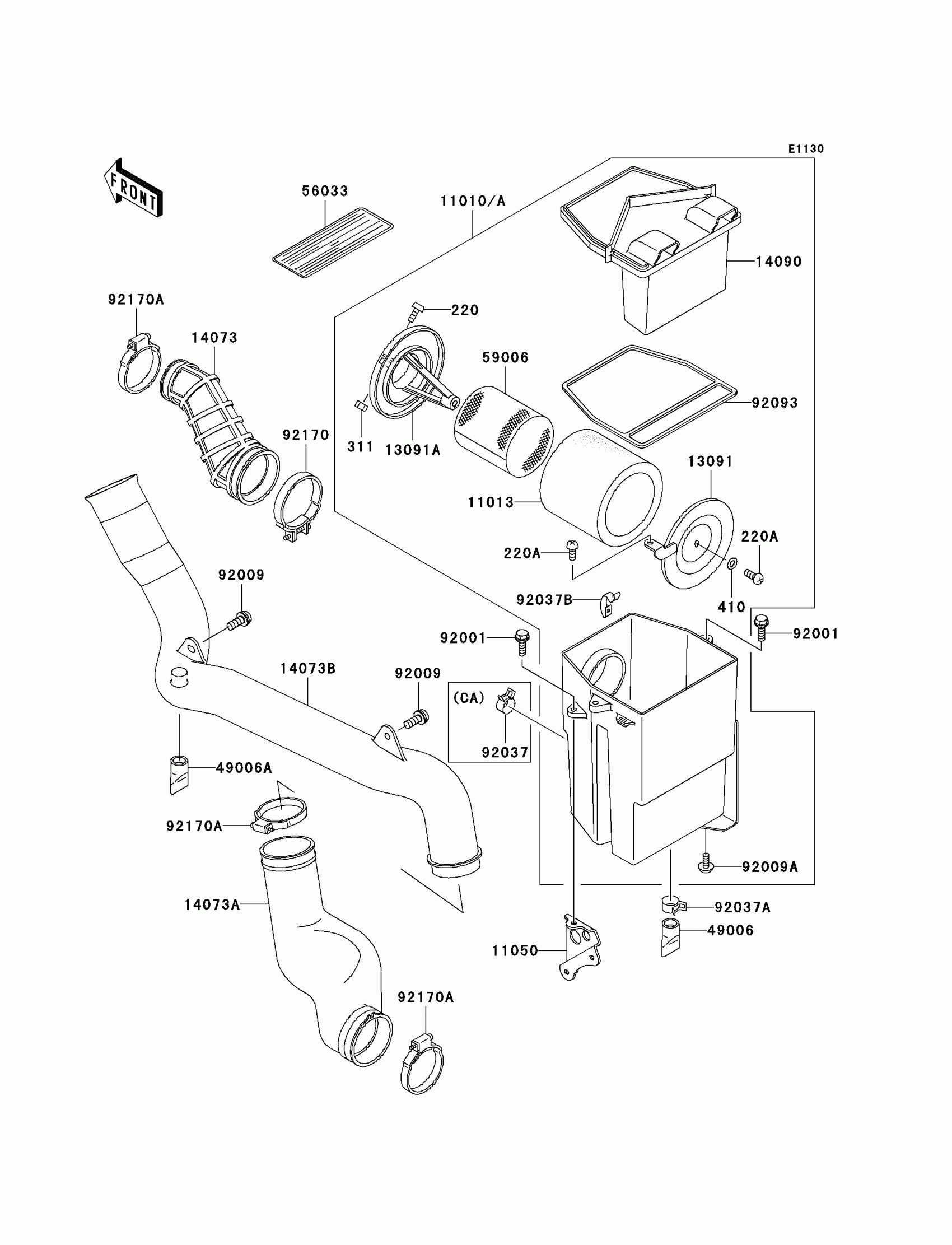

Kawasaki Bayou 300 4X4 (Canada Only) Air Cleaner Diagram

Description

Price

220

SCREW PAN HEAD 5X16

220B0516

$1.49

220A

SCREW-PAN-CROS,6X14

220B0614

$1.14

311

NUT-HEX

311B0500

$0.47

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

11010

FILTER-ASSY-AIR

11010-1650

$268.78

11013

ELEMENT-AIR FILTER

11013-1275

$9.04

11050

BRACKET

11050-1979

$14.88

13091

HOLDER,ELEMENT

13091-1488

$16.08

13091A

HOLDER,AIR FILTER ELEMENT

13091-1565

$14.06

14073

DUCT,AIR

14073-1359

Unavailable

14073A

DUCT,AIR FILTER

14073-1676

$119.28

14073B

DUCT,SNORKEL

14073-1677

$208.64

14090

COVER,AIR FILTER

14090-1775

$46.56

49006

BOOT

49006-1199

Unavailable

49006A

BOOT

49006-1292

$5.93

56033

LABEL-MANUAL,MAINTENANCE

56033-1079

$2.20

59006

ARRESTER-FLAME

59006-1052

$33.70

92001

BOLT,6X20

92001-1460

$2.99

92009

SCREW,6X16

92009-1276

$4.25

92009A

SCREW,TAPPING,5X10

92009-1332

$2.99

92037A

CLAMP,HOSE CLIP

92037-1460

$8.23

92037B

CLAMP,AIR FILTER

92037-1783

$6.71

92093

SEAL,AIR FILTER

92093-1241

$9.85

92170

CLAMP

92170-1149

$8.65

92170A

CLAMP

92170-1674

$8.94
