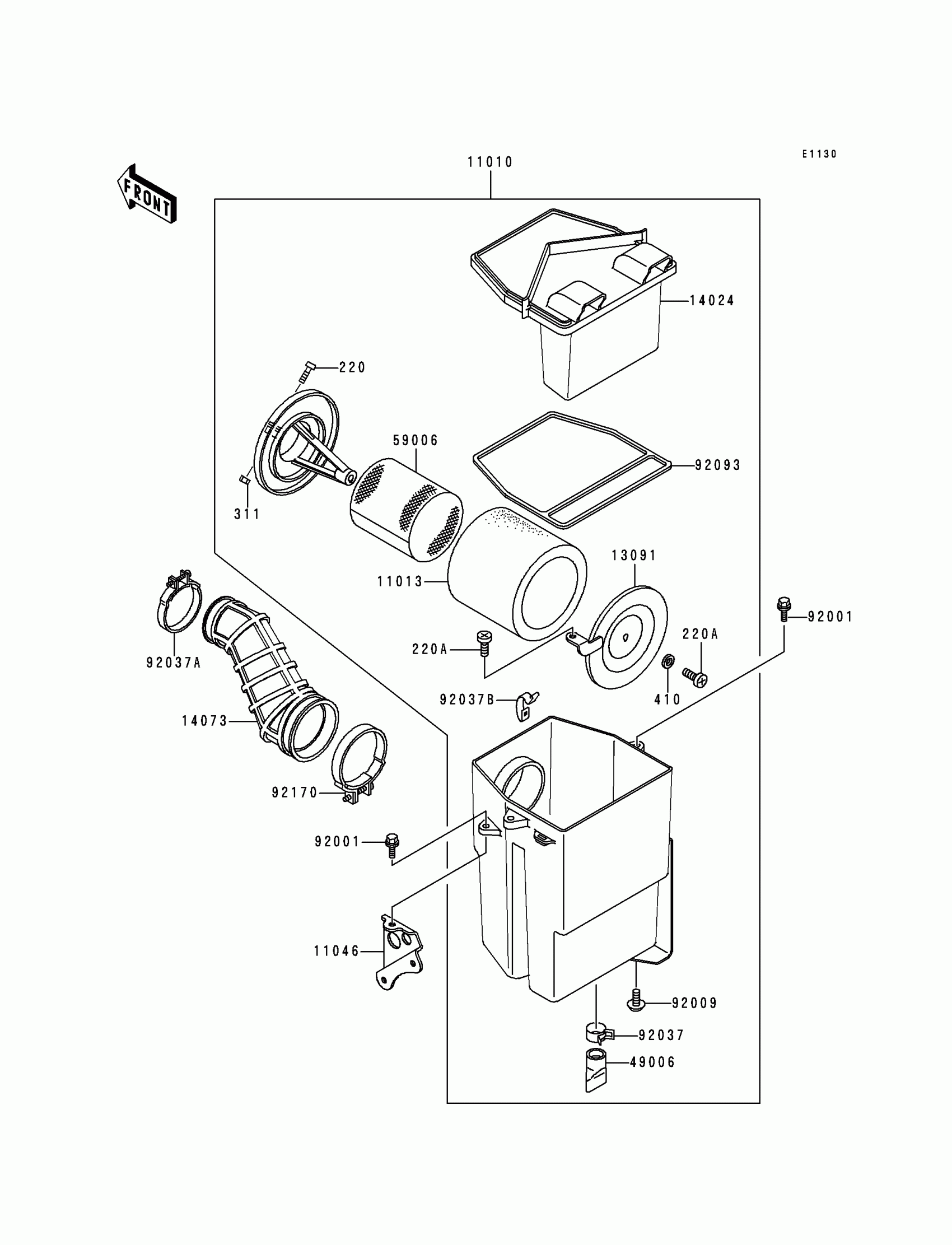

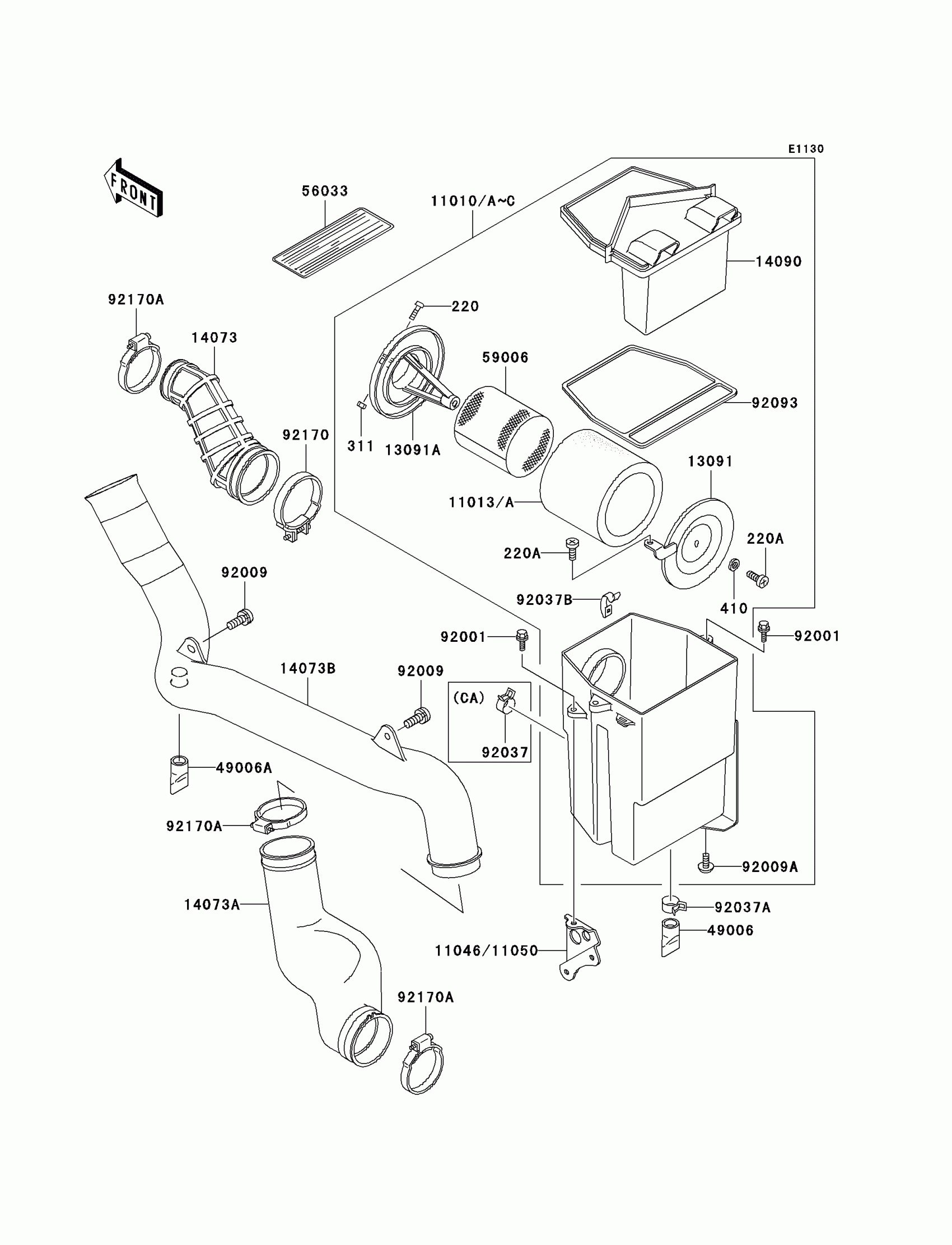

Kawasaki Bayou 300 4X4 Air Cleaner Diagram
#
Description
Price
220
SCREW PAN HEAD 5X16
220B0516
$2.06
220A
SCREW-PAN-CROS,6X14
220B0614
$1.48
311
NUT-HEX
311B0500
$0.47
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
11013A
ELEMENT-AIR FILTER
11013-1275
$11.89
11050
BRACKET
11050-1979
$15.74
13091
HOLDER,ELEMENT
13091-1488
$19.96
13091A
HOLDER,AIR FILTER ELEMENT
13091-1565
$18.63
14073
DUCT,AIR
14073-1359
$37.60
14073A
DUCT,AIR FILTER
14073-1676
$116.85
14073B
DUCT,SNORKEL
14073-1677
$204.33
14090
COVER,AIR FILTER
14090-1775
$45.68
49006
BOOT
49006-1199
$8.64
49006A
BOOT
49006-1292
$7.77
56033
LABEL-MANUAL,MAINTENANCE
56033-1079
$2.70
59006
ARRESTER-FLAME
59006-1052
$37.78
92001
BOLT,6X20
92001-1460
$3.92
92009
SCREW,6X16
92009-1276
$4.80
92009A
SCREW,TAPPING,5X10
92009-1332
$3.92
92037A
CLAMP,HOSE CLIP
92037-1460
$10.81
92037B
CLAMP,AIR FILTER
92037-1783
$8.80
92093
SEAL,AIR FILTER
92093-1241
$12.96
92170
CLAMP
92170-1149
$11.37
92170A
CLAMP
92170-1674
$11.76
11010B
FILTER-ASSY-AIR
11010-1650
$263.19
11010C
FILTER-ASSY-AIR
11010-1651
$275.89
92037
CLAMP,HOSE CLIP
92037-1181
$3.36
