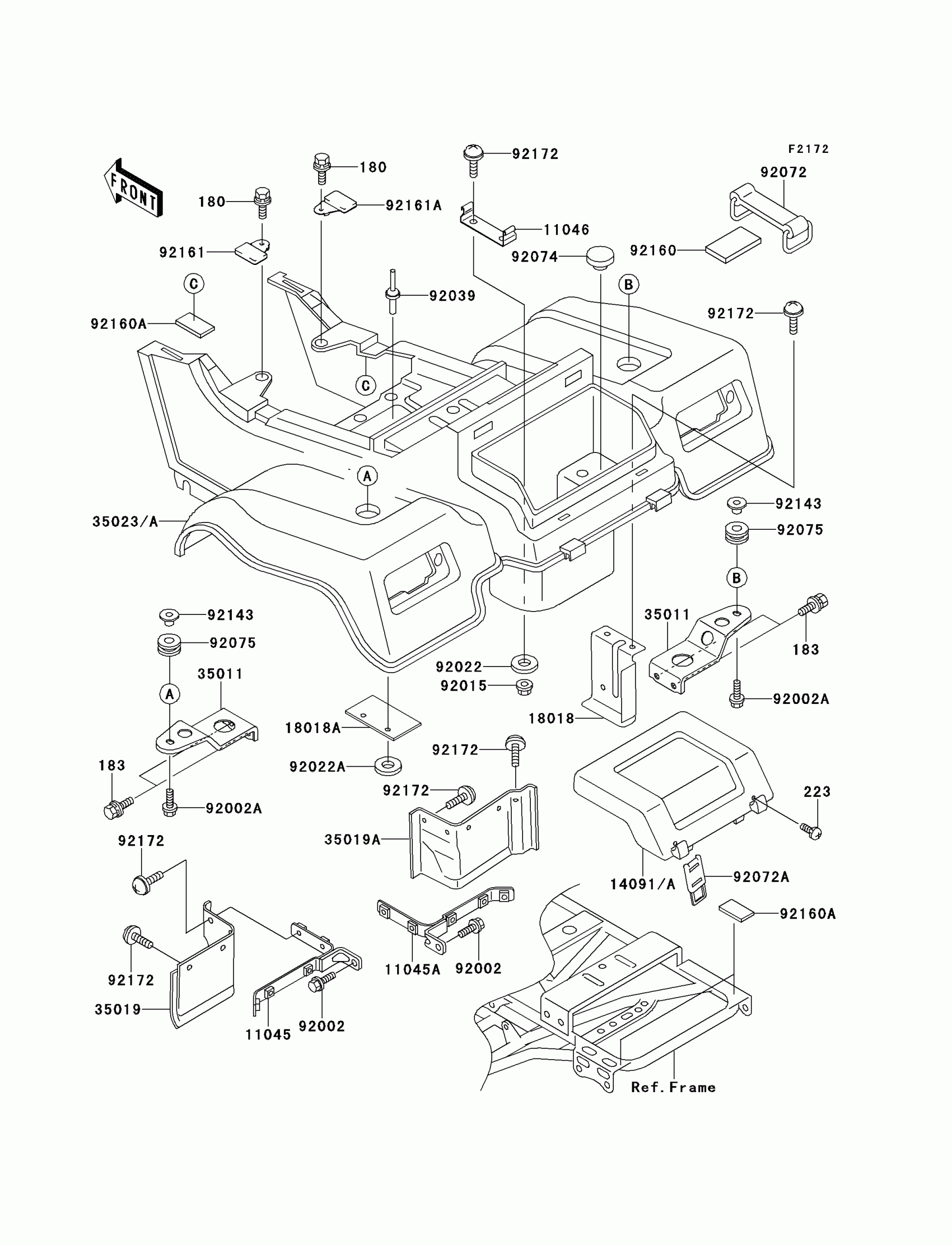

Kawasaki Bayou® 250 Rear Fender(s) Diagram
#
Description
Price
11045
BRACKET,REAR FLAP,LH
11045-1731
$28.36
11045A
BRACKET,REAR FLAP,RH
11045-1732
$28.36
11046
BRACKET,TOOL BAND
11046-1451
$8.38
14091
COVER,REAR FENDER,D.R.RED
14091-1258-16L
$41.79
14091A
COVER,REAR FENDER,S.BLUE
14091-1258-16V
$41.79
18018
PLATE-HEAT GUARD
18018-1075
$26.92
18018A
PLATE-HEAT GUARD
18018-1079
$9.35
35011
STAY,REAR FENDER
35011-1363
$28.62
35019
FLAP,RR,LH
35019-1253
$24.40
35019A
FLAP,RR,RH
35019-1254
$24.40
35023
FENDER-REAR,D.R.RED
35023-0133-16L
$159.58
35023A
FENDER-REAR,S.BLUE
35023-0133-16V
$159.58
92002
BOLT,6X14
92002-1351
$4.31
92002A
BOLT,8X25
92002-1591
$5.00
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92022
WASHER,6.5X20X1.6
92022-1804
$1.40
92022A
WASHER
92022-4017
$0.82
92039
RIVET,POP
92039-4006
$1.36
92071
GROMMET
92071-1237
$7.90
92072
BAND
92072-1085
$18.15
92072A
BAND
92072-1227
$7.29
92074
PLUG,11X3.2
92074-038
$7.22
92075
DAMPER
92075-1898
$4.69
92143
COLLAR,MUFFLER FITTING
92143-1069
$10.28
92160
DAMPER,TOOL KIT
92160-1076
$8.24
92160A
DAMPER
92160-1102
$1.38
92161
DAMPER,RR FENDER,LH
92161-1308
$13.79
180
BOLT-UPSET-WS,6X18
180AA0618
$0.89
183
BOLT-UPSET-WS-SMALL,8X14
183BB0814
$5.07
223
SCREW-PAN-WS-CROS,4X6
223AB0406
$4.13
92161A
DAMPER,RR FENDER,RH
92161-1309
$13.79
92172
SCREW,6X14
92172-0004
$2.80
