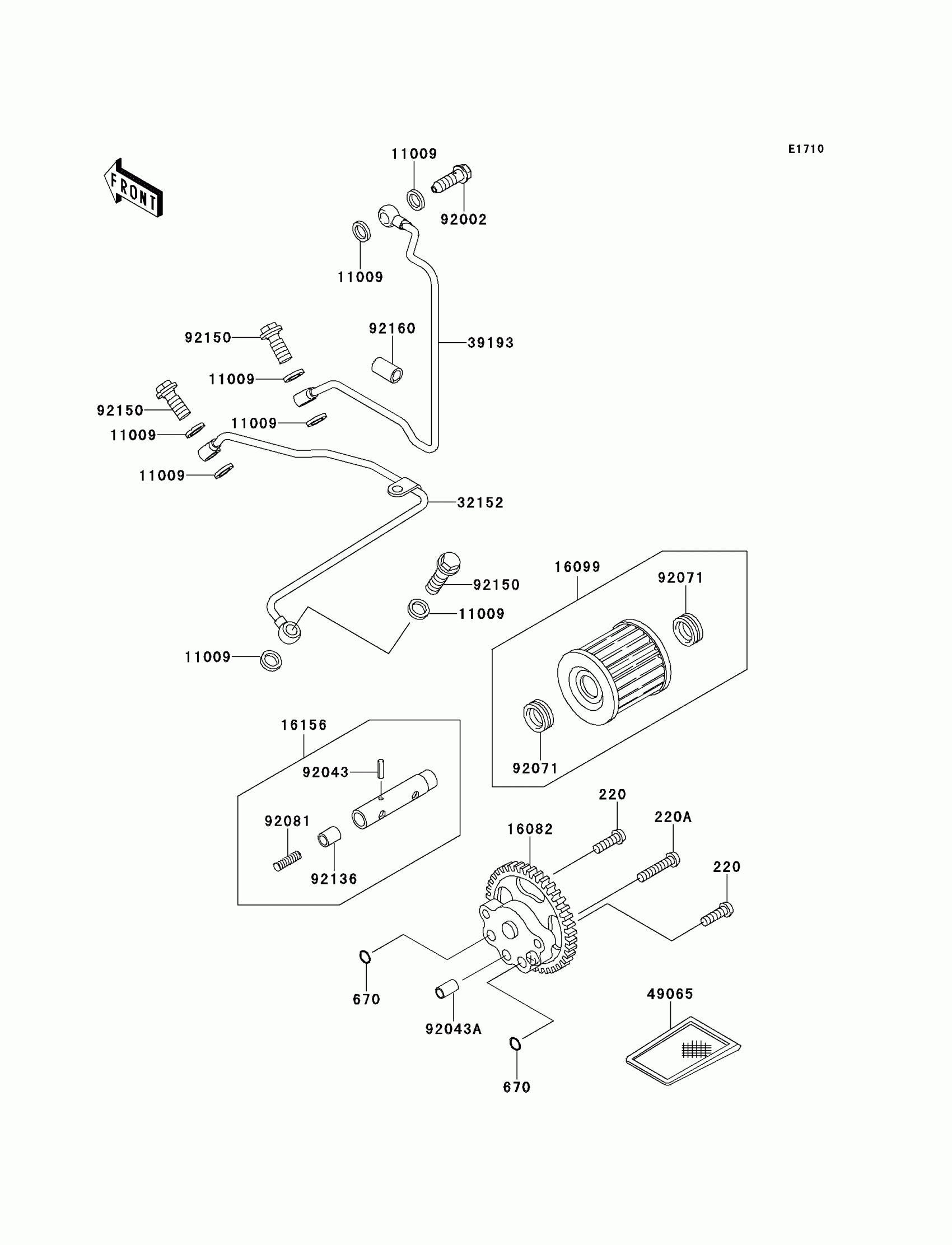

Kawasaki Bayou® 250 Oil Pump/Oil Filter Diagram

Description

Price

220

SCREW-PAN-CROS,6X20

220AA0620

$5.82

220A

SCREW-PAN-CROS,6X30

220AA0630

$3.67

670

O RING,9.8X1.9

670B1510

$4.31

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

16082

PUMP-ASSY-OIL

16082-0005

$184.56

16099

ELEMENT-OIL FILTER

16099-004

$9.26

16156

PISTON-ASSY,VALVE,BY-PASS

16156-002

$23.25

32152

PIPE,TRANSMISSION

32152-1182

$56.72

39193

PIPE-OIL,CYLINDER HEAD

39193-1070

$70.06

49065

FILTER-OIL

49065-1086

$13.66

92002

BOLT,BANJO,8X25

92002-1987

$15.39

92043

PIN,SPRING,2.2X13.5

92043-123

$4.69

92043A

PIN,6.2X8X14

92043-1263

$0.43

92071

GROMMET,OIL FILTER

92071-101

$5.46

92081

SPRING,PISTON

92081-043

$5.46

92136

VALVE

92136-002

$4.65

92150

BOLT,BANJO,8X20

92150-1557

$10.14

92160

DAMPER,4.5X11X20

92160-1074

$7.45
