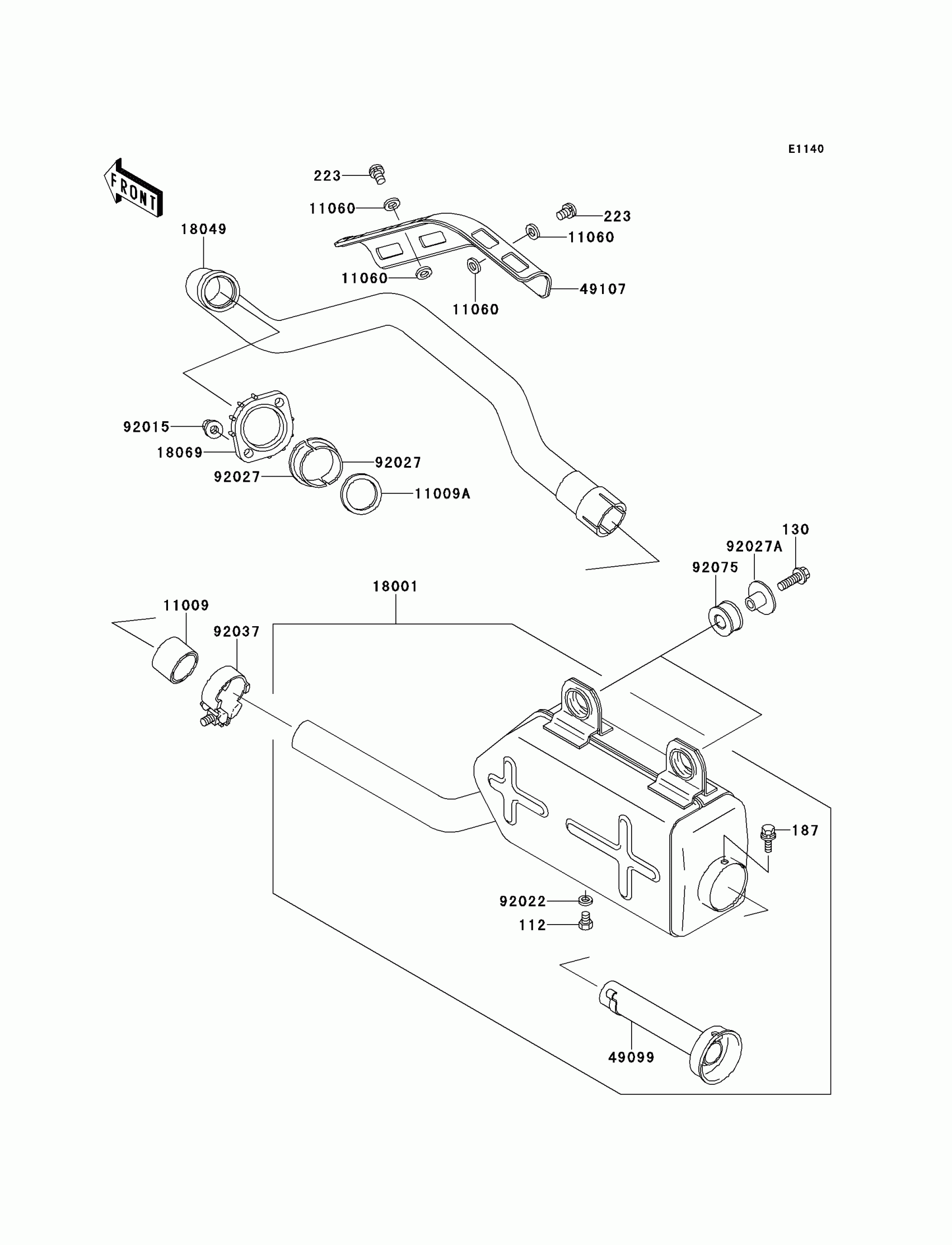

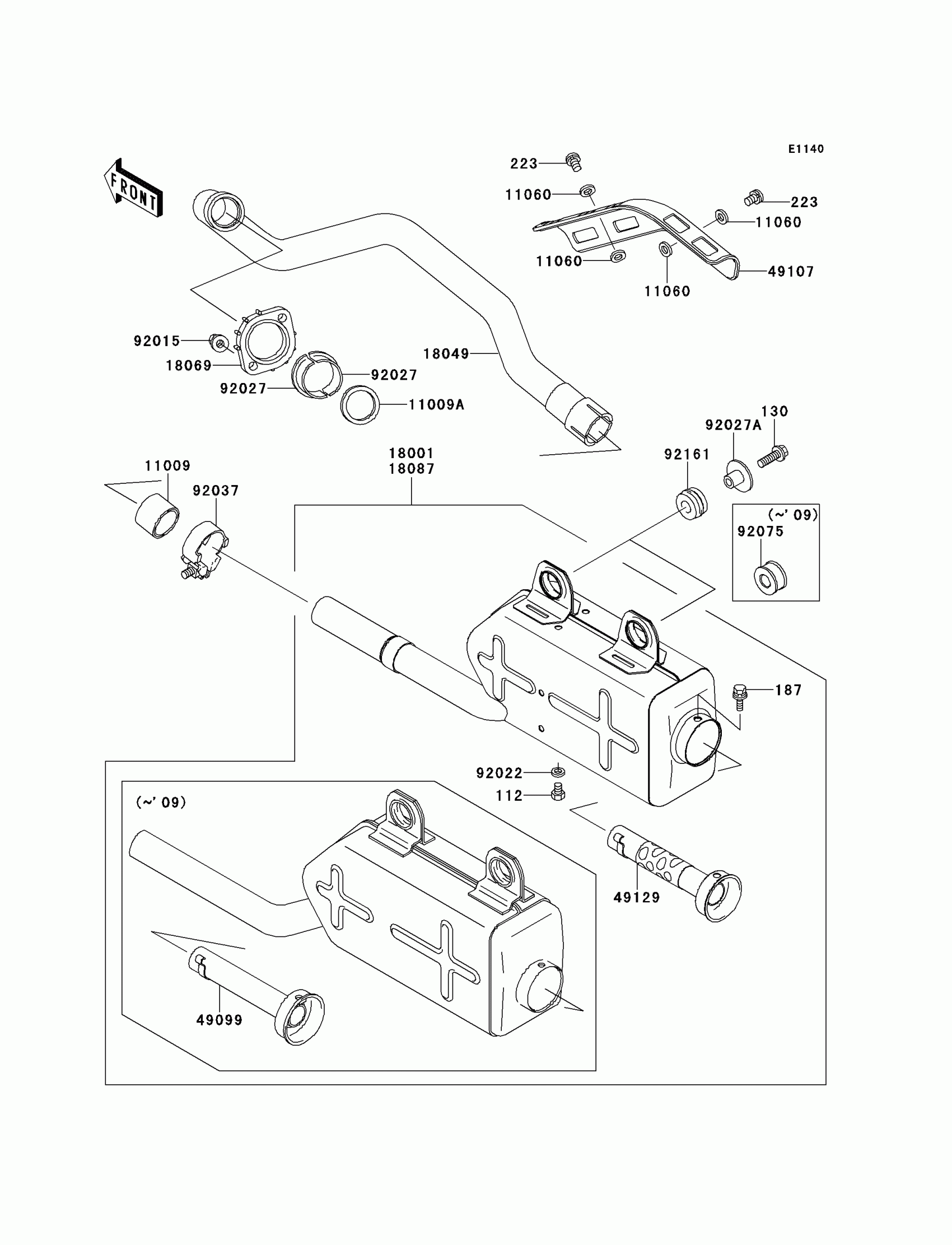

Kawasaki Bayou® 250 Muffler(s) Diagram

Description

Price

112

BOLT-UPSET,6X8

112AA0608

$0.68

130

BOLT-FLANGED,8X30

130BB0830

$4.49

187

BOLT-UPSET-WSP,6X12

187AA0612

$1.17

223

SCREW-PAN-WS-CROS,6X10

223AB0610

$4.12

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$27.27

11009A

GASKET,EXHAUST PIPE H

11009-1866

$8.25

11060

GASKET,6.2X11.5X1.5

11060-1109

$4.26

18049

PIPE-EXHAUST

18049-1415

$110.48

18069

HOLDER-EXHAUST PIPE

18069-1078

$27.28

18087

MUFFLER

18087-0228

$799.17

49107

COVER-EXHAUST PIPE

49107-1074

$37.11

49129

BAFFLE-PIPE MUFFLER

49129-0428

$112.69

92015

NUT,6MM

92015-1365

$5.00

92022

WASHER,6.2X11X1

92022-304

$3.65

92027

COLLAR,L=14.5

92027-1142

$5.00

92027A

COLLAR,MUFFLER

92027-1981

$10.76

92037

CLAMP

92037-1956

$20.75

92161

DAMPER,MUFFLER

92161-1292

$9.87
