Description

Price

13168

LEVER,REVERSE LOCK

13168-1760

$80.07

14024

COVER,KEY

14024-1551

$6.29

23016

LAMP-ASSY,NEUTRAL&REVERSE

23016-1083

$58.77

27005

SWITCH-ASSY-IGNITION

27005-0002

$126.77

27008

KEY-LOCK,BLANK

27008-1041

$17.98

27008A

KEY-LOCK,BLANK

27008-1042

$17.98

27008B

KEY-LOCK,BLANK

27008-1043

$17.98

27008C

KEY-LOCK,BLANK

27008-1044

$17.98

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

$18.72

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

$18.72

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

$18.72

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

$18.72

27010

SWITCH,REAR BRAKE

27010-0008

$33.83

32059

BRACKET-SWITCH,REAR BRAKE

32059-1106

$23.34

92009

SCREW,TAPPING,4X12

92009-1533

$5.33

92022

WASHER,PLAIN,4MM

92022-1947

$5.00

92069

BULB,12V 3W,T7

92069-1020

$6.52

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=188

92072-1239

$1.73

92145

SPRING,REAR BRAKE SWITCH

92145-0061

$9.56

92210

NUT,IGNITION SWITCH

92210-1109

$6.22

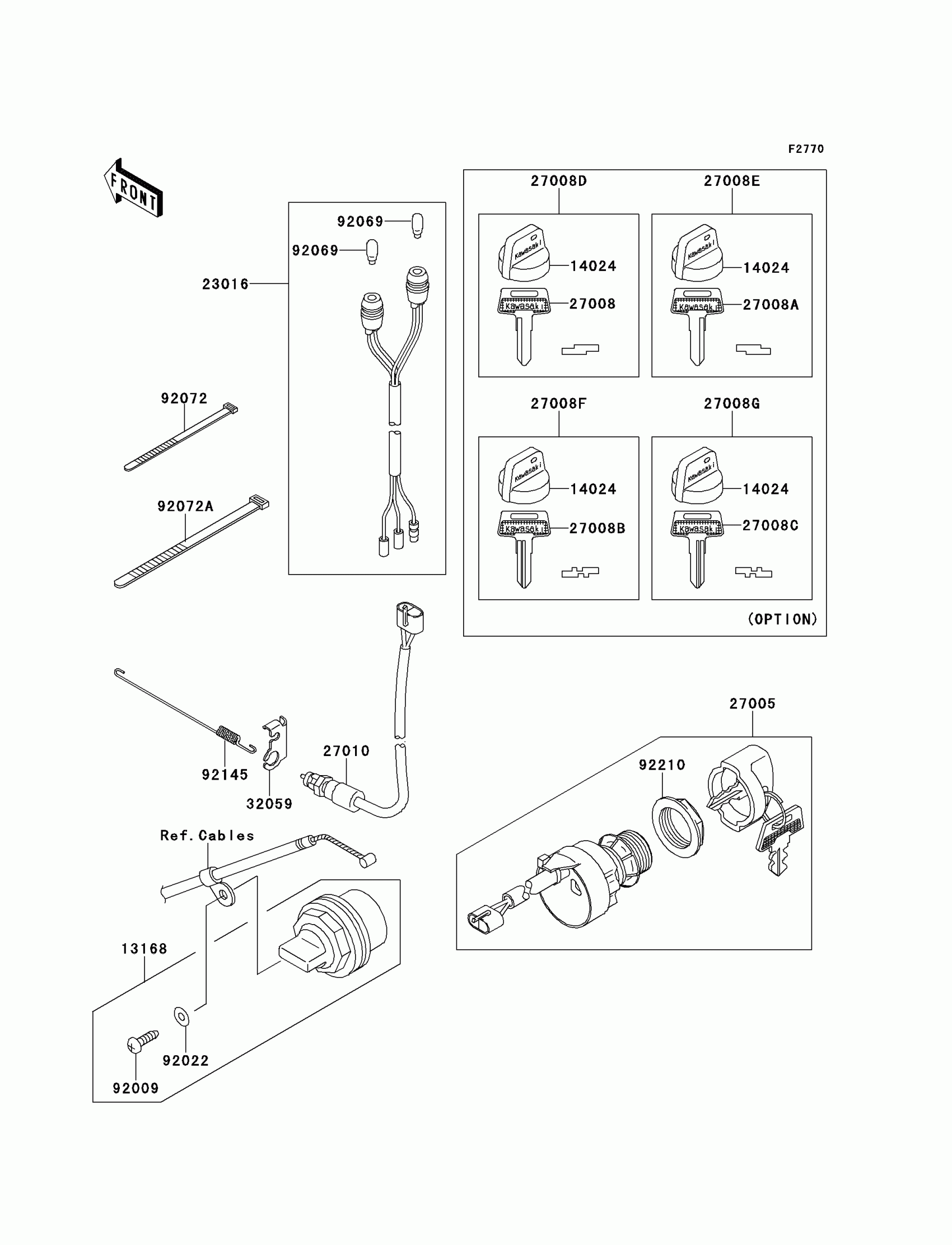

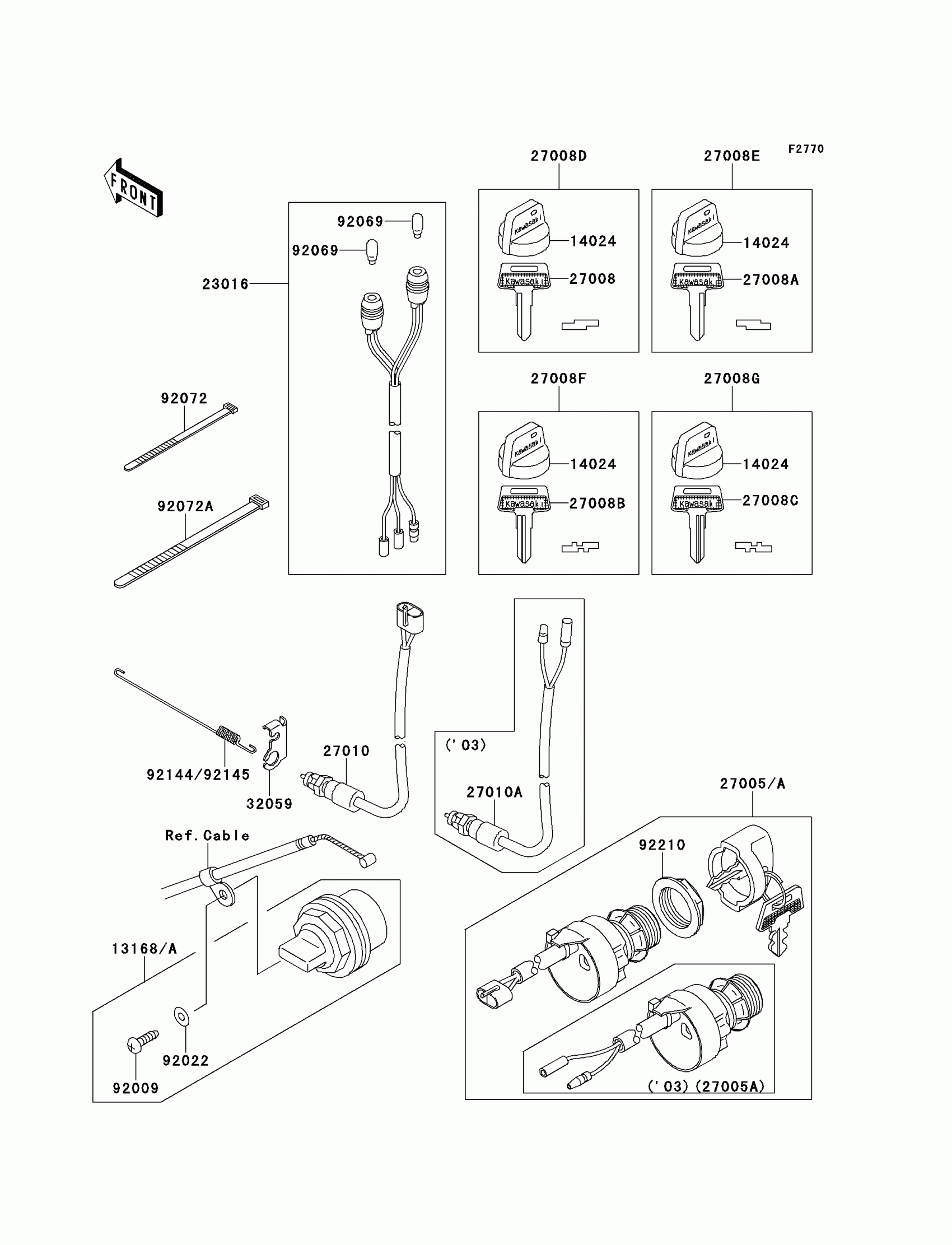

Kawasaki Bayou® 250 Ignition Switch Diagram

LEVER,REVERSE LOCK

COVER,KEY

LAMP-ASSY,NEUTRAL&REVERSE

SWITCH-ASSY-IGNITION

KEY-LOCK,BLANK

KEY-LOCK,BLANK

KEY-LOCK,BLANK

KEY-LOCK,BLANK

KEY-LOCK,BLANK,W/COVER

KEY-LOCK,BLANK,W/COVER

KEY-LOCK,BLANK,W/COVER

KEY-LOCK,BLANK,W/COVER

SWITCH,REAR BRAKE

BRACKET-SWITCH,REAR BRAKE

SCREW,TAPPING,4X12

WASHER,PLAIN,4MM

BULB,12V 3W,T7

BAND,L=149

BAND,L=188

SPRING,REAR BRAKE SWITCH

NUT,IGNITION SWITCH
