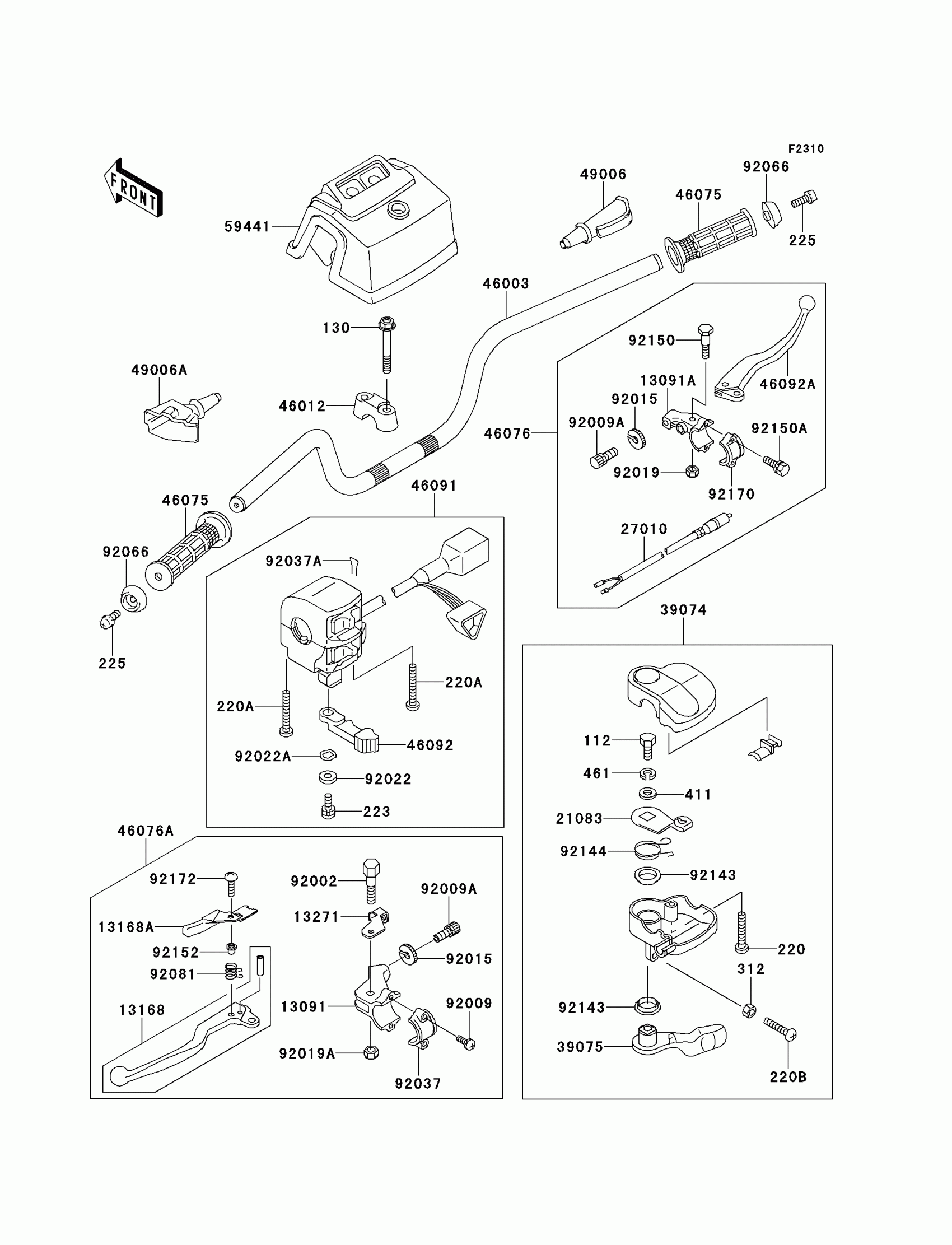

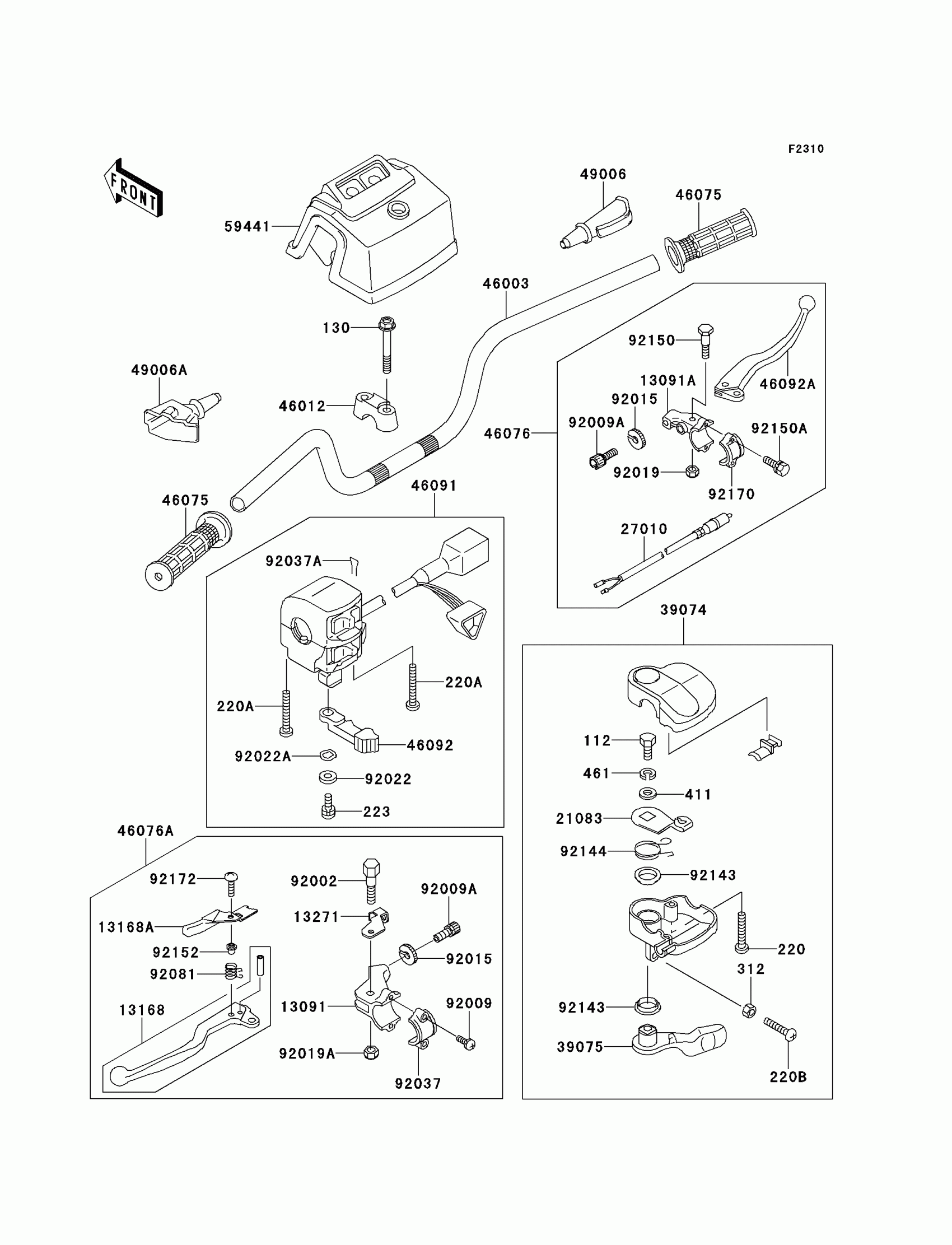

Kawasaki Bayou® 250 Handlebar Diagram
#
112
BOLT-UPSET,6X14
112AA0614
$0.49
130
BOLT-FLANGED,8X60
130CA0860
$1.77
13091
HOLDER
13091-1349
$37.78
13091A
HOLDER,LEVER,RH
13091-1719
Unavailable
13168
LEVER,LH
13168-1674
$30.57
13168A
LEVER,LOCK
13168-1675
$19.62
13271
PLATE,LOCK
13271-1260
$18.98
21083
ARM
21083-1068
$13.97
27010
SWITCH,STOP
27010-1296
$38.16
39074
LEVER-ASSY-THROTTLE
39074-1057
$142.00
39075
LEVER-THROTTLE
39075-1060
$28.36
46003
HANDLE
46003-0079
$56.69
46012
HOLDER-HANDLE
46012-1168
$16.33
46075
GRIP,HANDLE
46075-7501
$19.78
46076
LEVER-ASSY-GRIP,RH
46076-1179
$52.47
46076A
LEVER-ASSY-GRIP,LH
46076-1225
$43.65
46091
HOUSING-ASSY-CONTROL,LH
46091-1624
$191.53
46092
LEVER-GRIP,CHOKE
46092-1149
$5.69
46092A
LEVER-GRIP,RH
46092-1168
$19.83
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
49006A
BOOT,CLUTCH LEVER
49006-1057
$21.09
59441
COVER-HANDLE,BLACK
59441-1091-6D
$24.68
92002
BOLT,5MM
92002-1447
$9.93
92009
SCREW,5X18
92009-1367
$4.60
92009A
SCREW,CABLE ADJUST,8MM
92009-1435
$16.33
92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
$8.86
92019
NUT,LOCK,6MM
92019-008
$4.26
92019A
NUT,LOCK,5MM
92019-014
$4.50
92022
WASHER,5MM
92022-1837
$3.35
92022A
WASHER,WAVE,5MM
92022-1838
$3.35
92037
CLAMP,LEVER HOLDER
92037-1621
$27.29
92037A
CLAMP,CLIP
92037-1836
$5.33
92081
SPRING,LOCK RETURN
92081-1358
$5.46
92143
COLLAR
92143-1138
$3.56
92144
SPRING
92144-1176
$142.00
92150
BOLT
92150-1457
$9.14
92150A
BOLT
92150-1458
$8.60
92152
COLLAR
92152-1176
$4.31
92170
CLAMP,LEVER HOLDER
92170-1219
$28.84
92172
SCREW,5X20
92172-0078
$2.80
220
SCREW-PAN-CROS,5X25
220AB0525
$3.52
220A
SCREW-PAN-CROS,5X35
220AB0535
$2.06
220B
SCREW-PAN-CROSS,6X30
220AB0630
$1.89
223
SCREW-PAN-WS-CROS,5X12
223AB0512
$4.32
312
NUT-HEX,6MM,BLACK
312AB0600
$3.92
411
WASHER-PLAIN,6MM
411AA0600
$2.92
461
WASHER-SPRING,6MM
461DA0600
$0.71
