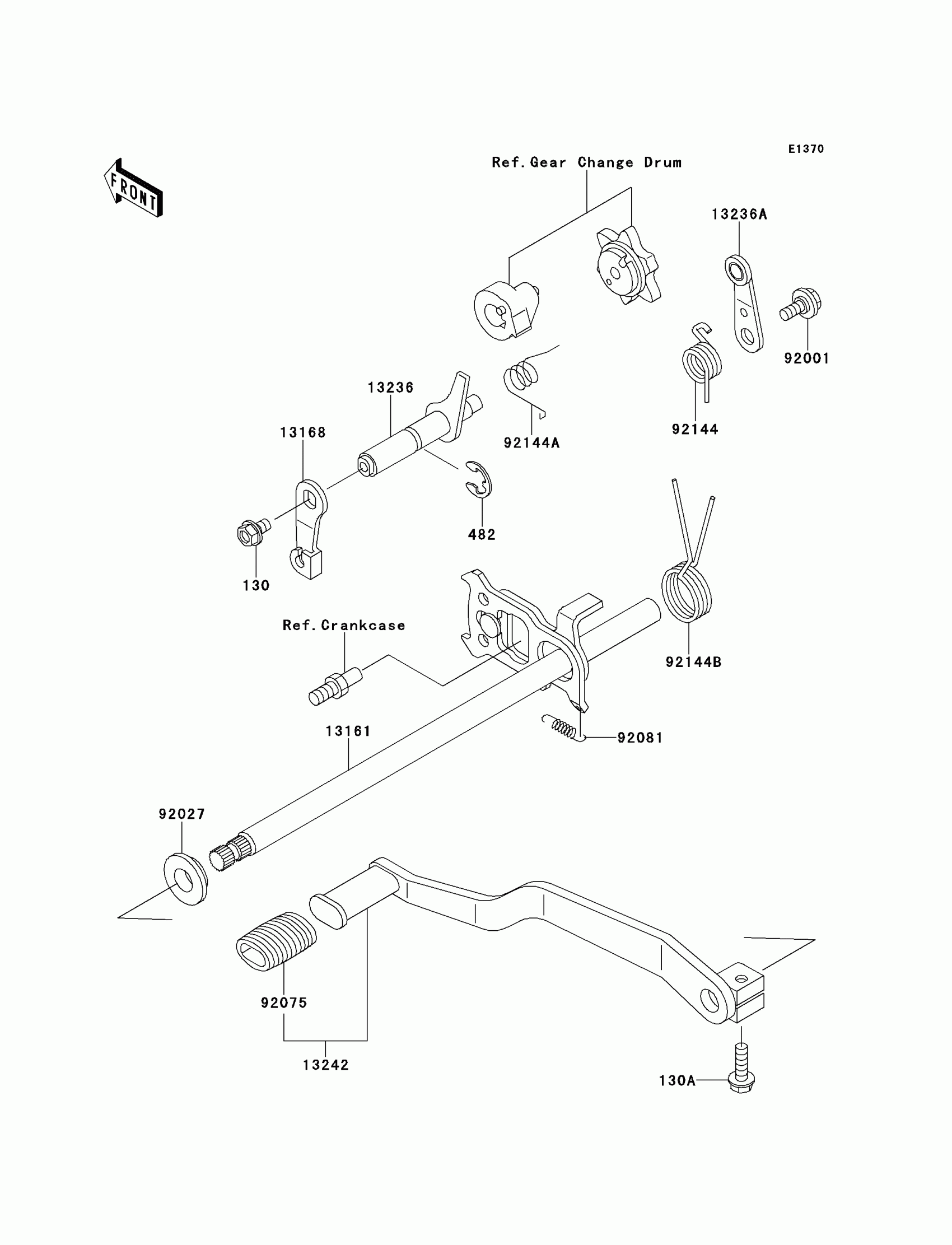

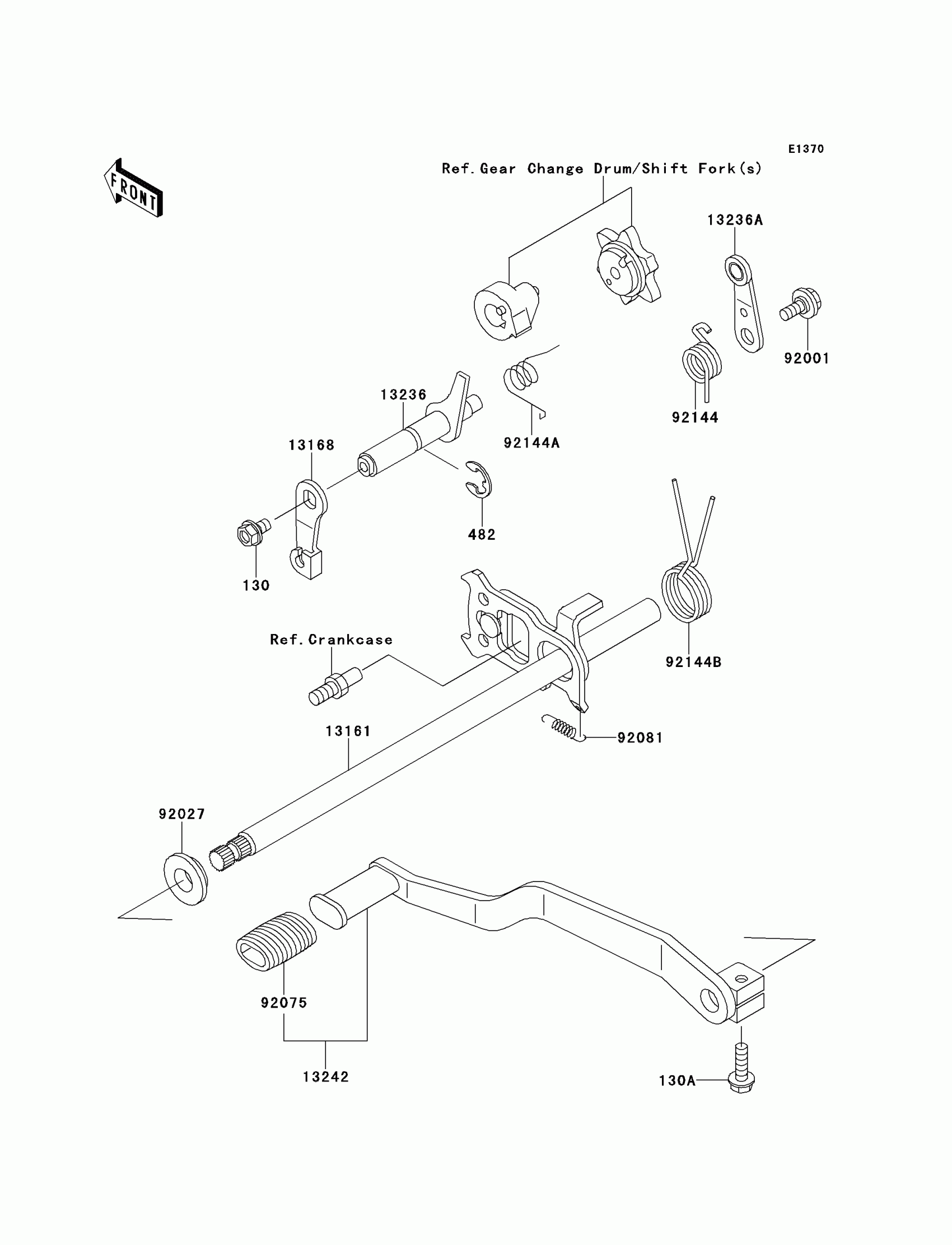

Kawasaki Bayou® 250 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X10

130AB0610

$4.15

130A

BOLT-FLANGED,6X20

130CB0620

$7.65

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

13161

LEVER-COMP-CHANGE SHAFT

13161-1238

$69.25

13168

LEVER,REVERSE CABLE

13168-1357

$7.62

13236

LEVER-COMP,REVERSE

13236-1157

$30.31

13236A

LEVER-COMP,CHANGE POSITION

13236-1164

$12.58

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1234

$35.58

92001

BOLT,FLANGED,6X14

92001-1715

$10.65

92027

COLLAR,L=5.2

92027-1891

$12.48

92075

DAMPER

92075-1585

$9.45

92081

SPRING,CHANGE LEVER

92081-1753

$6.55

92144

SPRING

92144-1162

$6.55

92144A

SPRING

92144-1163

$5.83

92144B

SPRING,CHANGE SHAFT RETURN

92144-1359

$9.36
