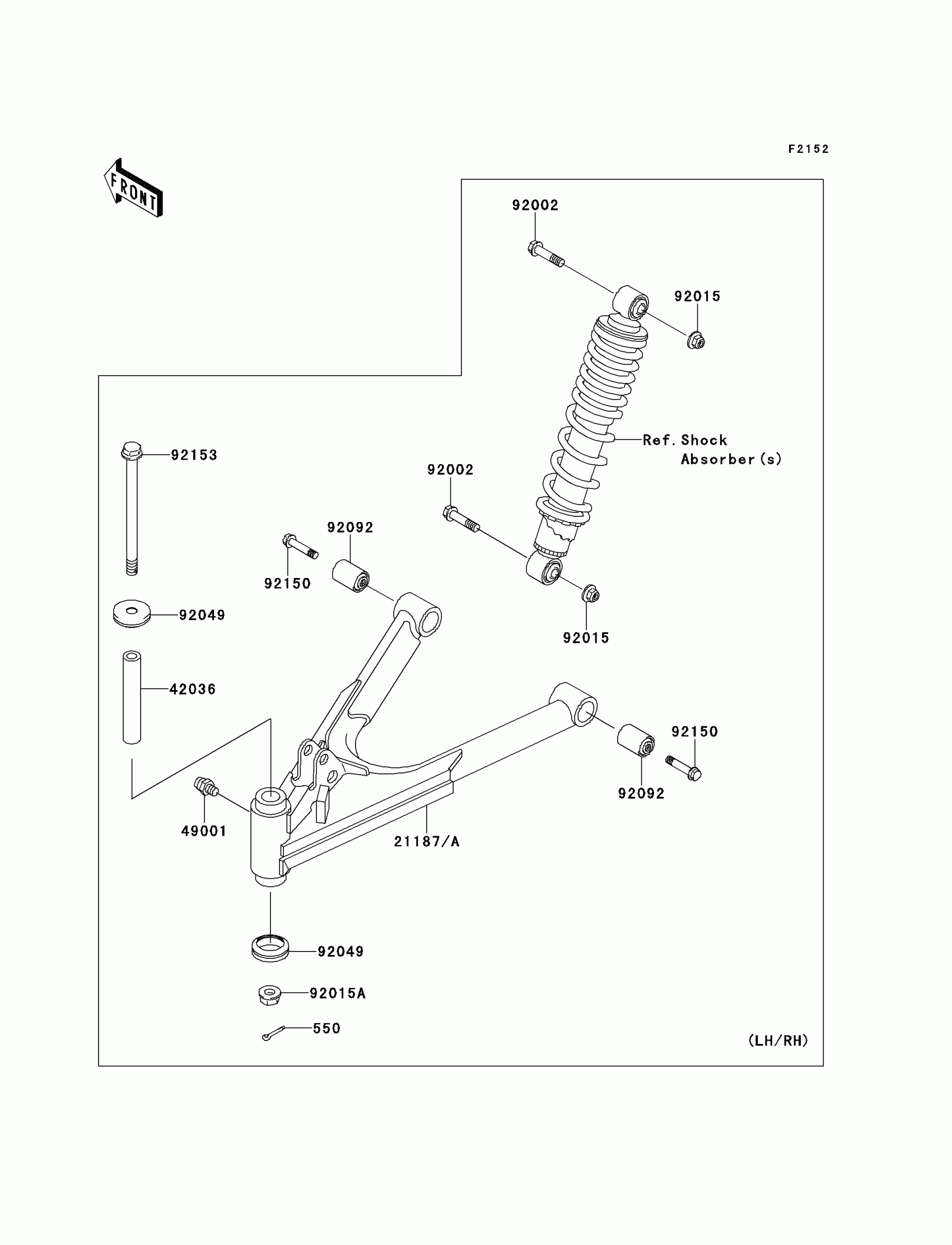

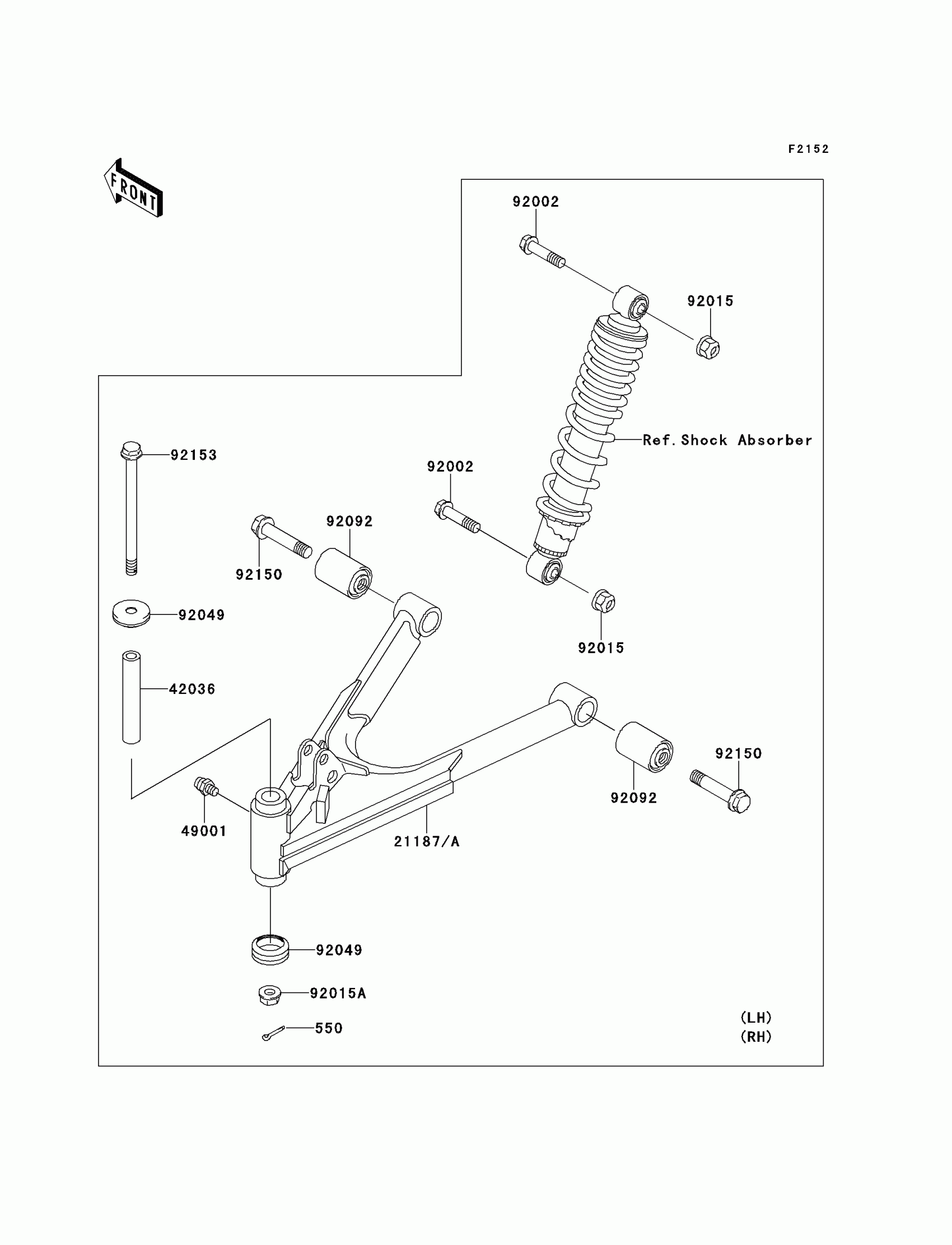

Kawasaki Bayou® 250 Front Suspension Diagram

Description

Price

550

PIN-COTTER,2.0X15

550AA2015

$1.12

21187

ARM-ASSY,SUSPENSION,FR,LH

21187-1065

$181.04

21187A

ARM-ASSY,SUSPENSION,FR,RH

21187-1066

$184.33

42036

SLEEVE,KNUCKLE,L=99.6

42036-1141

$69.53

49001

NIPPLE-GREASE

49001-0001

$3.02

92002

BOLT,FLANGED,10X42

92002-1545

$11.51

92015

NUT,LOCK,10MM

92015-1597

$5.52

92015A

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92049

SEAL-OIL

92049-1285

$9.93

92092

BUSHING-RUBBER

92092-005

$14.10

92150

BOLT,FLANGED,12X58

92150-1022

$10.62

92153

BOLT,FLANGED,10X142

92153-1169

$16.03
