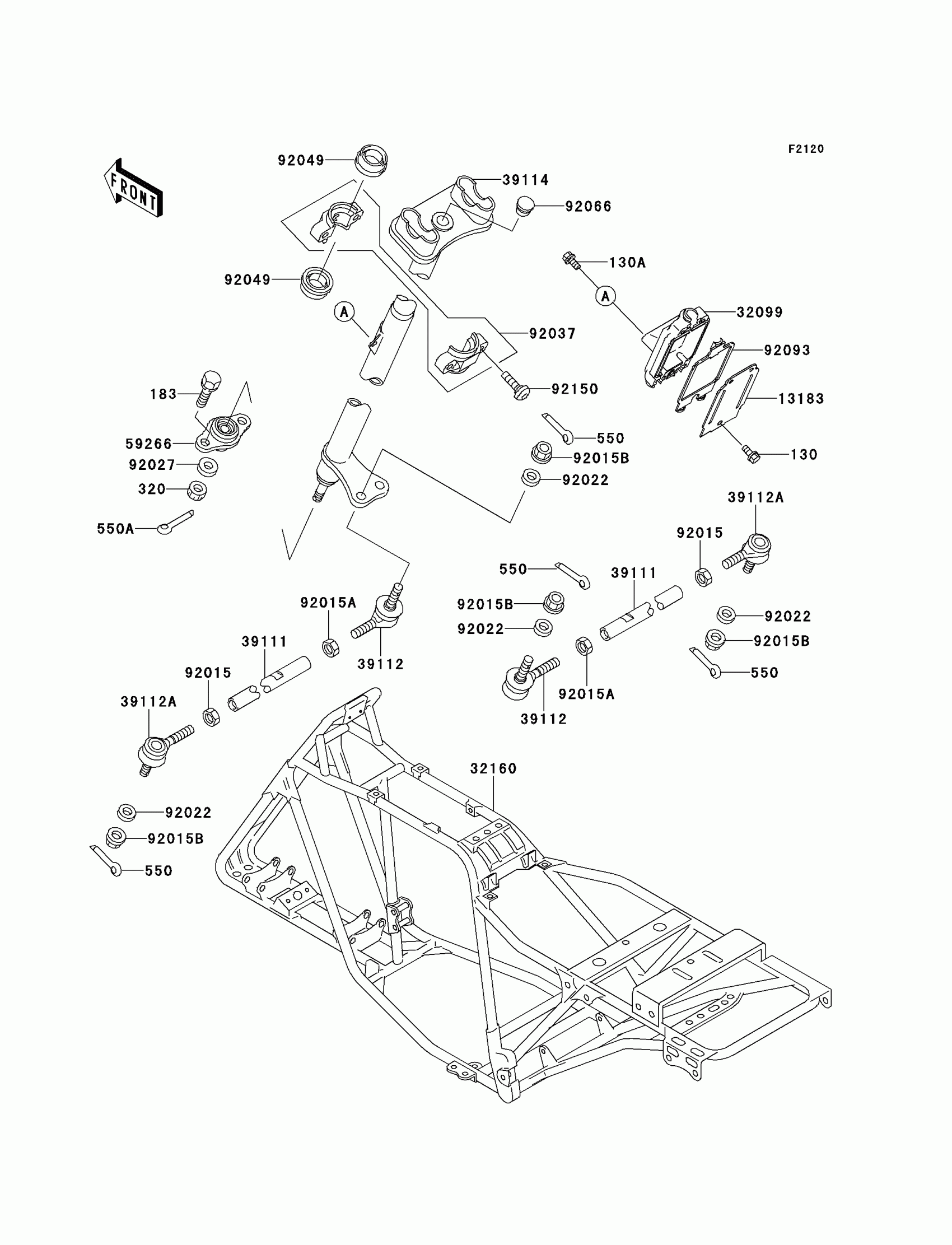

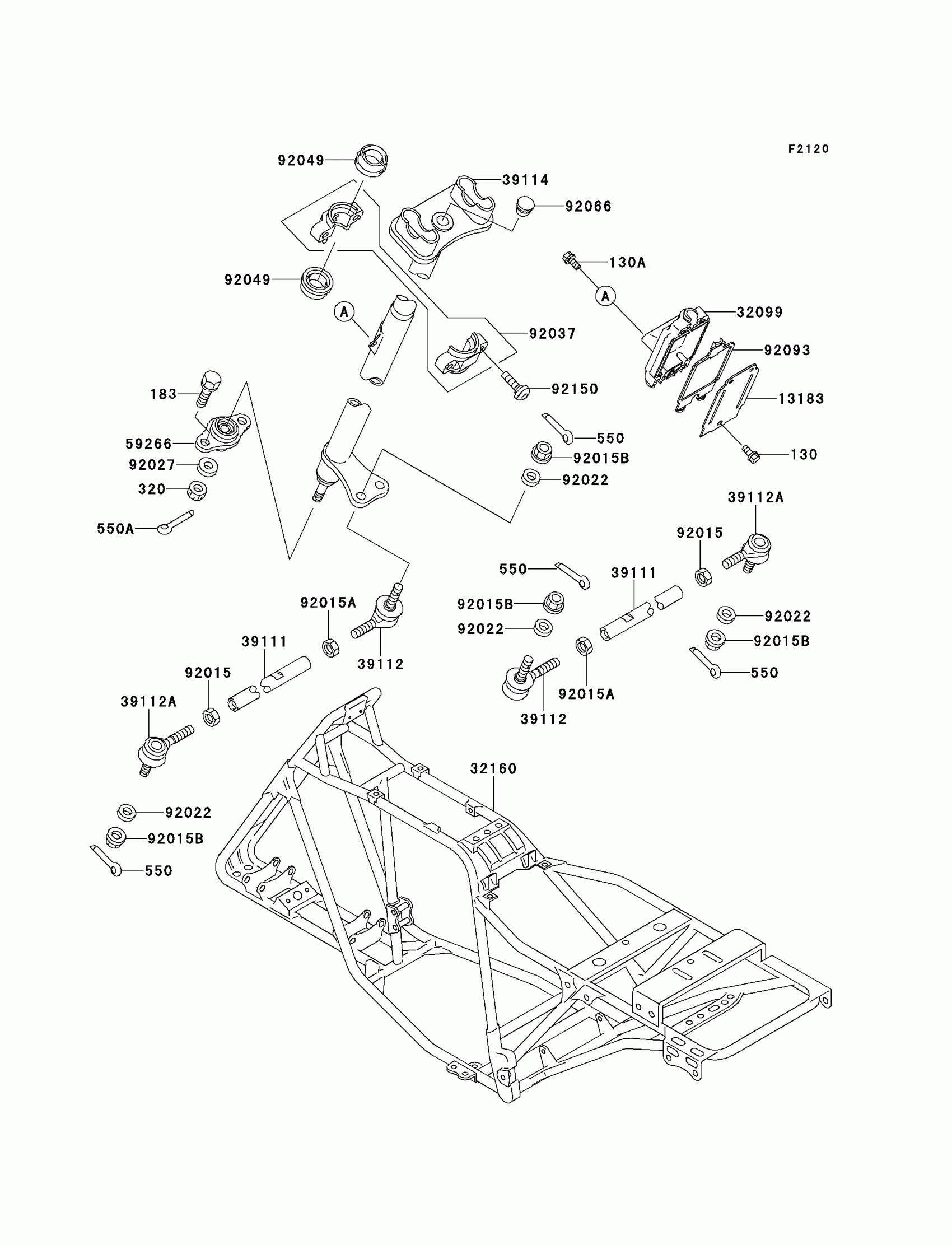

Kawasaki Bayou® 250 Frame Diagram
#
Description
Price
130
BOLT-FLANGED,5X12
130BA0512
$2.22
130A
BOLT-FLANGED,6X12
130BA0612
$1.72
183
BOLT-UPSET-WS-SMALL,8X22
183BA0822
$5.59
320
NUT-CASTLE
320BA1000
$8.47
550
PIN-COTTER,2.0X15
550AA2015
$1.12
550A
PIN-COTTER,2.5X18
550AA2518
$0.59
13183
PLATE,EQUALIZER CASE
13183-1148
$12.48
32099
CASE,EQUALIZER
32099-1101
$44.46
32160
FRAME-COMP
32160-1798
Unavailable
39111
ROD-TIE
39111-1076
$33.34
39112
RODEND-TIE
39112-1063
$92.76
39112A
RODEND-TIE
39112-1064
$92.76
39114
SHAFT-COMP-STRG
39114-1065
$150.76
59266
JOINT-BALL
59266-1066
Unavailable
92015
NUT,LOCK,10MM
92015-1460
$6.52
92015A
NUT,LOCK,10MM
92015-1494
$6.22
92015B
NUT,LOCK,FLANGED,10MM
92015-1717
$9.91
92022
WASHER,10.5X20X1
92022-239
$3.92
92027
COLLAR,10X21.3X7
92027-1817
$15.14
92037
CLAMP,STEERING SHAFT
92037-1975
$69.53
92049
SEAL-OIL,SR7 25 34 7.8 NS
92049-1278
$7.29
92066
PLUG
92066-1220
$4.96
92093
SEAL,EQUALIZER CASE
92093-1246
$14.54
92150
BOLT
92150-1058
$7.29
