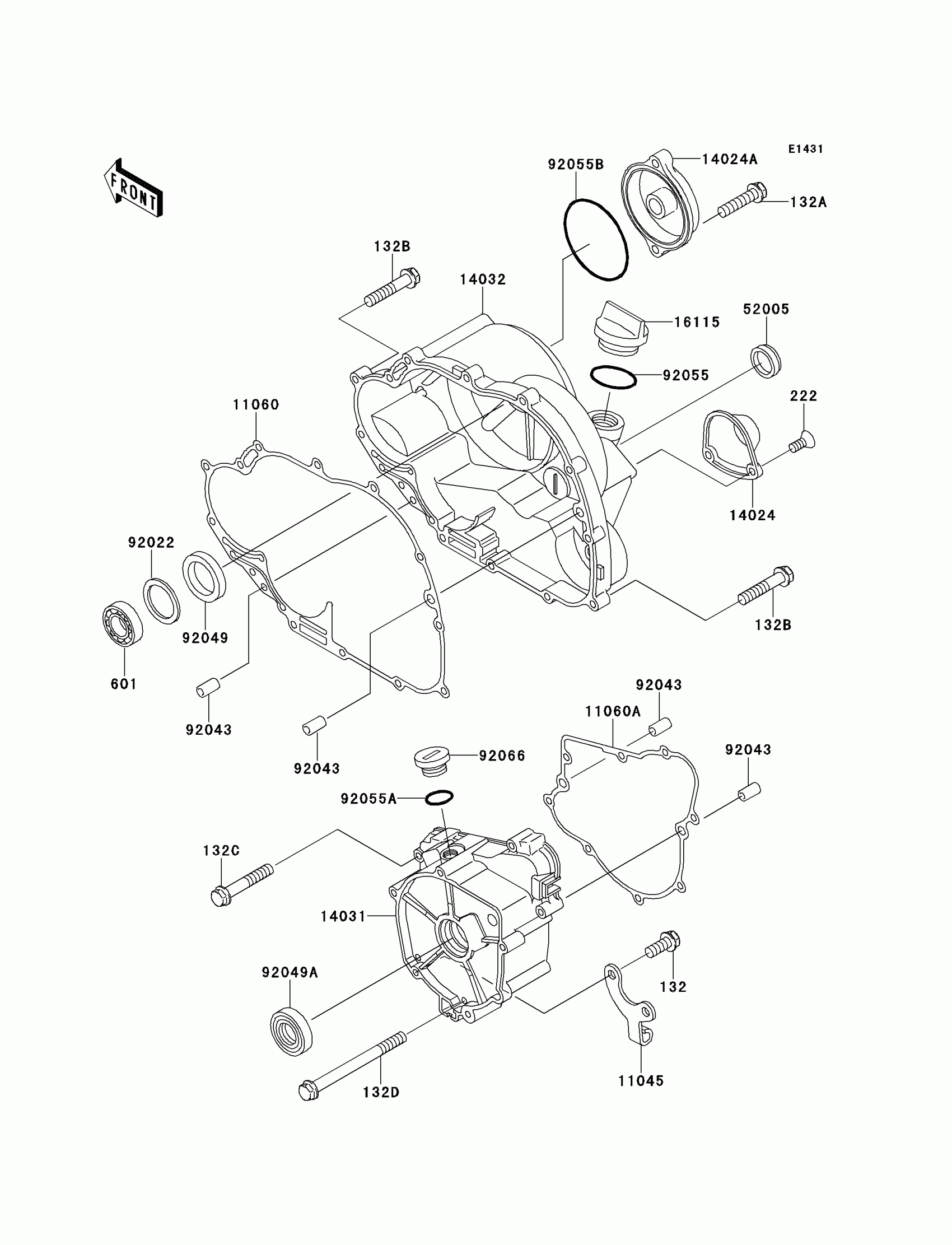

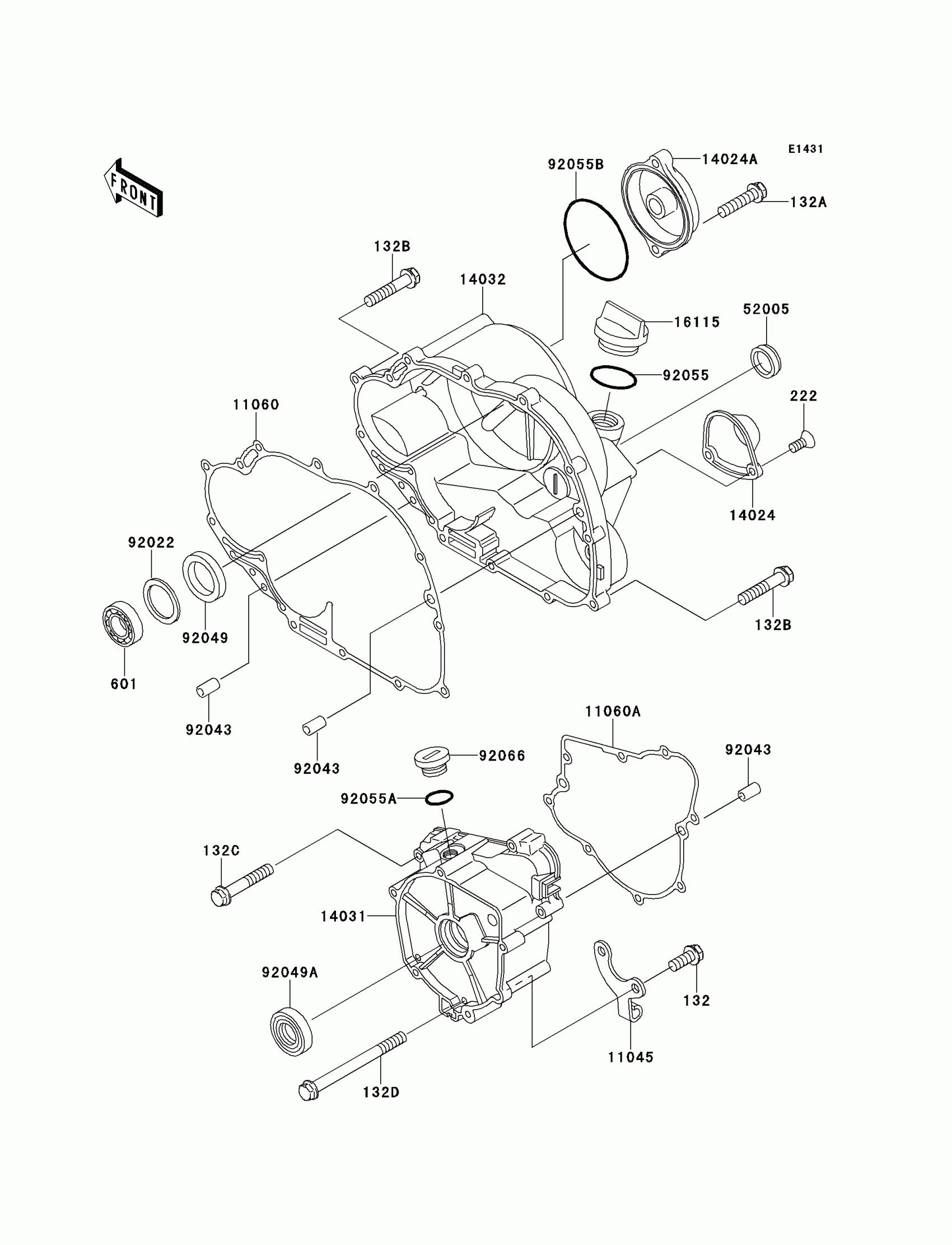

Kawasaki Bayou® 250 Engine Cover(s) Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X14
132BB0614
$2.49
132A
BOLT-FLANGED-SMALL,6X25
132BB0625
$2.80
132B
BOLT-FLANGED-SMALL,6X30
132BB0630
$4.12
132C
BOLT-FLANGED-SMALL,6X35
132BB0635
$4.12
132D
BOLT-FLANGED-SMALL,6X70
132BB0670
$5.30
222
SCREW-CSK-RD-CROS,5X12
222AB0512
$4.45
601
BEARING-BALL,#6002
601A6002
$11.63
11045
BRACKET
11045-1828
$8.80
11060
GASKET,CLUTCH COVER
11060-1648
$19.81
11060A
GASKET,GENERATOR
11060-1649
$9.09
14024
COVER
14024-1486
$13.84
14024A
COVER,OIL FILTER
14024-1488
$39.31
14031
COVER-GENERATOR
14031-1338
$140.13
14032
COVER-CLUTCH
14032-1451
$241.07
16115
CAP-OIL FILLER
16115-1062
$19.96
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92022
WASHER,21X31.5X1.0
92022-1624
$5.00
92043
PIN,6.2X8X14
92043-1263
$0.43
92049
SEAL-OIL
92049-1293
$9.93
92049A
SEAL-OIL,TC25356
92049-1317
$13.97
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,20X2
92055-1146
$8.58
92055B
RING-O,63.6X2.4
92055-1433
$10.14
92066
PLUG,COVER
92066-1163
$14.76
