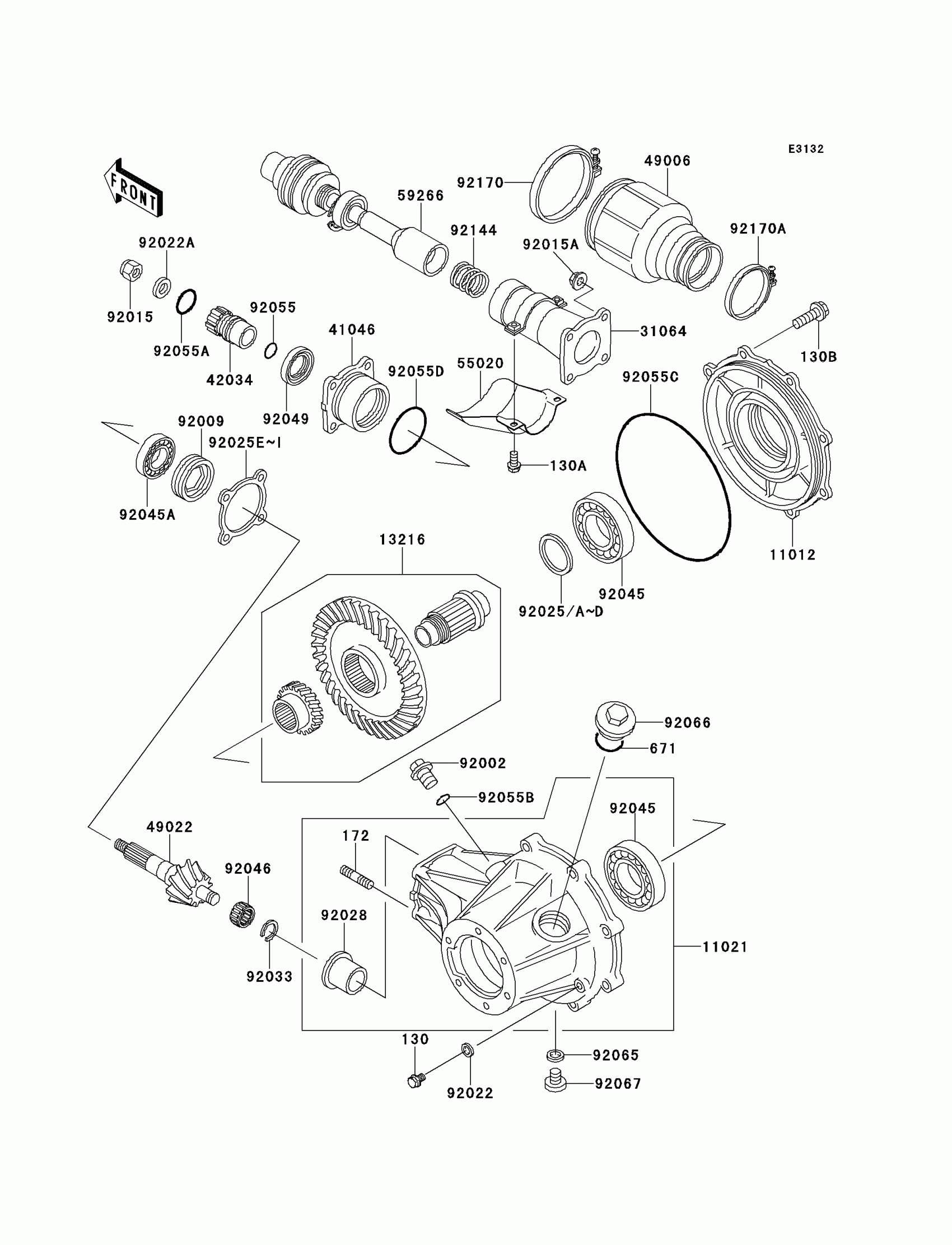

Kawasaki Bayou® 250 Drive Shaft/Final Gear Diagram
#
11012
CAP
11012-1593
$158.84
11021
CASE-ASSY,FRONT BEVEL
11021-1069
$322.62
13216
GEAR-COMP,FINAL
13216-1134
$434.12
31064
PIPE-COMP
31064-1209
$126.89
41046
HOUSING-BEARING
41046-1084
$111.55
42034
COUPLING,DIFFERENTIAL CASE
42034-1078
$130.39
49006
BOOT,DRIVE SHAFT
49006-1240
$26.39
49022
GEAR-BEVEL,10T
49022-1097
$242.10
55020
GUARD
55020-1643
$17.76
59266
JOINT-BALL,DRIVE SHAFT
59266-1069
$562.94
92002
BOLT,16X10
92002-1238
$8.80
92009
SCREW
92009-1475
$32.24
92015
NUT,12MM
92015-1182
$7.83
92015A
NUT,8MM
92015-1402
$4.69
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92022A
WASHER,12.3X25X3.2
92022-1293
$6.61
92025
SHIM,35.3X46X1.00
92025-1849
Unavailable
92025A
SHIM,35.3X46X0.10
92025-1850
Unavailable
92025B
SHIM,35.3X46X0.15
92025-1851
Unavailable
92025C
SHIM,35.3X46X0.50
92025-1856
Unavailable
92025D
SHIM,35.3X46X0.80
92025-1857
Unavailable
92025E
SHIM,T=1.00
92025-1864
Unavailable
92025F
SHIM,T=0.10
92025-1865
Unavailable
92025G
SHIM,T=0.15
92025-1866
Unavailable
92025H
SHIM,T=0.50
92025-1867
Unavailable
92025I
SHIM,T=0.80
92025-1868
Unavailable
92028
BUSHING
92028-1501
$24.61
92033
RING-SNAP,14X17.5X1.2
92033-1234
$4.96
92045
BEARING-BALL
92045-1110
$34.63
92045A
BEARING-BALL
92045-1112
$32.04
92046
BEARING-NEEDLE,K15X21X15
92046-1173
$22.69
92049
SEAL-OIL
92049-1231
$15.93
92055
RING-O,17.5X1.5
92055-022
$6.22
92055A
RING-O,27MM
92055-1119
$5.00
92055B
RING-O,ID=13.8
92055-1141
$3.92
92055C
RING-O,154X3
92055-1165
$11.37
92055D
RING-O,59.6X2.4
92055-3018
$6.22
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG
92066-1284
$14.54
92067
PLUG,DRAIN,10X12
92067-001
$4.41
92144
SPRING,DRIVE SHAFT
92144-1235
$7.76
130
BOLT-FLANGED,6X8
130AA0608
$0.68
130A
BOLT-FLANGED,6X12
130BB0612
$2.34
130B
BOLT-FLANGED,8X25
130CA0825
$1.46
172
BOLT-STUD,8X25
172BA0825
$3.70
671
"0" RING,30MM
671B2530
$5.05
92170
CLAMP
92170-1149
$11.37
92170A
CLAMP
92170-1674
$11.76
