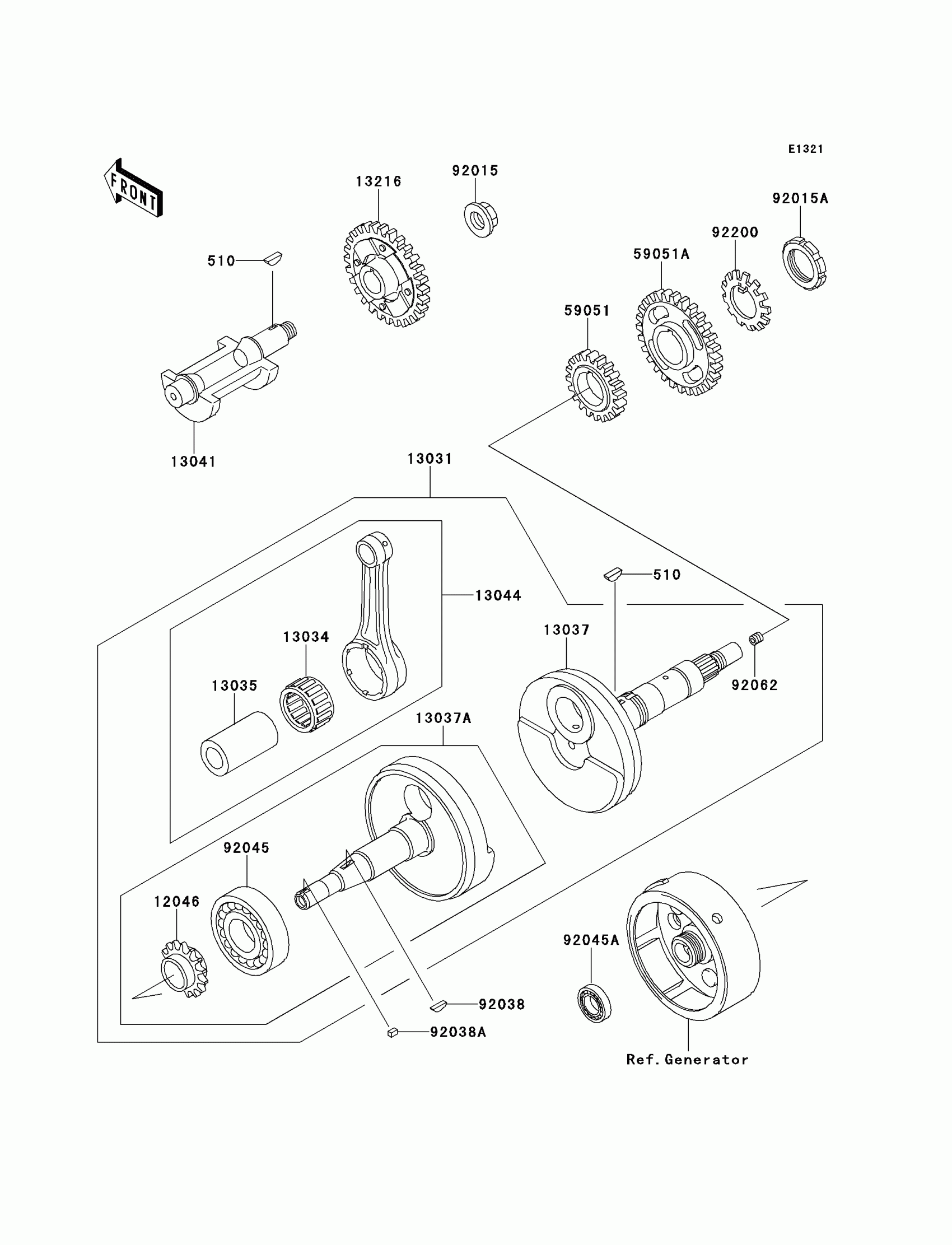

Kawasaki Bayou® 250 Crankshaft Diagram

Description

Price

510

WOODRUFF KEY

510A5100

$2.70

12046

SPROCKET,CAM CHAIN,19T

12046-1152

$40.48

13031

CRANKSHAFT-COMP

13031-1373

$640.56

13034

BEARING-BIG END

13034-1098

$45.73

13035

PIN-CRANK

13035-1063

$69.53

13037

CRANKSHAFT,RH

13037-1478

$446.90

13037A

CRANKSHAFT,LH

13037-5085

$458.75

13041

BALANCER

13041-1127

$120.95

13044

SET-CONNECTING ROD

13044-5086

$177.47

13216

GEAR-COMP,BALANCER

13216-1184

$117.43

59051

GEAR,OIL PUMP,30T

59051-1187

$58.77

59051A

GEAR-SPUR,39T

59051-1188

$125.64

92015

NUT,16MM

92015-1465

$18.57

92015A

NUT,PUMP GEAR,30MM

92015-1511

$24.05

92038

KEY,WOODRUFF

92038-001

$4.96

92038A

KEY,SUNK

92038-1051

$5.73

92045

BEARING-BALL

92045-1172

$48.87

92045A

BEARING-BALL,6903C3

92045-1266

$24.67

92062

NOZZLE,8X8,SILVER

92062-1082

$5.52

92200

WASHER,PUMP GEAR

92200-1203

$5.33
