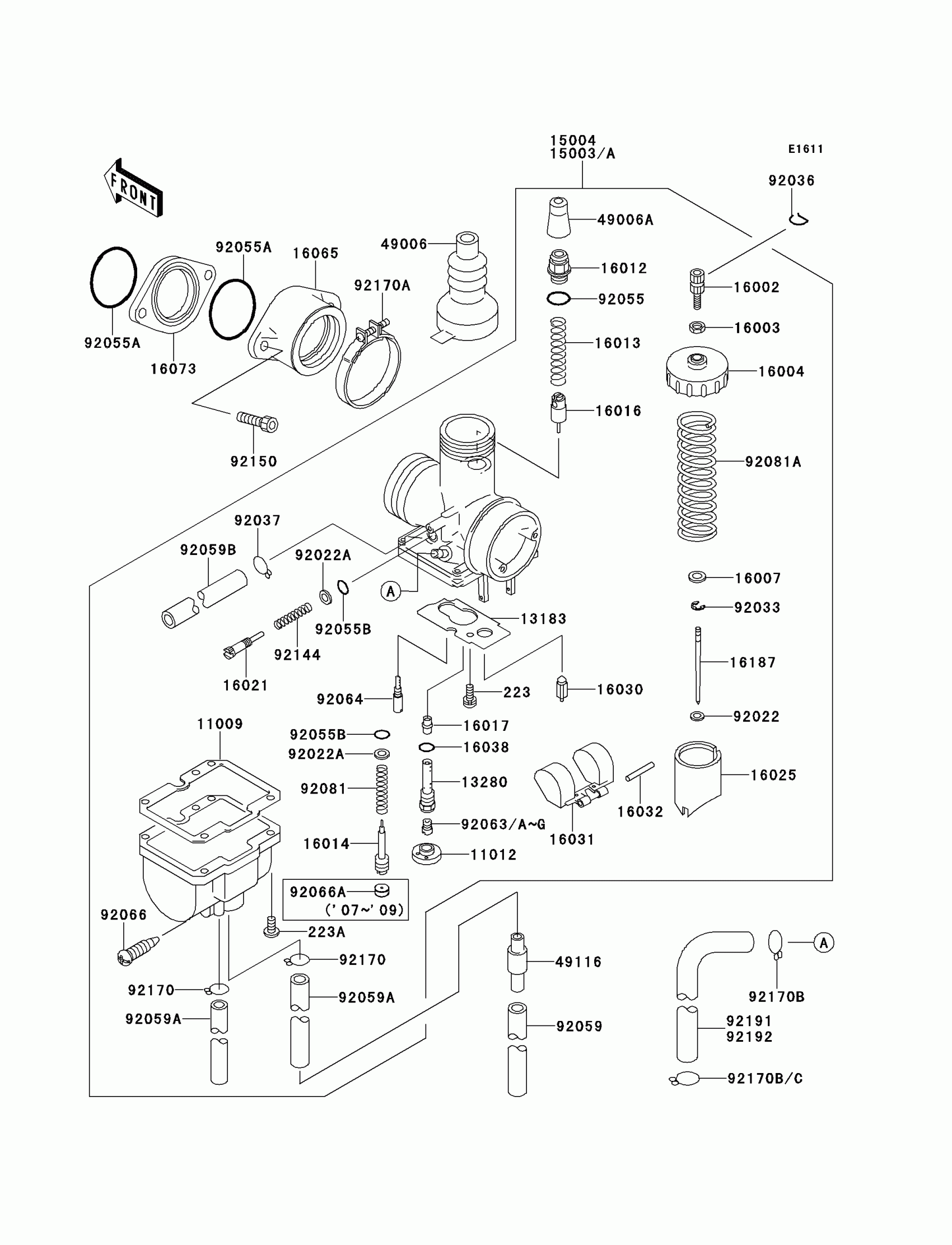

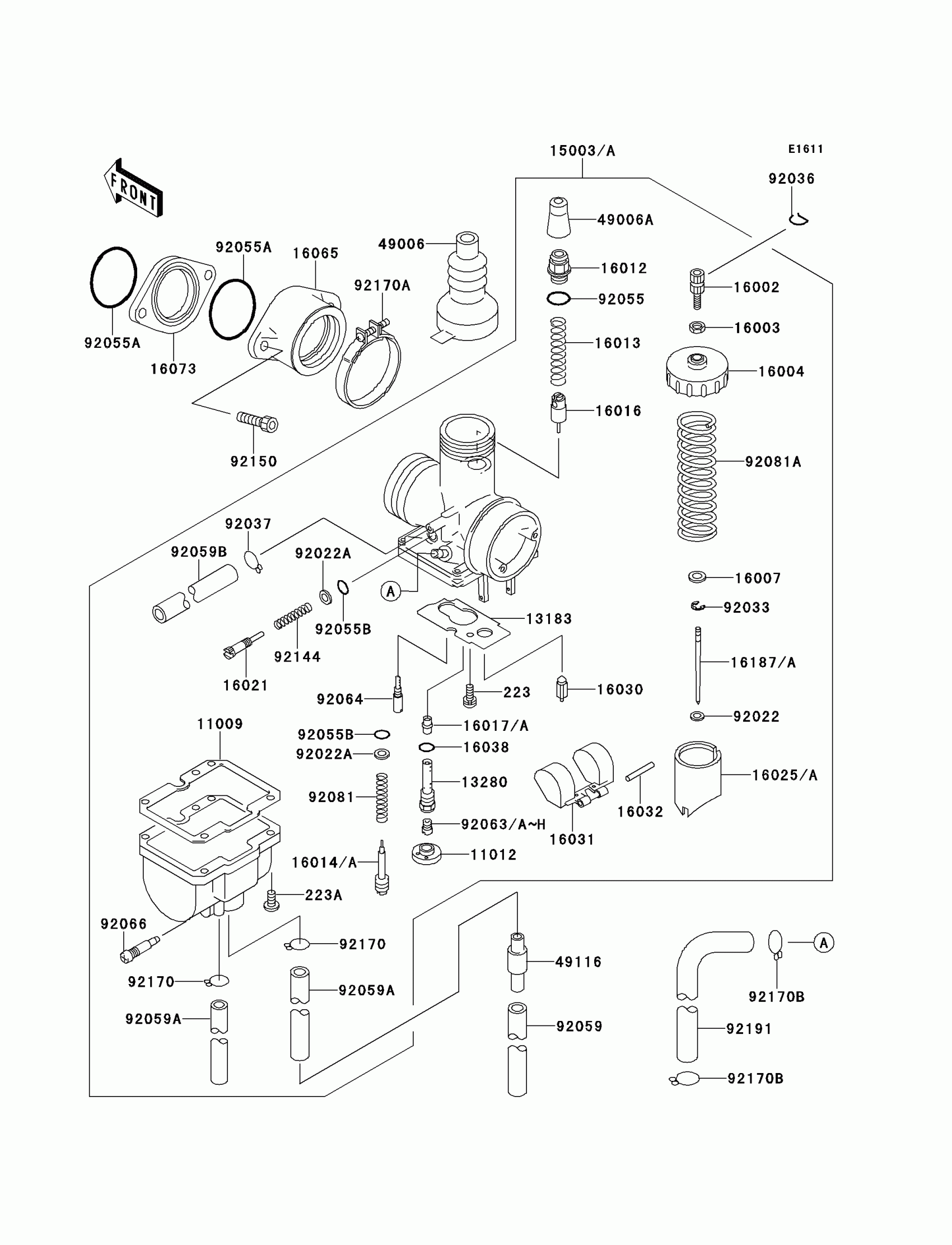

Kawasaki Bayou® 250 Carburetor Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1676
$17.74
11012
CAP
11012-1659
$27.80
13183
PLATE
13183-1273
$22.40
13280
HOLDER,NEEDLE JET
13280-1167
$33.37
15004
CARBURETOR-ASSY,VM24
15004-0075
$568.84
16002
ADJUSTER-CABLE
16002-011
$13.97
16003
NUT,ADJUST LOCK
16003-006
$7.34
16004
CAP-CHAMBER,MIXING
16004-1055
$34.18
16007
SEAT-SPRING,THROTTLE VALVE
16007-1111
$5.83
16012
CAP-STARTER PLUNGER
16012-1056
$15.45
16013
SPRING-PLUNGER
16013-003
$6.16
16014
SCREW-PILOT AIR
16014-0003
$26.45
16016
PLUNGER,STARTER
16016-1074
$65.10
16017
JET-NEEDLE,O-2M
16017-0003
$50.29
16021
SCREW-THROTTLE STOP
16021-1126
$16.18
16025
VALVE-THROTTLE,CA 3.5
16025-0005
$122.95
16030
VALVE-FLOAT,#1.5
16030-1066
$53.57
16031
FLOAT
16031-1055
$53.59
16032
PIN,FLOAT
16032-003
$6.57
16038
"0" RING,MAIN JET COV
16038-016
$3.02
16065
HOLDER-CARBURETOR
16065-1157
$42.77
16073
INSULATOR
16073-1053
$10.56
16187
NEEDLE-JET,5GN74
16187-0020
$38.30
49006
BOOT
49006-1230
$11.27
49006A
BOOT,STARTER PLUNGER
49006-1235
$11.27
49116
VALVE-ASSY
49116-1126
$20.77
92022
WASHER,THROTTLE VALVE
92022-1024
$6.61
92022A
WASHER,ADJUST SCREW
92022-1187
$6.22
92033
RING-SNAP
92033-1290
$4.65
92036
RING-SNAP
92036-018
$3.89
92037
CLAMP,BREATHER TUBE
92037-174
$2.00
92055
RING-O,STARTER PLUNGER
92055-1252
$5.29
92055A
RING-O,32MM
92055-1256
$13.08
92055B
RING-O,AIR SCREW
92055-1658
$6.00
92059
TUBE,7X10X100
92059-1736
$4.46
92059A
TUBE,5X8X350
92059-1843
$23.83
92059B
TUBE,6X8X650
92059-1937
$23.83
92063
JET-MAIN,#A122.5
92063-1101
Unavailable
223
SCREW-PAN-WS-CROS,3X8
223AA0308
$1.86
223A
SCREW-PAN-WS-CROS,4X14
223AA0414
$1.52
92063C
JET-MAIN,#A120
92063-1106
Unavailable
92063D
JET-MAIN,#117.5
92063-1107
$17.40
92063F
MAIN JET,A115
92063-1109
Unavailable
92063G
JET-MAIN,#A112.5
92063-1110
Unavailable
92064
JET-PILOT,22.5
92064-0003
$19.41
92066
PLUG,DRAIN
92066-0050
$16.09
92081
SPRING,PILOT AIR SCREW
92081-1690
$6.16
92081A
SPRING,THROTTLE VALVE
92081-1691
$14.10
92144
SPRING,THROTTLE STOP SCREW
92144-1183
$5.46
92150
BOLT,SOCKET,6X22
92150-1654
$5.33
92170
CLAMP
92170-1004
$4.60
92170A
CLAMP
92170-1438
$8.98
92170B
CLAMP,TUBE
92170-1834
$4.67
92170C
CLAMP
92170-2082
$0.84
92192
TUBE,7.5X12.5X225
92192-0504
$33.67
