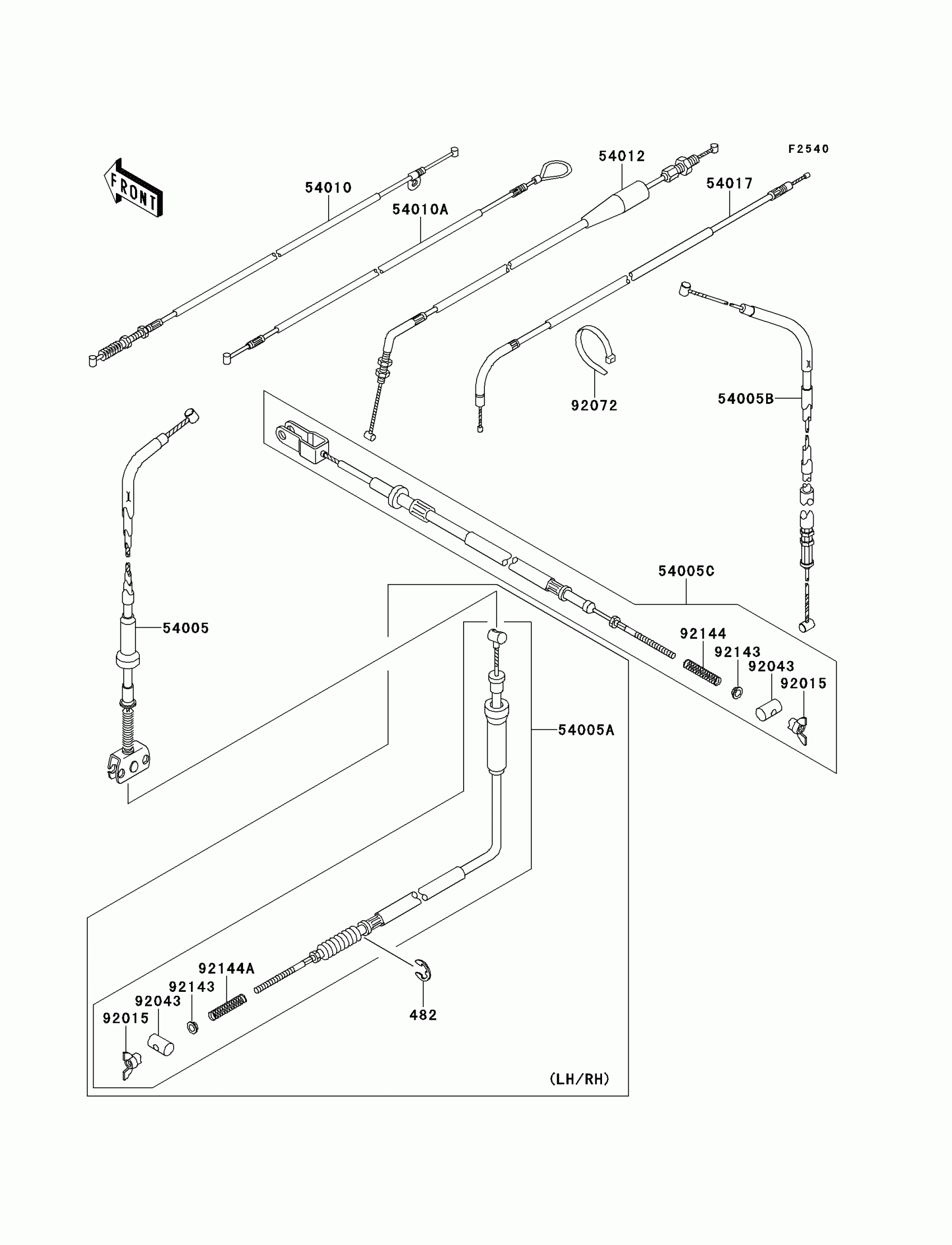

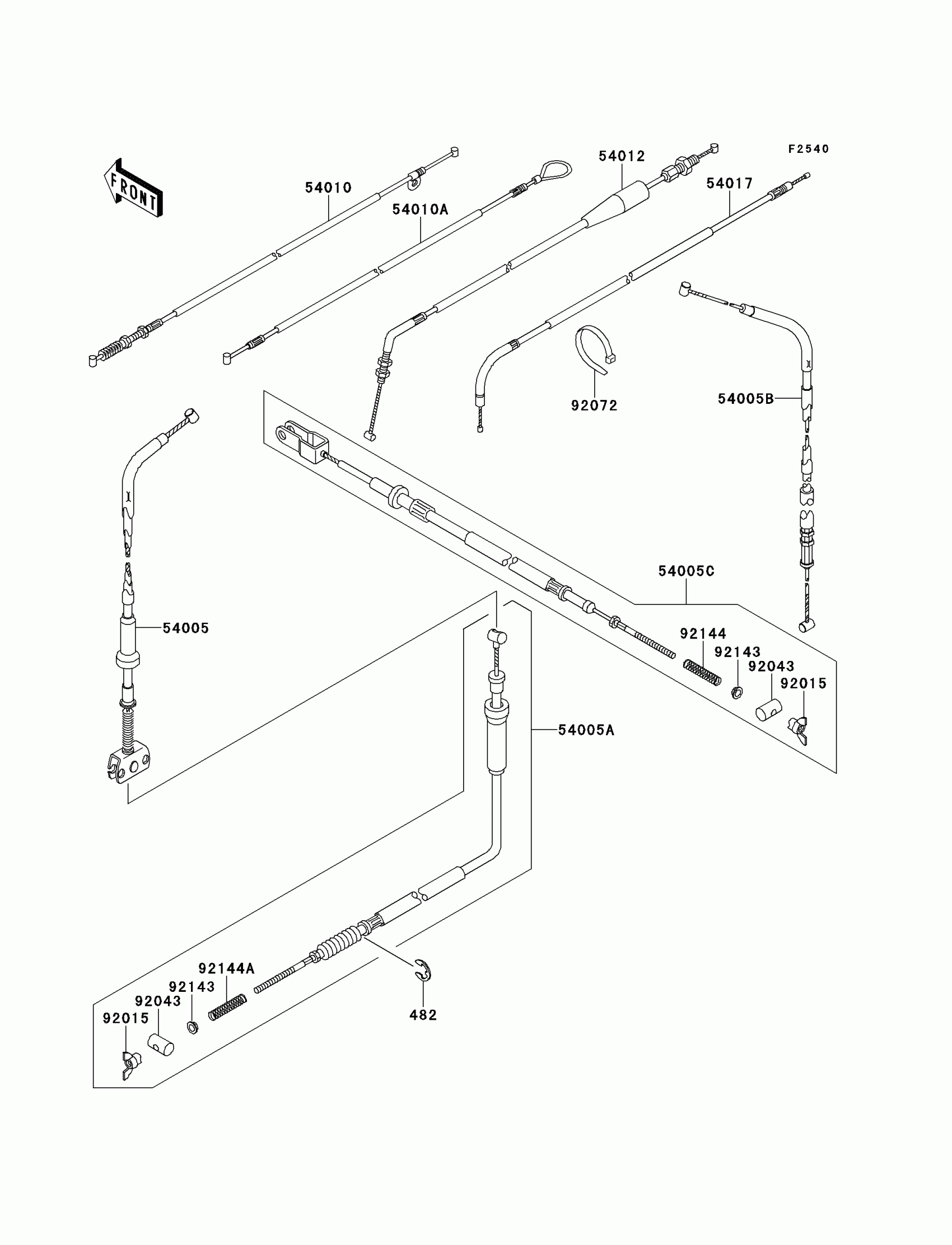

Kawasaki Bayou® 250 Cables Diagram

Description

Price

482

CIRCLIP-TYPE-E

482EA7000

$3.92

54005

CABLE-BRAKE,FR,UPP

54005-1153

$19.41

54005A

CABLE-BRAKE,FR,LWR

54005-1154

$20.35

54005B

CABLE-BRAKE,PARKING

54005-1155

$20.35

54005C

CABLE-BRAKE,RR

54005-1156

$20.35

54010

CABLE,REVERSE

54010-1073

$16.44

54010A

CABLE,SEAT HOOK

54010-1074

$9.77

54012

CABLE-THROTTLE

54012-1361

$11.37

54017

CABLE-STARTER

54017-1137

$11.50

92015

NUT,WING,6MM

92015-4004

$7.29

92043

PIN,12X20

92043-1392

$11.37

92072

BAND,L=188

92072-1239

$1.73

92143

COLLAR

92143-1309

$4.20

92144

SPRING,BRAKE CABLE

92144-1269

$7.22

92144A

SPRING,BRAKE CABLE

92144-1270

$7.60
