2010 Kawasaki Bayou® 250 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2010 Kawasaki Bayou® 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

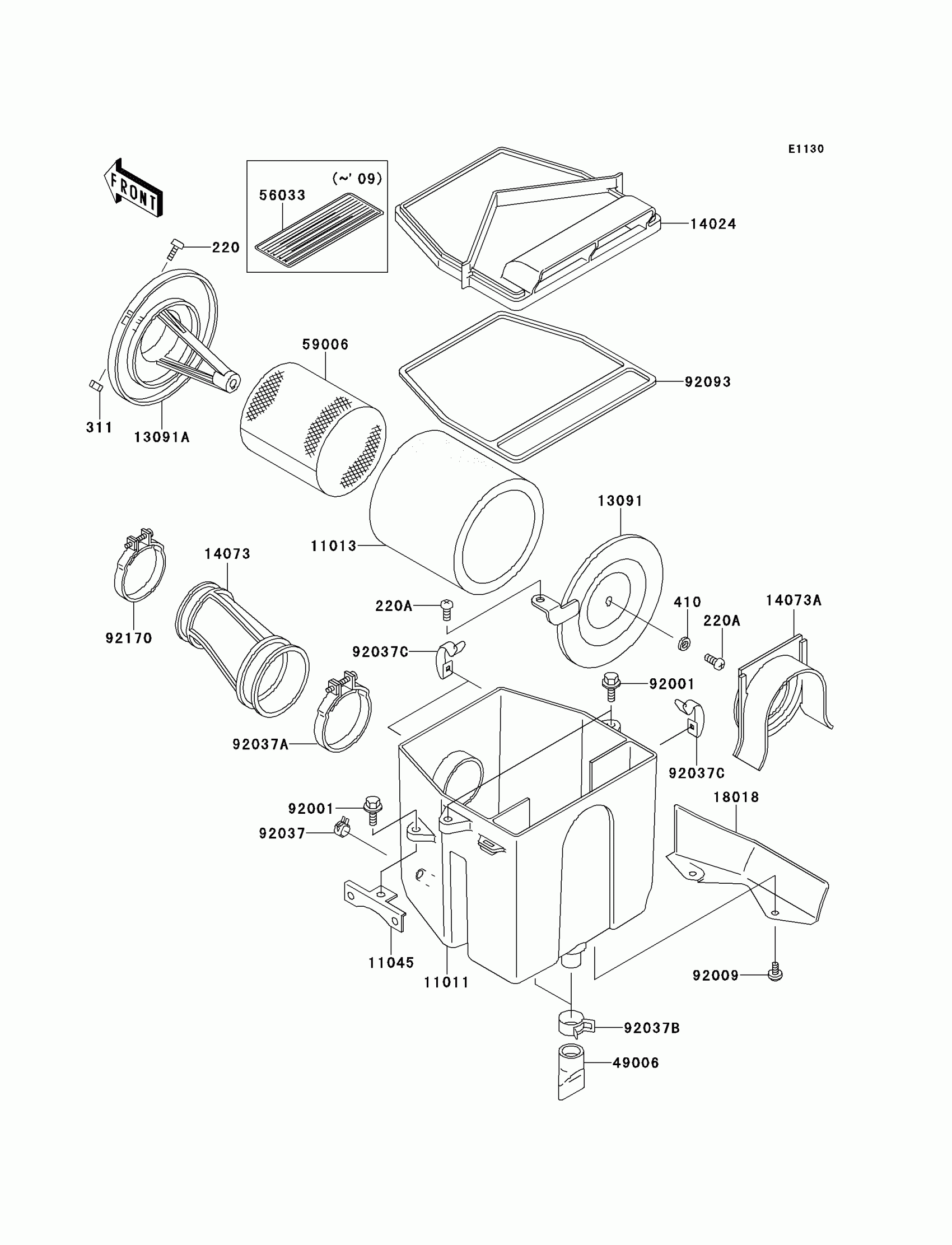

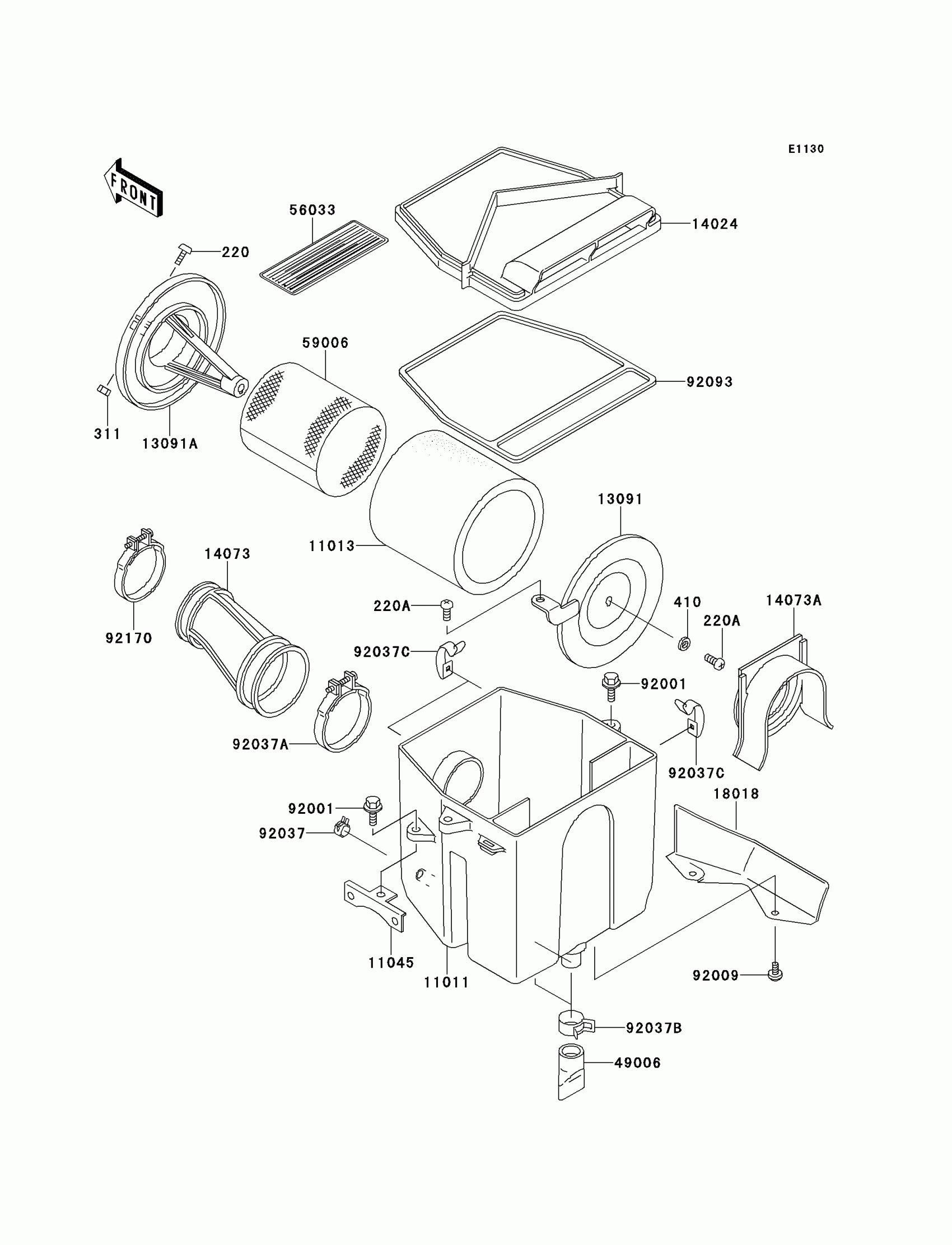

2010 Kawasaki Bayou® 250 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,5X16

220AA0516

1
Out of stock

220A

SCREW-PAN-CROSS,6X14

220AA0614

1
Out of stock

311

NUT-HEX

311AA0500

1
Out of stock

410

WASHER-PLAIN-SMALL

410AA0600

1
Out of stock

11011

CASE-AIR FILTER

11011-1521

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1275

1
Out of stock

11045

BRACKET,REGULATOR

11045-1786

1
Out of stock

13091

HOLDER,ELEMENT

13091-1488

1

$18.50

In stock

13091A

HOLDER,ELEMENT

13091-1510

1

$38.50

In stock

14024

COVER,AIR FILTER

14024-1489

1

$24.57

In stock

14073

DUCT,CARBURETOR

14073-1312

1

$26.29

In stock

14073A

DUCT,AIR FILTER

14073-1313

1

$29.30

In stock

18018

PLATE-HEAT GUARD

18018-1077

1
Out of stock

49006

BOOT

49006-1199

1
Out of stock

59006

ARRESTER-FLAME

59006-1052

1
Out of stock

92001

BOLT,6X20

92001-1460

1
Out of stock

92009

SCREW,TAPPING,5X10

92009-1332

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1
Out of stock

92037A

CLAMP,57MM,BLACK

92037-1452

1
Out of stock

92037B

CLAMP,HOSE CLIP

92037-1460

1
Out of stock

92037C

CLAMP,AIR FILTER

92037-1783

1
Out of stock

92093

SEAL,AIR FILTER

92093-1241

1
Out of stock

92170

CLAMP

92170-1006

1

$7.26

In stock
