Description

Price

13127

SHAFT-TRANSMISSION INPUT,13T

13127-1152

$191.53

13128

SHAFT-TRANSMISSION OUTPUT

13128-1146

$193.57

13129

GEAR,INPUT 2ND&3RD,23T&19T

13129-1860

$133.37

13129A

GEAR,INPUT 4TH,26

13129-1861

$136.70

13129B

GEAR,INPUT TOP,28T

13129-1862

$121.73

13129C

GEAR,OUTPUT LOW,38T

13129-1864

$129.23

13129D

GEAR,OUTPUT 2ND,32T

13129-1865

$121.73

13129E

GEAR,OUTPUT 3RD,27T

13129-1866

$121.73

13129F

GEAR,OUTPUT 4TH,24T

13129-1867

$121.73

13129G

GEAR,OUTPUT TOP,22T

13129-1868

$121.73

13129H

GEAR,REVERSE,33T

13129-1869

$121.73

92022

WASHER,20.3X28.0X0.5

92022-1885

$4.31

92022A

WASHER,22.3X27X0.5

92022-198

$5.52

92022B

WASHER,THRUST,15MM

92022-279

$10.56

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,18MM

92033-029

$9.82

92033B

RING-SNAP,14X17.5X1.2

92033-1234

$4.96

92046

BEARING-NEEDLE,K15X21X15

92046-1173

$22.69

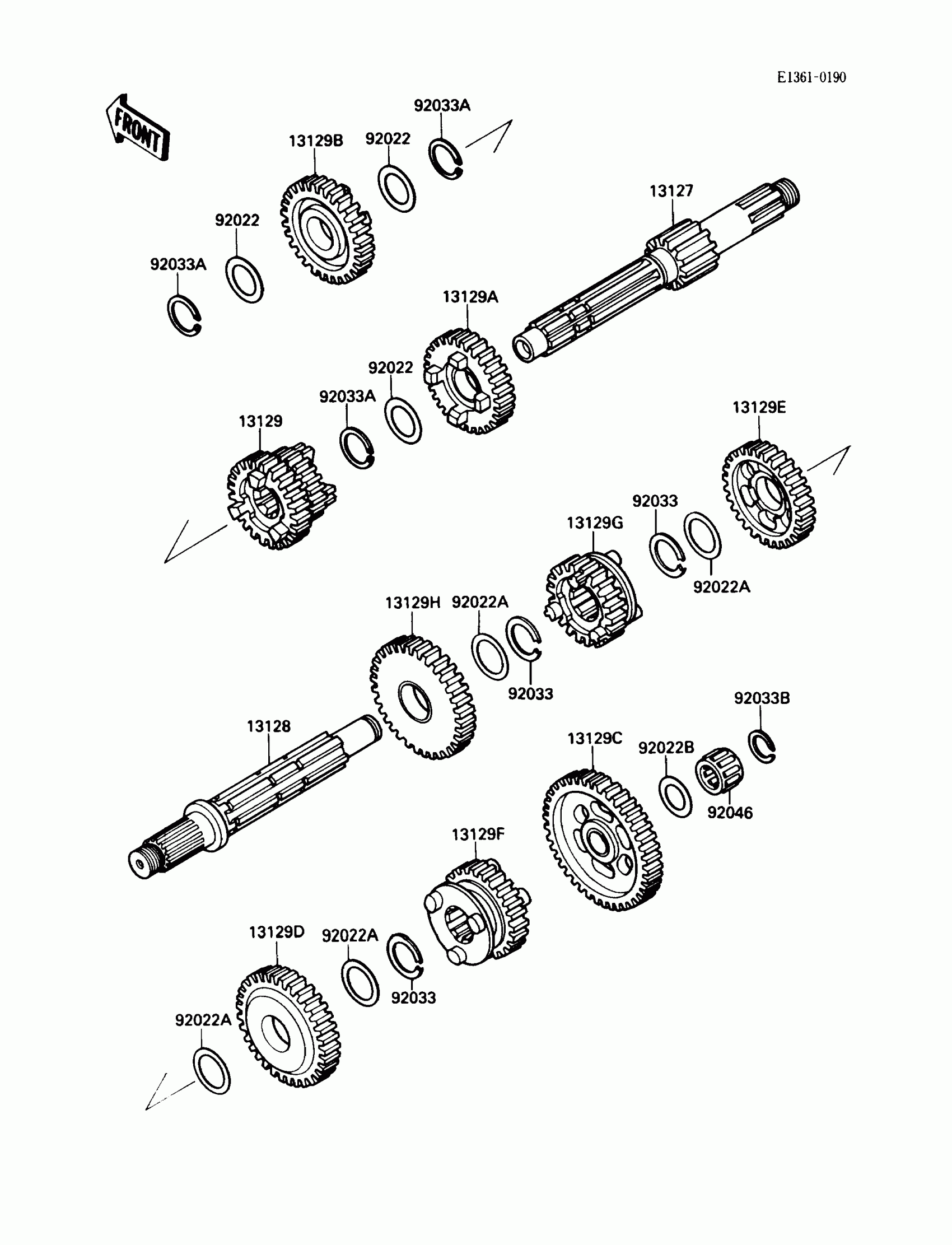

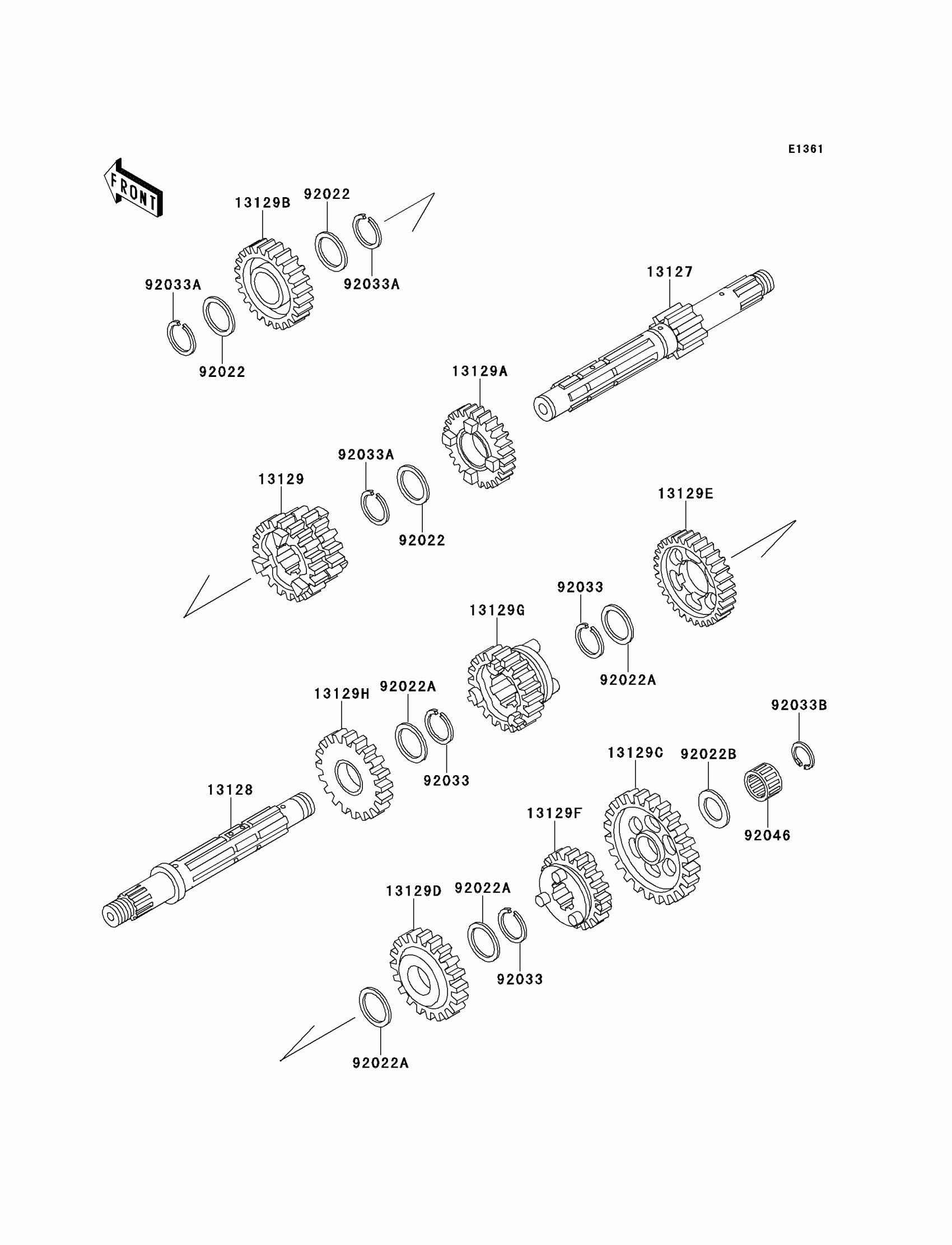

Kawasaki Bayou 220 Transmission Diagram

SHAFT-TRANSMISSION INPUT,13T

SHAFT-TRANSMISSION OUTPUT

GEAR,INPUT 2ND&3RD,23T&19T

GEAR,INPUT 4TH,26

GEAR,INPUT TOP,28T

GEAR,OUTPUT LOW,38T

GEAR,OUTPUT 2ND,32T

GEAR,OUTPUT 3RD,27T

GEAR,OUTPUT 4TH,24T

GEAR,OUTPUT TOP,22T

GEAR,REVERSE,33T

WASHER,20.3X28.0X0.5

WASHER,22.3X27X0.5

WASHER,THRUST,15MM

RING-SNAP,20X25.5X1.2

RING-SNAP,18MM

RING-SNAP,14X17.5X1.2

BEARING-NEEDLE,K15X21X15
