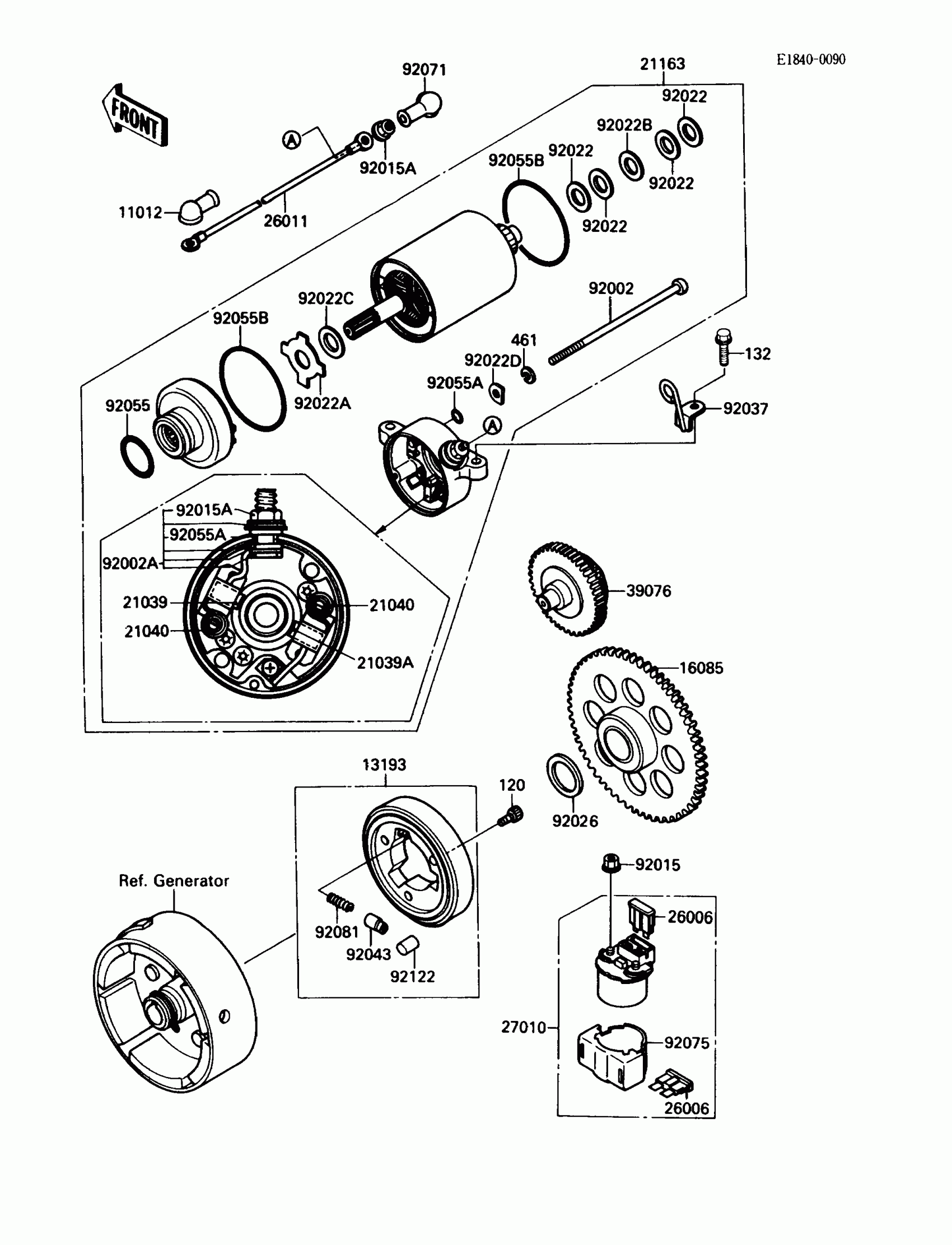

Kawasaki Bayou 220 Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,8X14

120P0814

$4.35

132

BOLT-FLANGED-SMALL,6X25

132Y0625

$5.02

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49

11012

CAP,TERMINAL

11012-1354

$10.19

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

16085

GEAR,ONEWAY CLUTCH

16085-1198

$129.23

21039

BRUSH,CARBON(+)

21039-1001

$34.49

21039A

BRUSH,CARBON(-)

21039-1056

$34.49

21040

SPRING-BRUSH

21040-1053

$10.33

21163

STARTER-ELECTRIC

21163-1130

$494.47

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26011

WIRE-LEAD,STARTER

26011-1417

$64.96

27010

SWITCH

27010-1243

Unavailable

39076

LIMITER,STARTER IDLE

39076-1060

$187.61

92002

BOLT,STARTER

92002-1818

Unavailable

92002A

BOLT,TERMINAL

92002-1819

$33.69

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92022A

WASHER,THRUST SUPPORT

92022-1130

Unavailable

92022B

WASHER,9.1X18X0.8

92022-1132

$6.22

92022C

WASHER,22X12.2X0.5

92022-1714

Unavailable

92022D

WASHER,LOCK

92022-1825

Unavailable

92026

SPACER,22X35.5X1.0

92026-092

$12.48

92037

CLAMP

92037-1962

$10.05

92043

PIN

92043-132

$6.22

92055

RING-O

92055-1303

$11.79

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O

92055-1418

$11.79

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92075

DAMPER,MAGNETIC SWITCH

92075-1863

Unavailable

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22
