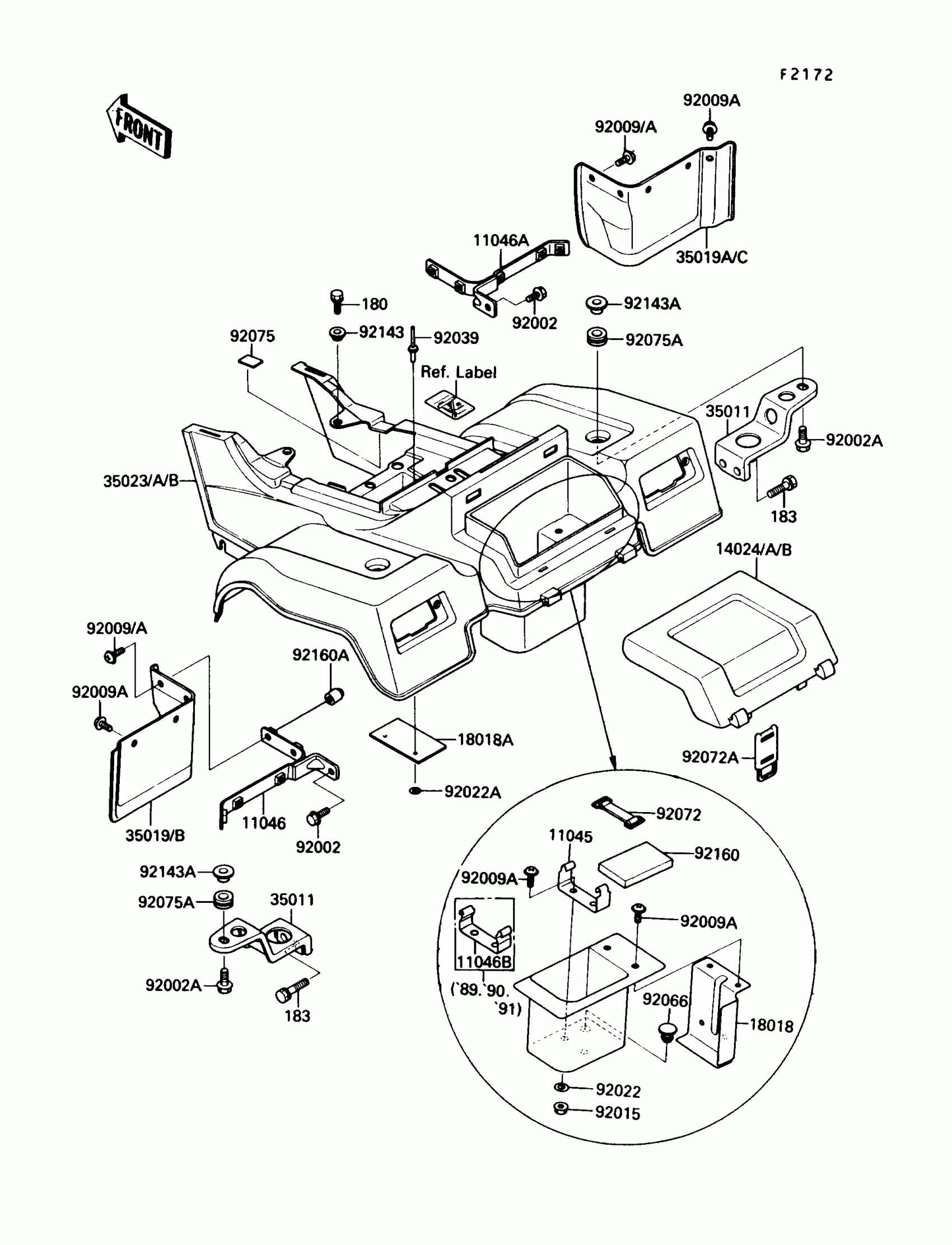

Kawasaki Bayou 220 Rear Fender Diagram
#
Description
Price
180
BOLT-UPSET-WS
180D0618
Unavailable
183
BOLT-UPSET-WS-SMALL
183J0814
$4.73
11046
BRACKET,REAR FLAP,LH
11045-1731
$28.36
11046A
BRACKET,REAR FLAP,RH
11045-1732
$28.36
11046B
BRACKET,TOOL BAND
11046-1451
$8.38
14024
COVER,REAR FENDER,BLACK
14024-1477-6D
$30.64
14024B
COVER,REAR FENDER,F.RED
14024-1477-6L
$34.45
18018
PLATE-HEAT GUARD
18018-1075
$26.92
18018A
PLATE-HEAT GUARD
18018-1079
$9.35
35011
STAY,REAR FENDER
35011-1363
$28.62
35019B
FLAP,RR,LH
35019-1253
$24.40
35019C
FLAP,RR,RH
35019-1254
$24.40
35023
FENDER-REAR,BLACK
35023-1196-6D
Unavailable
35023B
FENDER-REAR,F.RED
35023-1196-6L
Unavailable
92002
BOLT,6X14
92002-1351
$4.31
92002A
BOLT,8X25
92002-1591
$5.00
92009
SCREW,6X22,BLACK
92009-1256
$2.78
92009A
SCREW,6X14
92009-1288
$3.92
92015
NUT,FLANGED,6MM,BLACK
92015-1237
$5.52
92022
WASHER,6.5X20X1.6
92022-1804
$1.40
92022A
WASHER
92022-4017
$0.82
92039
RIVET,POP
92039-4006
$1.36
92066
PLUG,11X3.2
92074-038
$7.22
92072
BAND
92072-1085
$18.15
92072A
BAND
92072-1227
$7.29
92075
DAMPER
92075-1830
$5.59
92075A
DAMPER
92075-1898
$4.69
92143
COLLAR,L=6.5
92143-1025
$6.22
92143A
COLLAR,MUFFLER FITTING
92143-1069
$10.28
92160
DAMPER,TOOL KIT
92160-1076
$8.24
92160A
DAMPER
92160-1111
$4.06
