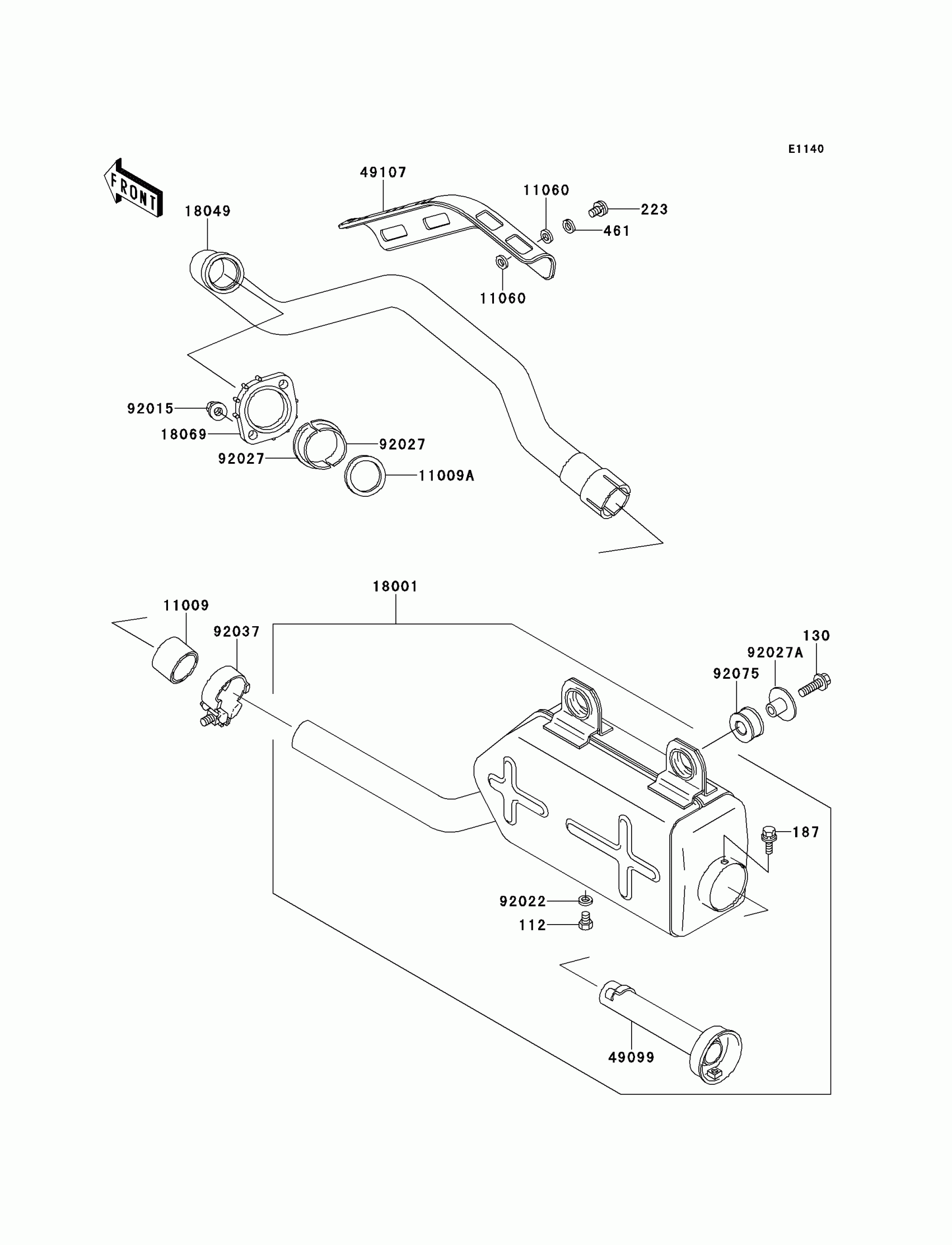

Kawasaki Bayou 220 Muffler(s) Diagram

#

Description
Price

112

BOLT-UPSET,6X8

112B0608

Unavailable

130

BOLT-FLANGED,8X30

130J0830

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132J0610

Unavailable

187

BOLT 6X12

187B0612

Unavailable

461

WASHER-SPRING,6MM,BLACK

461K0600

Unavailable

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$22.08

11009A

GASKET,EXHAUST PIPE H

11009-1866

$6.29

11060

GASKET,6.2X11.5X1.5

11060-1109

$3.49

18001

MUFFLER

18001-1667

$377.85

18049

PIPE-EXHAUST

18049-1415

$112.68

18069

HOLDER-EXHAUST PIPE

18069-1078

$22.09

49099

BAFFLE-PIPE MUFFLER

49099-1249

$107.45

49107

COVER-EXHAUST PIPE

49107-1074

$37.82

92015

NUT,6MM

92015-1365

$3.81

92022

WASHER,6.2X11X1

92022-304

$2.76

92027

COLLAR,L=14.5

92027-1142

$3.81

92027A

COLLAR,MUFFLER

92027-1981

$8.19

92037

CLAMP

92037-1956

$16.80

92075

DAMPER,MUFFLER

92075-1809

$6.39
