1991 Kawasaki Bayou 220 Fuel Tank Diagram

← All diagrams

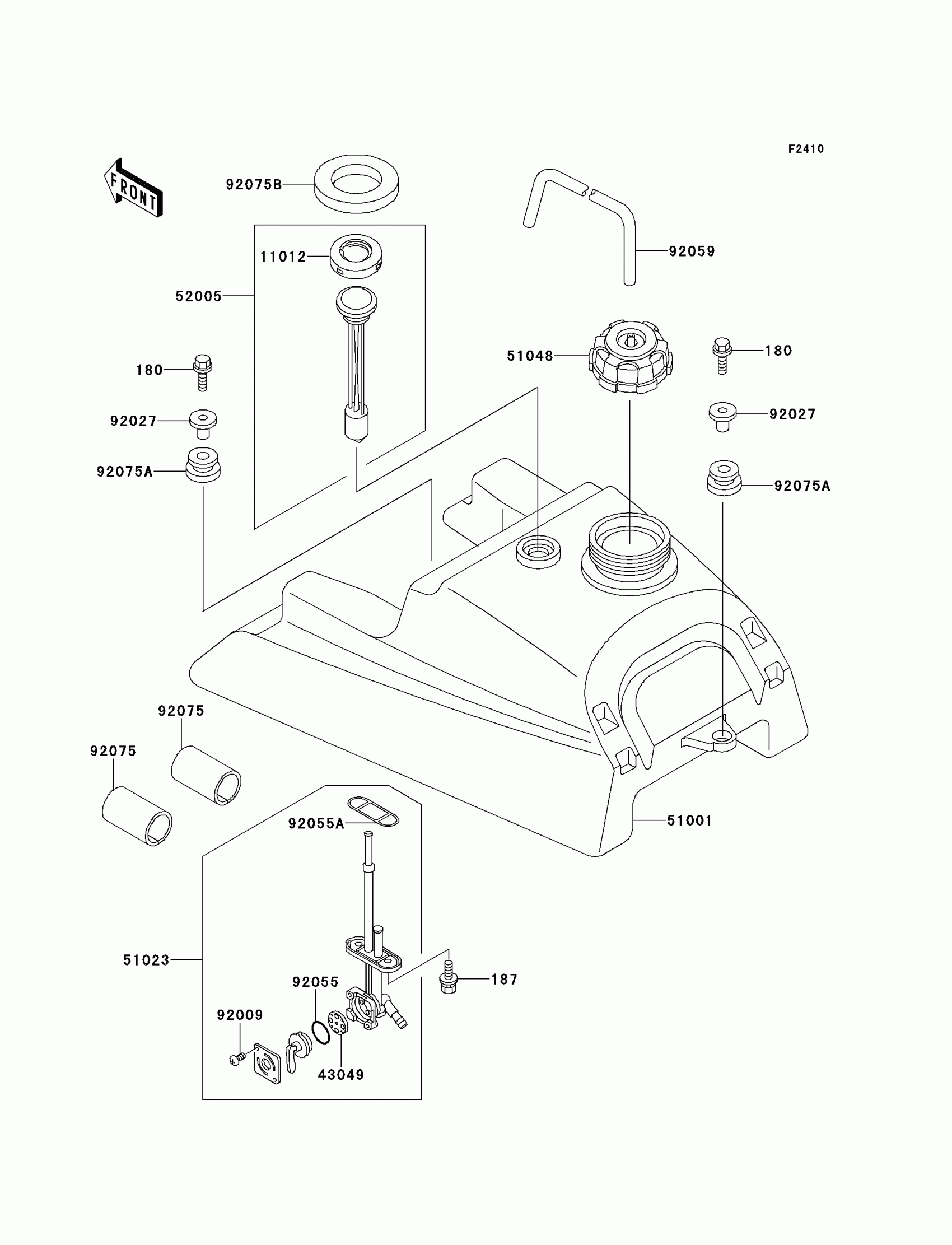

Find the part on the Fuel Tank diagram for your 1991 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Bayou 220 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS,6X25

180D0625

1
Out of stock

187

BOLT 6X14

187B0614

1
Out of stock

11012

CAP,FUEL GAUGE

11012-1627

1
Out of stock

43049

PACKING,FUEL TAP LEVER

43049-1017

1
Out of stock

51001

TANK-COMP-FUEL

51001-1272

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1141

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-1090

1
Out of stock

52005

GAUGE,FUEL

52005-1086

1
Out of stock

92009

SCREW,3X5

92009-1123

1
Out of stock

92027

COLLAR,L=16.1

92027-1847

1
Out of stock

92055

RING-O,FUEL TAP LEVER

92055-1111

1
Out of stock

92055A

RING-O,FUEL TAP PACKING

92055-1348

1
Out of stock

92059

TUBE,5X9.4X250

92059-1967

1
Out of stock

92075

DAMPER,FUEL TANK,FR,UNDER

92075-1369

1
Out of stock

92075A

DAMPER

92075-1787

1
Out of stock

92160

DAMPER,42.5X70X8.5

92075-1988

1
Out of stock
