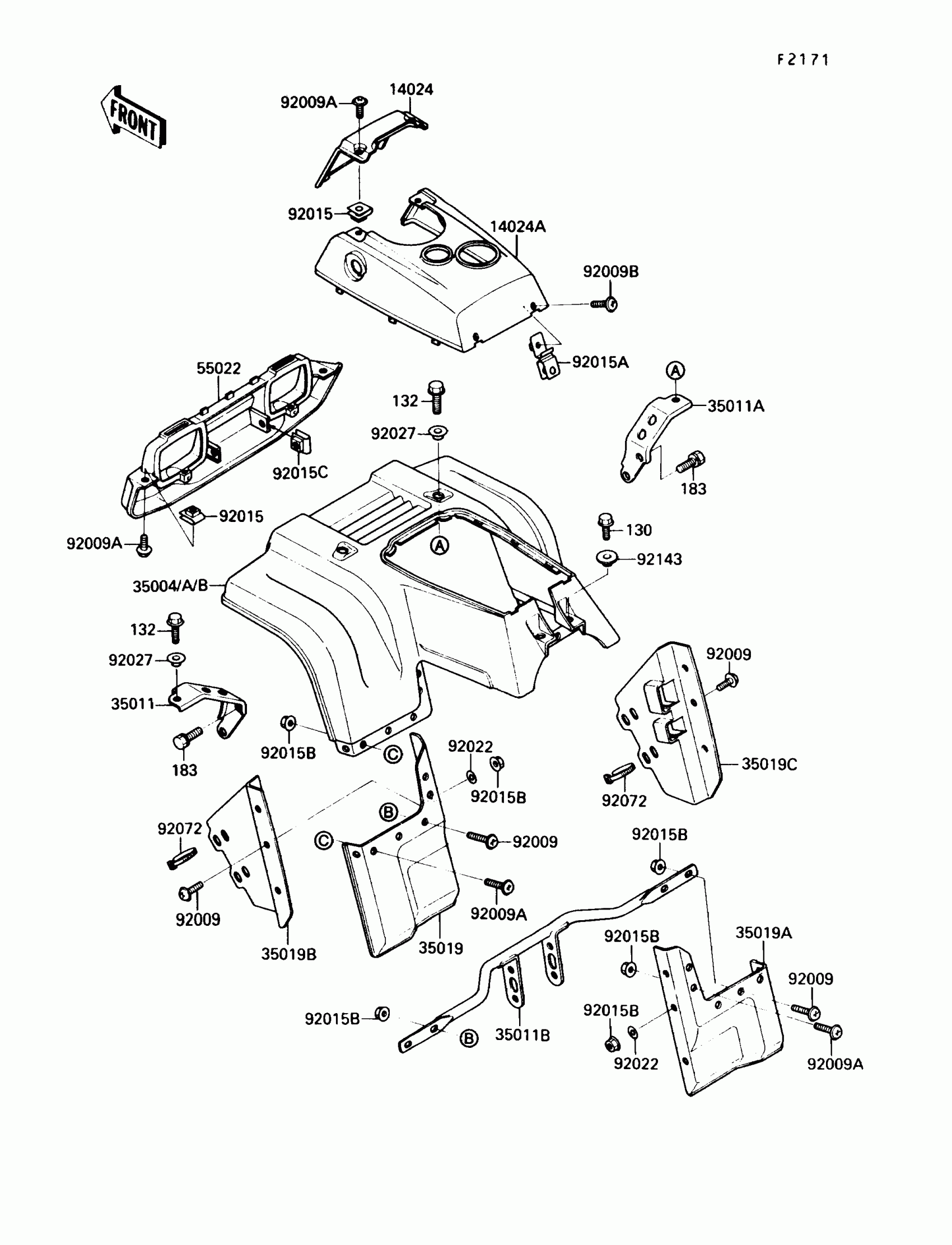

Kawasaki Bayou 220 Front Fender Diagram
#
Description
Price
130
BOLT-FLANGED,6X16
130C0616
$0.63
132
BOLT-FLANGED-SMALL,8X20
132J0820
$3.84
183
BOLT-UPSET-WS-SMALL
183J0814
$4.73
14024
COVER,FRONT FENDER,FR,BLACK
14024-1475-6D
$24.82
14024A
COVER,FRONT FENDER,RR,BLACK
14024-1476-6D
$24.82
35004
FENDER-FRONT,BLACK
35004-1207-6D
Unavailable
35004B
FENDER-FRONT,F.RED
35004-1207-6L
Unavailable
35011
STAY,FRONT FENDER,LH
35011-1361
$19.59
35011A
STAY,FRONT FENDER,RH
35011-1362
$19.59
35011B
STAY,FRONT FLAP
35011-1368
$48.49
35019
FLAP,FR,LH
35019-1195
$24.40
35019A
FLAP,FR,RH
35019-1196
Unavailable
35019B
FLAP,FR,INSIDE,LH
35019-1197
$17.61
35019C
FLAP,FR,INSIDE,RH
35019-1198
$17.61
55022
COVER-HEAD LAMP,BLACK
55022-1060-6D
$60.28
92009
SCREW,6X18,BLACK
92009-1181
$2.80
92009A
SCREW,6X14
92009-1288
$3.92
92009B
SCREW,6X10
92009-1402
$2.41
92015
NUT,6MM
92015-1094
$8.58
92015A
NUT,PLATE
92015-1667
$11.37
92015B
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92015C
NUT,CLIP,8MM
92015-1691
$8.80
92022
WASHER,6.5X20X1.6
92022-1557
$1.40
92027
COLLAR
92027-1908
$8.58
92072
BAND,L=149
92072-031
$5.00
92143
COLLAR,L=6.5
92143-1025
$6.22
