Description

Price

11009

GASKET,10.5X16X1

92065-058

$3.96

11012

CAP

11012-1593

$158.84

11021

CASE-ASSY,FRONT BEVEL

11021-1069

$322.62

13216

GEAR-COMP,FINAL

13216-1122

Unavailable

31064

PIPE-COMP,FR

31064-1087

$140.09

41046

HOUSING-BEARING

41046-1084

$111.55

42034

COUPLING,DIFFERENTIAL CASE

42034-1078

$130.39

49006

BOOT,DRIVE SHAFT

49006-1240

$26.39

49022

GEAR-BEVEL,10T

49022-1097

$242.10

59266

JOINT-BALL,DRIVE SHAFT

59266-1069

$562.94

92002

BOLT,16X10

92002-1238

$8.80

92009

SCREW

92009-1475

$32.24

92015

NUT,12MM

92015-1182

$7.83

92015A

NUT,8MM

92015-1402

$4.69

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,12.3X25X3.2

92022-1293

$6.61

92025A

SHIM,35.3X46X1.00

92025-1849

Unavailable

92025B

SHIM,35.3X46X0.10

92025-1850

Unavailable

92025C

SHIM,35.3X46X0.15

92025-1851

Unavailable

92025D

SHIM,35.3X46X0.50

92025-1856

Unavailable

92025E

SHIM,35.3X46X0.80

92025-1857

Unavailable

92025F

SHIM,T=1.00

92025-1864

Unavailable

92025G

SHIM,T=0.10

92025-1865

Unavailable

92025H

SHIM,T=0.15

92025-1866

Unavailable

92025I

SHIM,T=0.50

92025-1867

Unavailable

92025J

SHIM,T=0.80

92025-1868

Unavailable

92028

BUSHING

92028-1501

$24.61

92033

RING-SNAP,14X17.5X1.2

92033-1234

$4.96

92037

CLAMP

92037-1523

$12.35

92045

BEARING-BALL

92045-1110

$34.63

92045A

BEARING-BALL

92045-1112

$32.04

92046

BEARING-NEEDLE,K15X21X15

92046-1173

$22.69

92049

SEAL-OIL

92049-1231

$15.93

92055

RING-O,17.5X1.5

92055-022

$6.22

130

BOLT-FLANGED,6X8

130B0608

$0.67

130A

BOLT-FLANGED

130P0825

$1.42

172

BOLT-STUD,8X25

172G0825

$3.70

671

"0" RING,30MM

671B2530

$5.05

92055A

RING-O,27MM

92055-1119

$5.00

92055B

RING-O,ID=13.8

92055-1141

$3.92

92055C

RING-O,154X3

92055-1165

$11.37

92055D

RING-O,59.6X2.4

92055-3018

$6.22

92066

PLUG

92066-1284

$14.54

92066A

PLUG,DRAIN,10X12

92067-001

$4.41

92144

SPRING,DRIVE SHAFT

92144-1235

$7.76

92170

CLAMP

92170-1149

$11.37

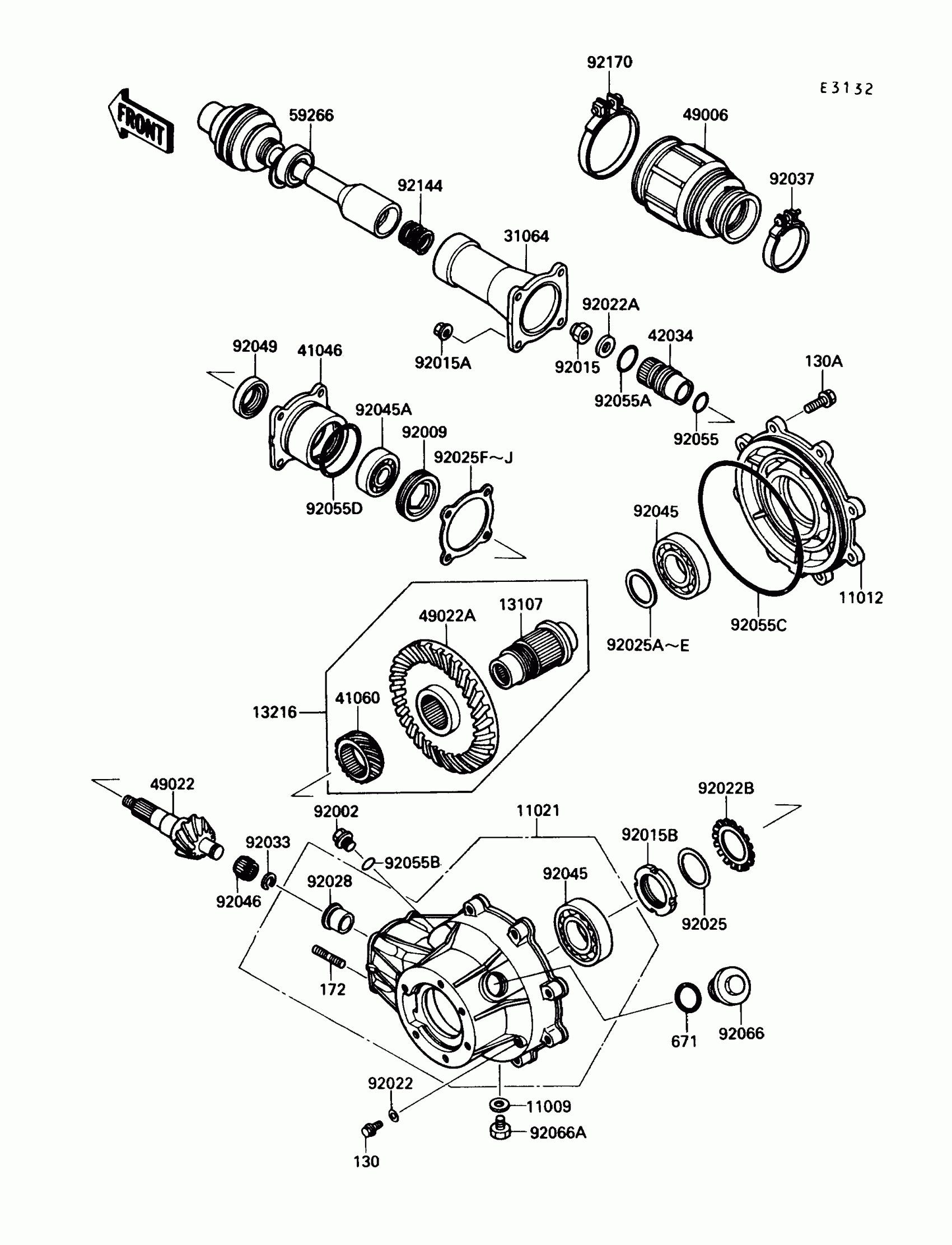

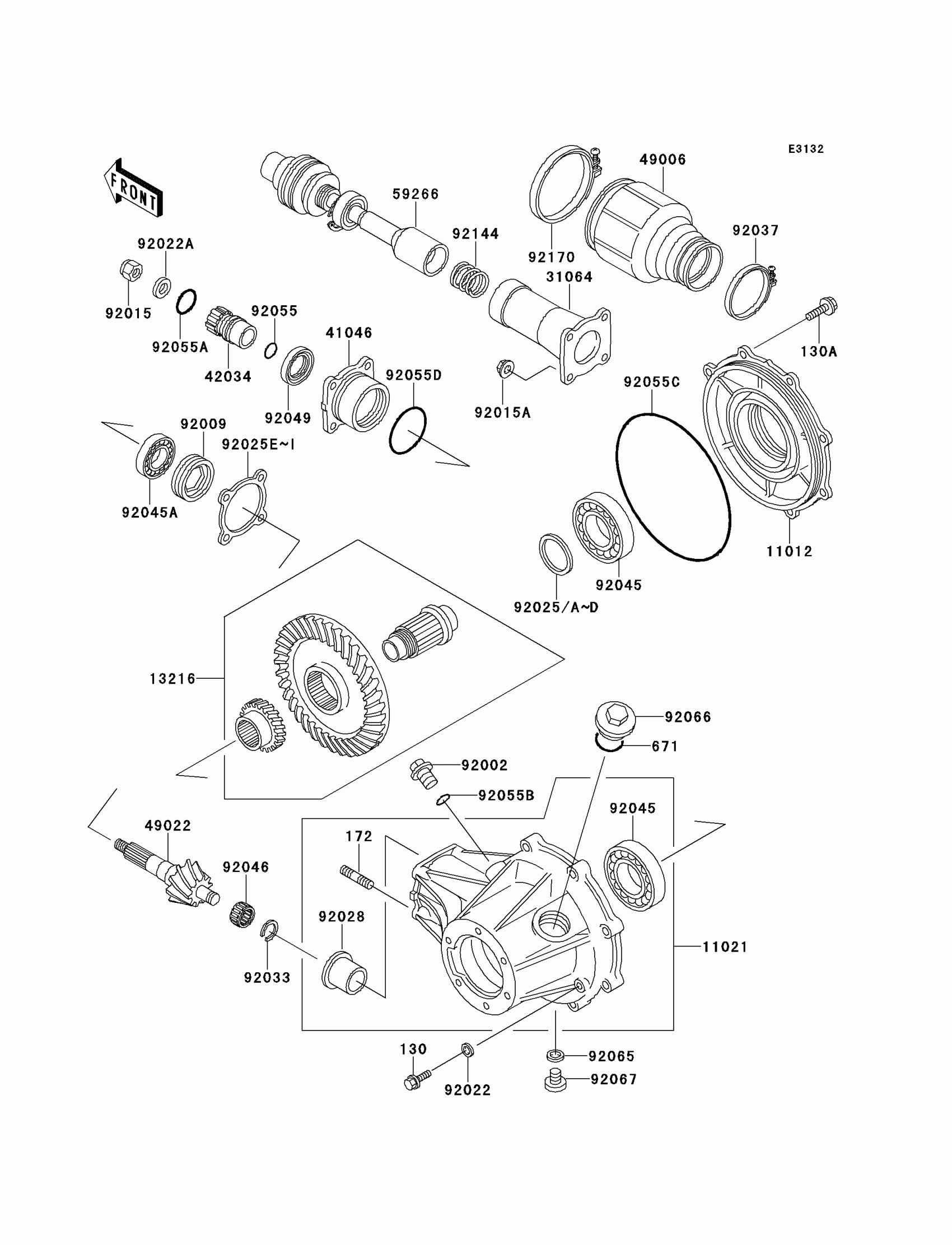

Kawasaki Bayou 220 Drive Shaft/Final Gear Diagram

GASKET,10.5X16X1

CAP

CASE-ASSY,FRONT BEVEL

GEAR-COMP,FINAL

PIPE-COMP,FR

HOUSING-BEARING

COUPLING,DIFFERENTIAL CASE

BOOT,DRIVE SHAFT

GEAR-BEVEL,10T

JOINT-BALL,DRIVE SHAFT

BOLT,16X10

SCREW

NUT,12MM

NUT,8MM

WASHER OIL PUMP BANJO

WASHER,12.3X25X3.2

SHIM,35.3X46X1.00

SHIM,35.3X46X0.10

SHIM,35.3X46X0.15

SHIM,35.3X46X0.50

SHIM,35.3X46X0.80

SHIM,T=1.00

SHIM,T=0.10

SHIM,T=0.15

SHIM,T=0.50

SHIM,T=0.80

BUSHING

RING-SNAP,14X17.5X1.2

CLAMP

BEARING-BALL

BEARING-BALL

BEARING-NEEDLE,K15X21X15

SEAL-OIL

RING-O,17.5X1.5

BOLT-FLANGED,6X8

BOLT-FLANGED

BOLT-STUD,8X25

"0" RING,30MM

RING-O,27MM

RING-O,ID=13.8

RING-O,154X3

RING-O,59.6X2.4

PLUG

PLUG,DRAIN,10X12

SPRING,DRIVE SHAFT

CLAMP
