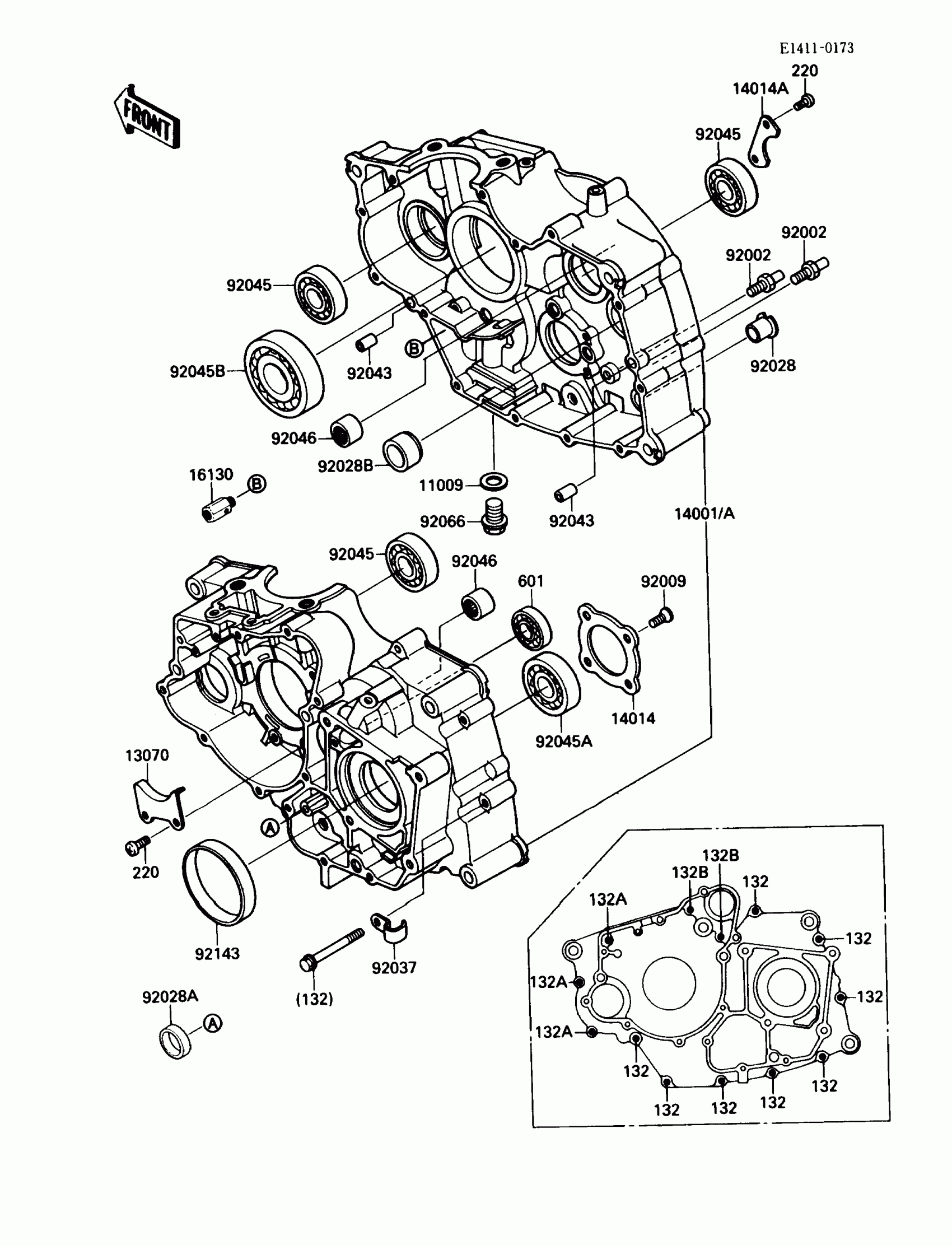

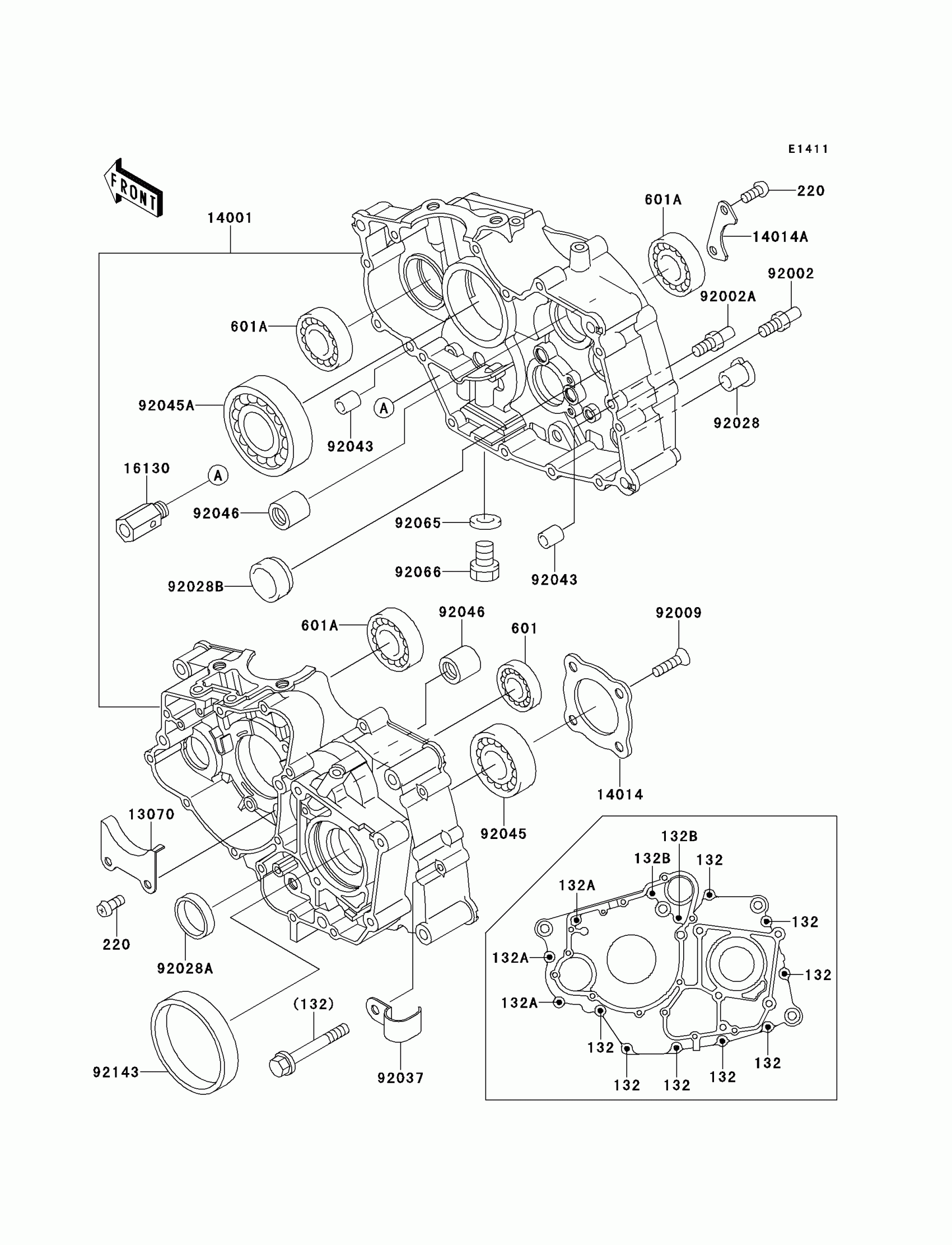

Kawasaki Bayou 220 Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X40

132Y0640

$4.80

132A

BOLT-FLANGED-SMALL,6X60

132Y0660

$4.89

132B

BOLT-FLANGED-SMALL

132Y0675

$5.55

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

601

BEARING-BALL

601A6202Z

$18.46

601A

BEARING-BALL,#6204

601A6204

$12.90

13070

GUIDE,CAM CHAIN

13070-1176

$5.83

14001

SET-CRANKCASE,W/PLUG

14001-5323

Unavailable

14014

PLATE-POSITION

14014-1086

$19.11

14014A

PLATE-POSITION

14014-1088

$7.83

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

92002

BOLT,SOCKET,4X8

92002-1408

$6.61

92009

SCREW,6X14

92009-1349

$4.18

92028

BUSHING

92028-1386

$17.40

92028A

BUSHING,14X16X15

92028-1505

$9.36

92028B

BUSHING

92028-1506

$23.83

92037

CLAMP

92037-1939

$6.61

92043

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,TMB304CCM

92045-1142

$40.43

92045A

BEARING-BALL

92045-1172

$48.87

92046

BRG,NEEDLE,HMK1515B

92046-060

$18.53

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92143

COLLAR,66X70X11

92143-1120

$18.89

92150

BOLT,RETURN SPRING

92150-1467

$7.45
