1996 Kawasaki Bayou 220 Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 1996 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

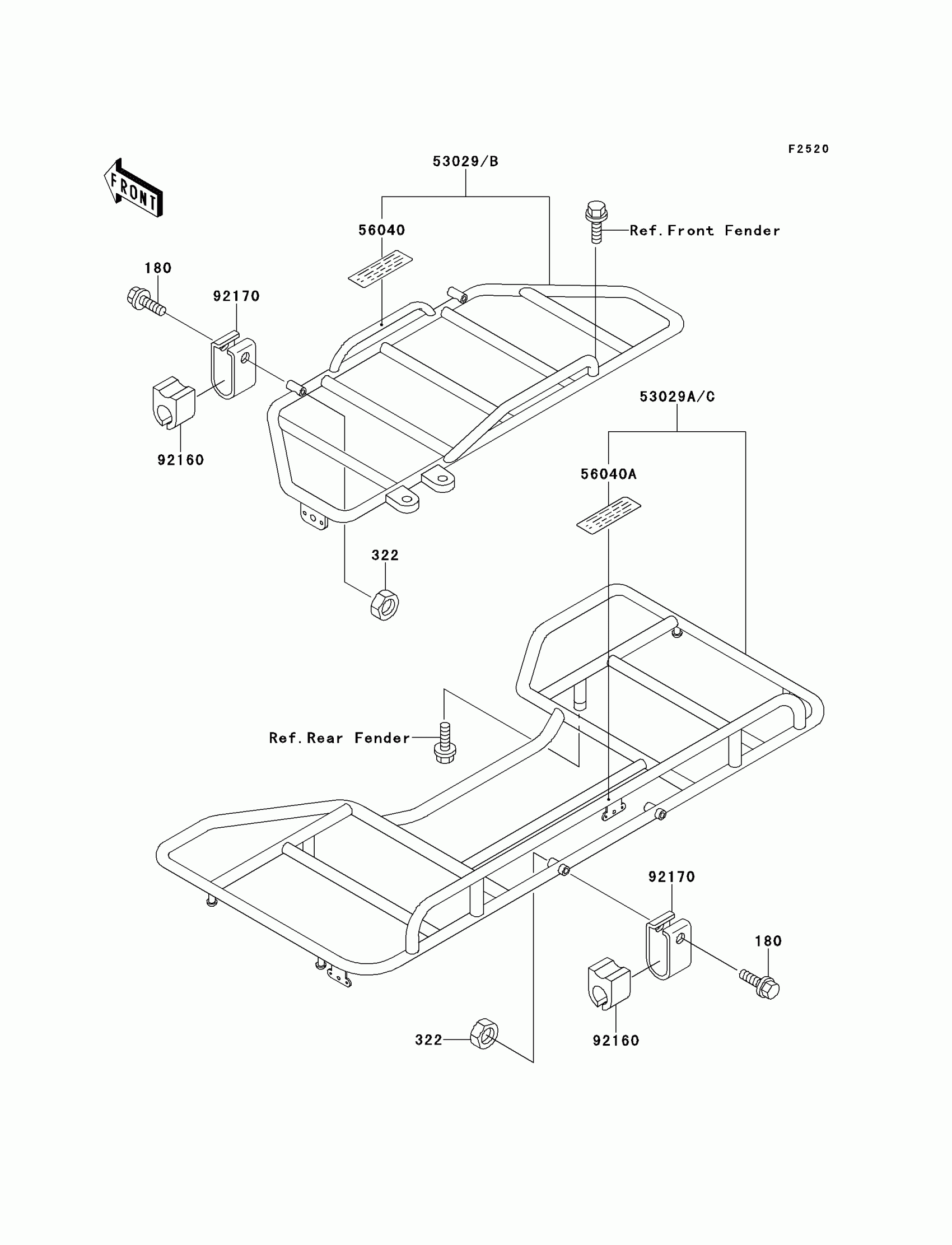

1996 Kawasaki Bayou 220 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS

180J0640

1
Out of stock

322

NUT-CAP,6MM,BLACK

322C0600

1
Out of stock

56040

LABEL-WARNING,MAXIMUM LOAD

56040-1264

1
Out of stock

56040A

LABEL-WARNING,MAXIMUM LOAD

56040-1265

1
Out of stock

92160

DAMPER

92160-1112

1
Out of stock

92170

CLAMP

92170-1075

1
Out of stock

53029

CARRIER,FR

53029-1113

1
Out of stock

53029A

CARRIER,RR

53029-1114

1

$264.82

In stock

53029B

CARRIER,FR

53029-1118

1

$100.01

In stock

53029C

CARRIER,RR

53029-1119

1

$155.61

In stock
