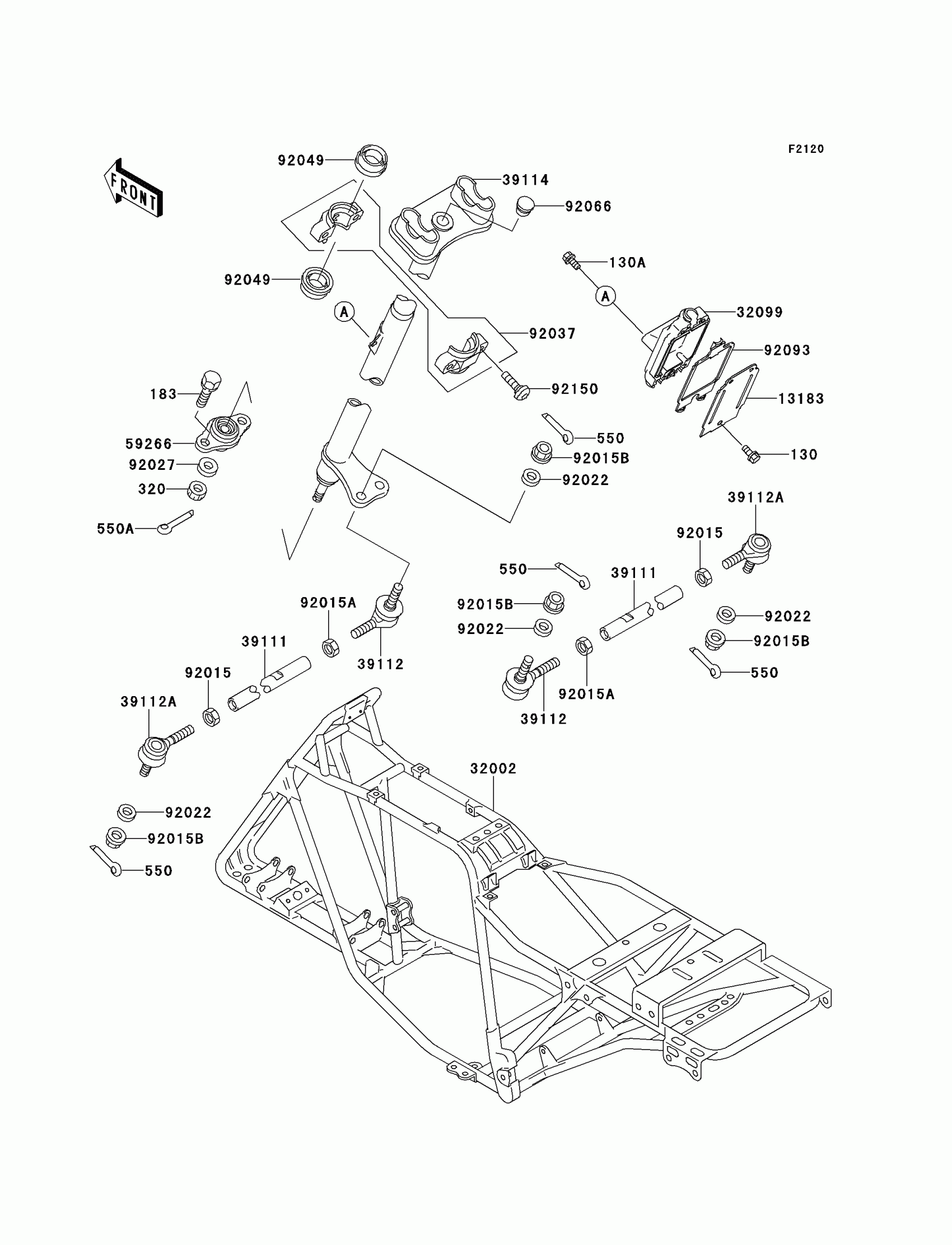

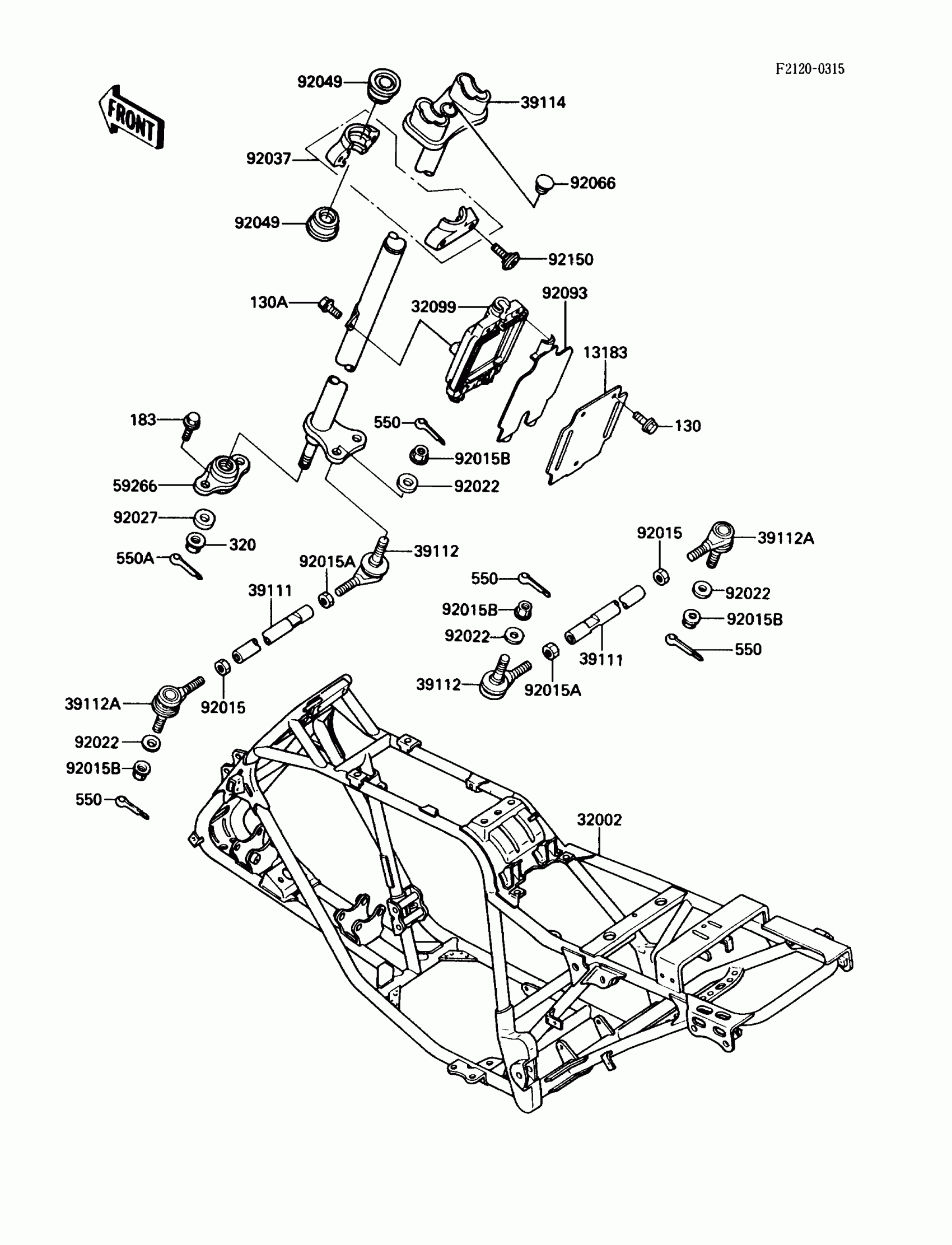

Kawasaki Bayou 220 Frame Diagram

#

Description
Price

130

BOLT-FLANGED,5X12

130G0512

Unavailable

130A

BOLT-FLANGED,6X12

130G0612

Unavailable

183

BOLT-UPSET-WS-SMALL

183G0822

Unavailable

320

NUT-CASTLE

320H1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.5X18

550D2518

$0.61

13183

PLATE,EQUALIZER CASE

13183-1148

$11.92

32002

FRAME-COMP

32002-1957

Unavailable

32099

CASE,EQUALIZER

32099-1101

$45.31

39111

ROD-TIE

39111-1076

$29.89

39112

RODEND-TIE

39112-1063

$94.55

39112A

RODEND-TIE

39112-1064

$94.55

39114

SHAFT-COMP-STRG

39114-1065

$153.76

59266

JOINT-BALL

59266-1066

$144.36

92015

NUT,LOCK,10MM

92015-1460

$5.66

92015A

NUT,LOCK,10MM

92015-1494

$5.42

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92022

WASHER,10.5X20X1

92022-239

$2.99

92027

COLLAR,10X21.3X7

92027-1817

$14.34

92037

CLAMP,STEERING SHAFT

92037-1975

$70.85

92049

SEAL-OIL,SR7 25 34 7.8 NS

92049-1278

$5.58

92066

PLUG

92066-1220

$4.39

92093

SEAL,EQUALIZER CASE

92093-1246

$11.04

92150

BOLT

92150-1058

$5.58
