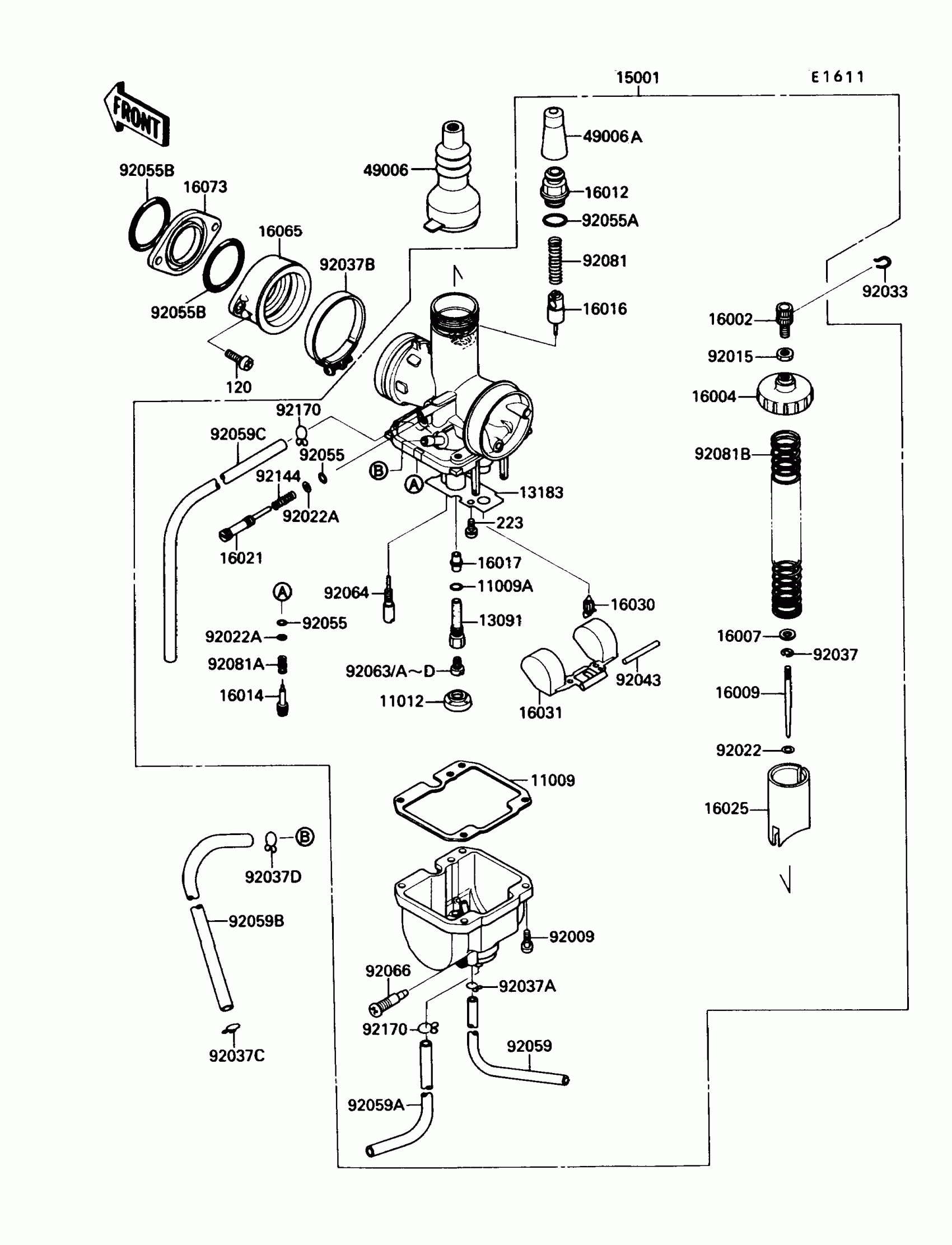

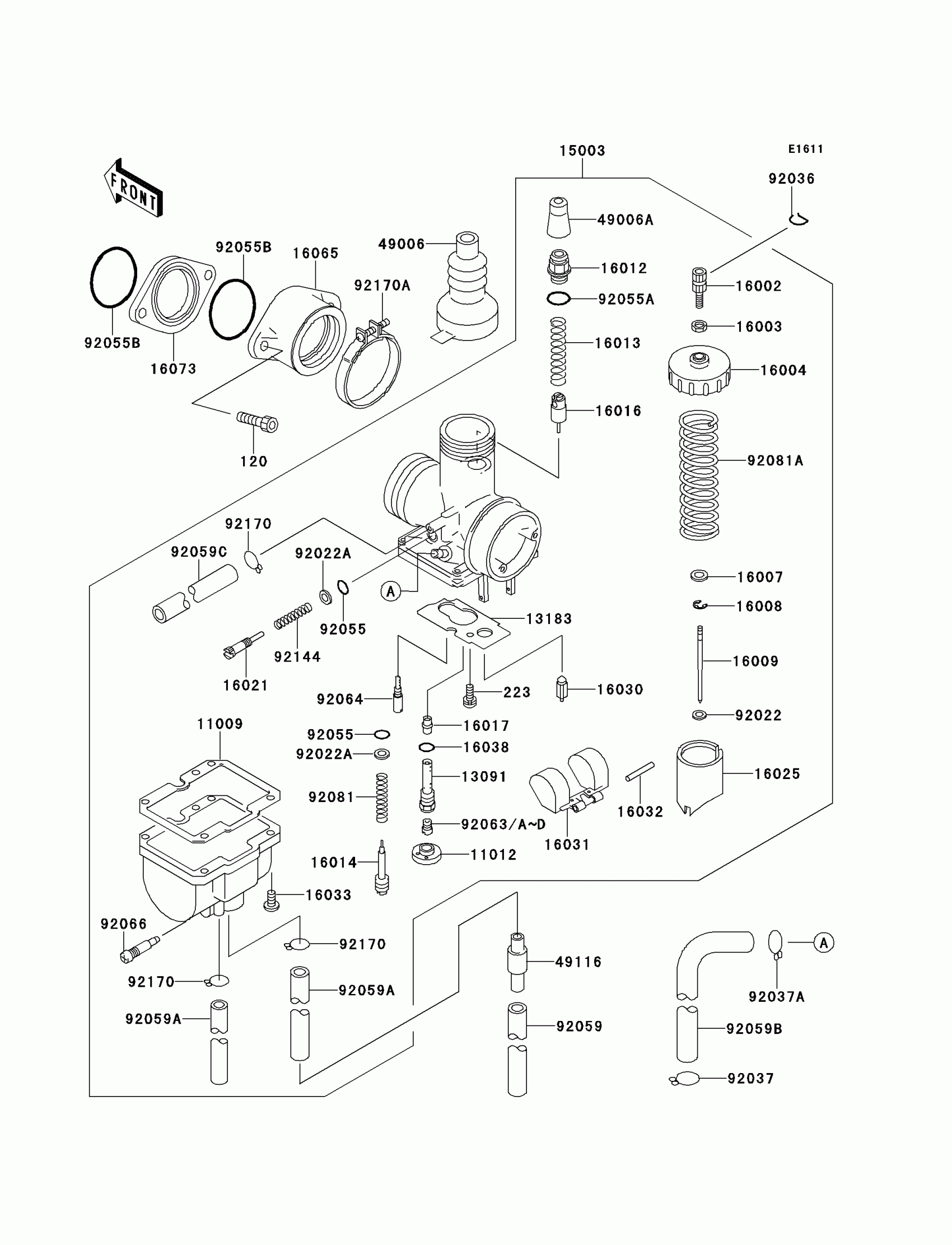

Kawasaki Bayou 220 Carburetor Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1676

$17.74

11009A

"0" RING,MAIN JET COV

16038-016

$3.02

11012

CAP

11012-1659

$27.80

13091

HOLDER,NEEDLE JET

13091-1551

Unavailable

13183

PLATE

13183-1273

$22.40

15001

CARBURETOR-ASSY

15001-1382

$531.56

16002

ADJUSTER-CABLE

16002-011

$13.97

16004

CAP-CHAMBER,MIXING

16004-1055

$34.18

16007

SEAT-SPRING,THROTTLE VALVE

16007-1111

$5.83

16009

NEEDLE-JET,5GN46-2

16009-1388

$41.78

16012

CAP-STARTER PLUNGER

16012-1056

$15.45

16014

SCREW-PILOT AIR

16014-1056

$18.24

16016

PLUNGER,STARTER

16016-1074

$65.10

16017

JET-NEEDLE,O-0

16017-1346

$54.82

16021

SCREW-THROTTLE STOP

16021-1126

$16.18

16025

VALVE-THROTTLE,CA3.0

16025-1150

$106.12

16030

VALVE-FLOAT,#1.5

16030-1066

$53.57

16031

FLOAT

16031-1055

$53.59

16065

HOLDER-CARBURETOR

16065-1157

$42.77

16073

INSULATOR

16073-1053

$10.56

49006

BOOT

49006-1230

$11.27

49006A

BOOT,STARTER PLUNGER

49006-1235

$11.27

92009

UNAVAILABLE IN PRICE BOOK

16033-013

$1.52

92015

NUT,ADJUST LOCK

16003-006

$7.34

92022

WASHER,THROTTLE VALVE

92022-1024

$6.61

92022A

WASHER,ADJUST SCREW

92022-1187

$6.22

92033

RING-SNAP

92036-018

$3.89

92037

CLAMP,E-TYPE

16008-010

$9.21

92037A

CLAMP-TUBE

92037-1043

Unavailable

92037B

CLAMP

92037-1326

$8.98

92037C

CLAMP,TUBE

92037-1531

$5.52

92037D

CLAMP

92037-1712

$5.00

92043

PIN,FLOAT

16032-003

$6.57

92055

RING-O,ADJUST SCREW

92055-1078

$6.27

92055A

RING-O,STARTER PLUNGER

92055-1242

$5.29

92055B

RING-O,32MM

92055-1256

$13.08

92059

TUBE,3X5X350

92059-1506

Unavailable

92059A

TUBE,5X8X350

92059-1843

$23.83

92059B

TUBE,4.5X9.5X225

92059-1889

$7.27

92059C

TUBE,6X8X650

92059-1937

$23.83

120

BOLT-SOCKET,6X20

120S0620

Unavailable

223

SCREW-PAN-WS-CROS

223B0308

$4.67

92063

MAIN JET,#110R

92063-074

$16.50

92063A

JET-MAIN NO 112.5R

92063-075

$15.42

92063B

JET-MAIN NO 115R

92063-076

$15.42

92063C

JET-MAIN NO 117.5R

92063-077

$17.74

92063D

MAIN JET NO 120R

92063-078

$18.50

92064

JET-PILOT,#30

92064-1157

Unavailable

92066

PLUG,DRAIN

92066-1171

$15.74

92081

SPRING-PLUNGER

16013-003

$6.16

92081A

SPRING,PILOT AIR SCREW

92081-1690

$6.16

92081B

SPRING,THROTTLE VALVE

92081-1691

$14.10

92144

SPRING,THROTTLE STOP SCREW

92144-1183

$5.46

92170

CLAMP

92170-1004

$4.60
