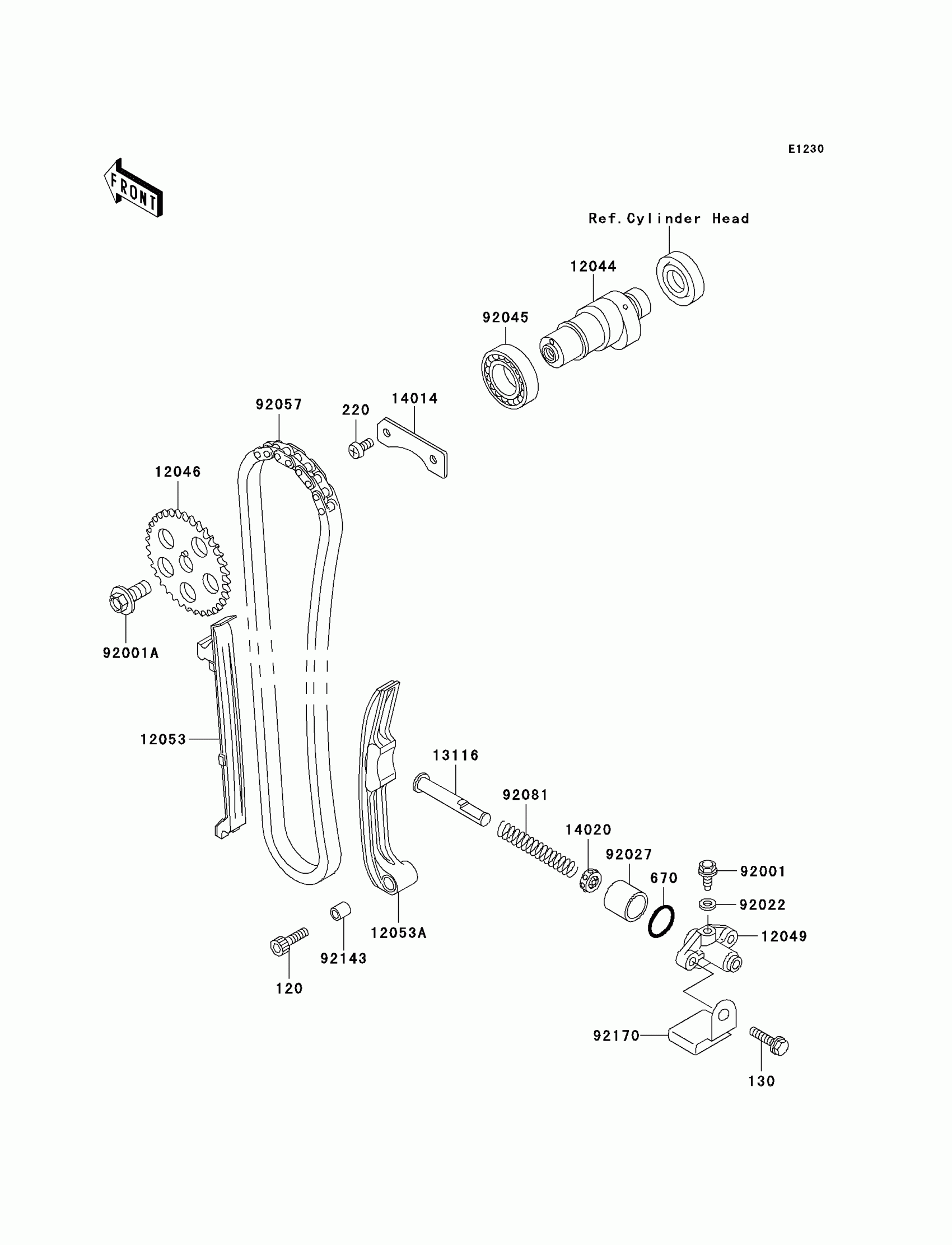

Kawasaki Bayou 220 Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT,SOCKET,6X22

120P0622

Unavailable

130

BOLT-FLANGED,6X25

130Y0625

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

670

O RING,21MM

670B2021

$3.57

12044

CAMSHAFT-VALVE

12044-1211

$164.49

12046

SPROCKET,CAM CHAIN

12046-1059

$27.04

12049

TENSIONER,CAM CHAIN

12049-1055

$47.04

12053

GUIDE-CHAIN,FR

12053-1224

$35.15

12053A

GUIDE-CHAIN,TENSIONER

12053-1225

$50.48

13116

ROD-PUSH

13116-1129

$14.56

14014

PLATE-POSITION

14014-1054

Unavailable

14020

RETAINER,TENSIONER

14020-1054

$18.34

92001

BOLT,TENSIONER ADJUST

92001-1155

$4.68

92001A

BOLT,10X23

92001-1859

$7.54

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92027

COLLAR,TENSIONER

92027-1273

$33.19

92045

BEARING-BALL,#6005C4

92045-1056

$19.69

92057

CHAIN,CAMSHAFT

92057-1380

Unavailable

92081

SPRING,TENSIONER

92081-1105

$4.07

92143

COLLAR,6X8X10.2

92143-1253

$5.07

92170

CLAMP

92170-1471

$4.68
